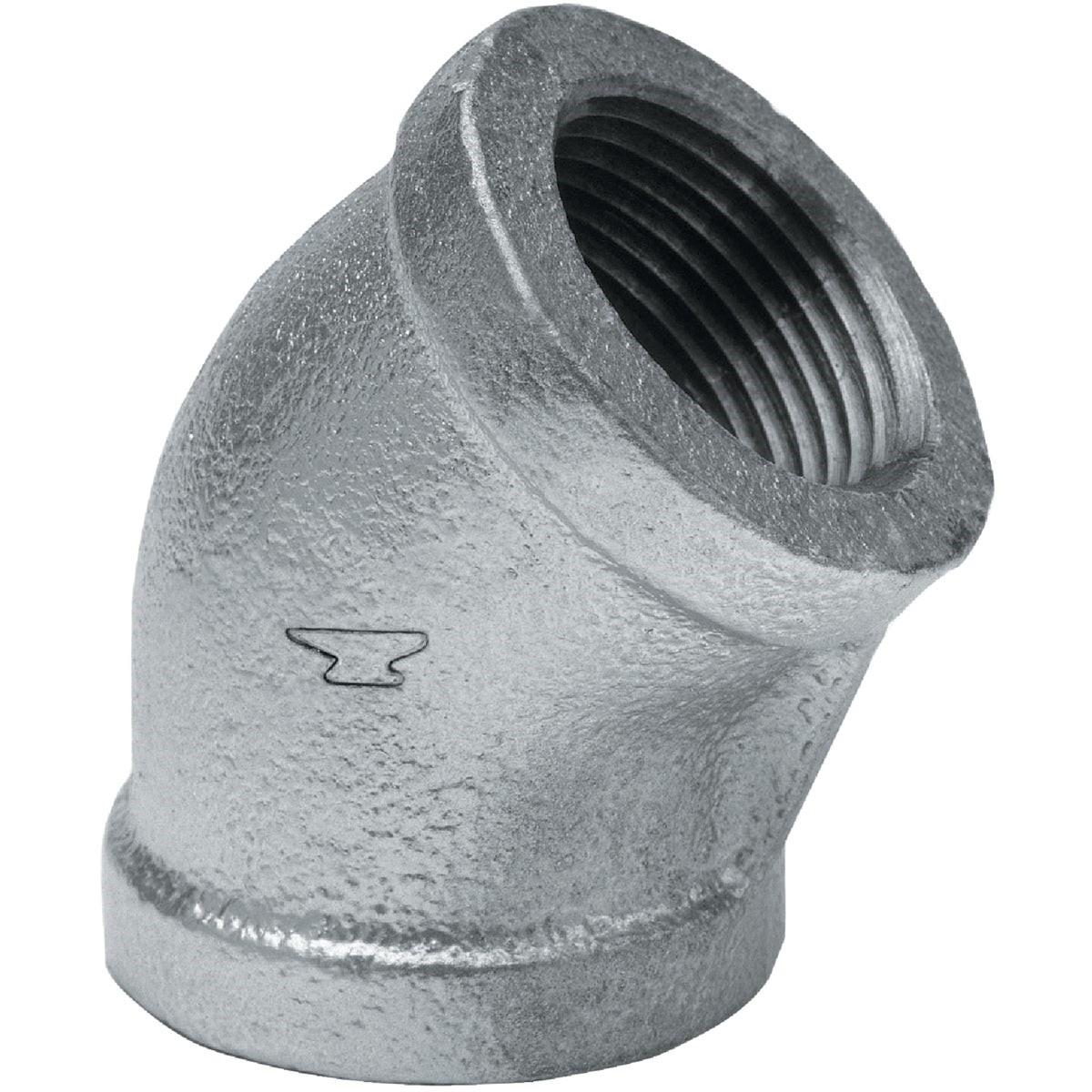

Asc 8700126553 3/8 in 45 Deg Galvanized Malleable Iron Elbow

Product Description

The ASC ENGINEERED SOLUTIONS 8700126553 is a 3/8-inch 45-degree galvanized malleable iron elbow, also referred to as a 1/8 bend fitting. It is designed to redirect pipe runs at a 45-degree angle in low-pressure piping systems. The flat banded body conforms to Federal Specification WW-P-521F, ANSI B-16.3 for dimensions, ANSI B-2.1 for pipe threads, and ASTM A-197 for chemical and physical properties. Constructed from malleable iron with a galvanized finish, this fitting offers corrosion resistance suited for standard threaded piping installations. Plumbers and pipefitters install this type of fitting in residential and light commercial applications.

This 45-degree elbow is used in threaded pipe assemblies where a gradual directional change is required. The galvanized malleable iron construction makes it appropriate for water supply, gas distribution, and general mechanical piping systems where iron fittings are specified. It is sold individually and is compatible with standard NPT-threaded pipe connections in 3/8-inch pipe size.

Key Features

• 45-degree bend angle for gradual directional changes in threaded pipe runs
• Galvanized malleable iron construction for corrosion resistance
• Flat banded body style per standard malleable iron fitting design
• Meets Federal Specification WW-P-521F
• Dimensions per ANSI B-16.3; threads per ANSI B-2.1
• Chemical and physical properties per ASTM A-197

Compatibility

Designed as a standard OEM-style replacement or new-installation fitting for 3/8-inch NPT threaded pipe systems using malleable iron fittings.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable local codes and the International Plumbing Code (IPC). Shut off and depressurize the pipe system completely before removing or installing any threaded fittings. Apply an approved thread sealant or PTFE tape to male threads before assembly. Do not over-tighten, as malleable iron fittings can crack under excessive torque.

Technical Specifications

• Pipe Size: 3/8 inches
• Bend Angle: 45 degrees
• Material: Malleable Iron
• Finish: Galvanized
• Weight: 0.187 pounds
• Federal Specification: WW-P-521F
• Dimension Standard: ANSI B-16.3
• Thread Standard: ANSI B-2.1
• Material Standard: ASTM A-197
• Sold As: Each

Standard Information

• Brand: ASC ENGINEERED SOLUTIONS
• Manufacturer Part Number: 8700126553
