Asc 8700124509 1/2x3/8 in 90 Deg Reducing Black Iron Elbow

Product Description

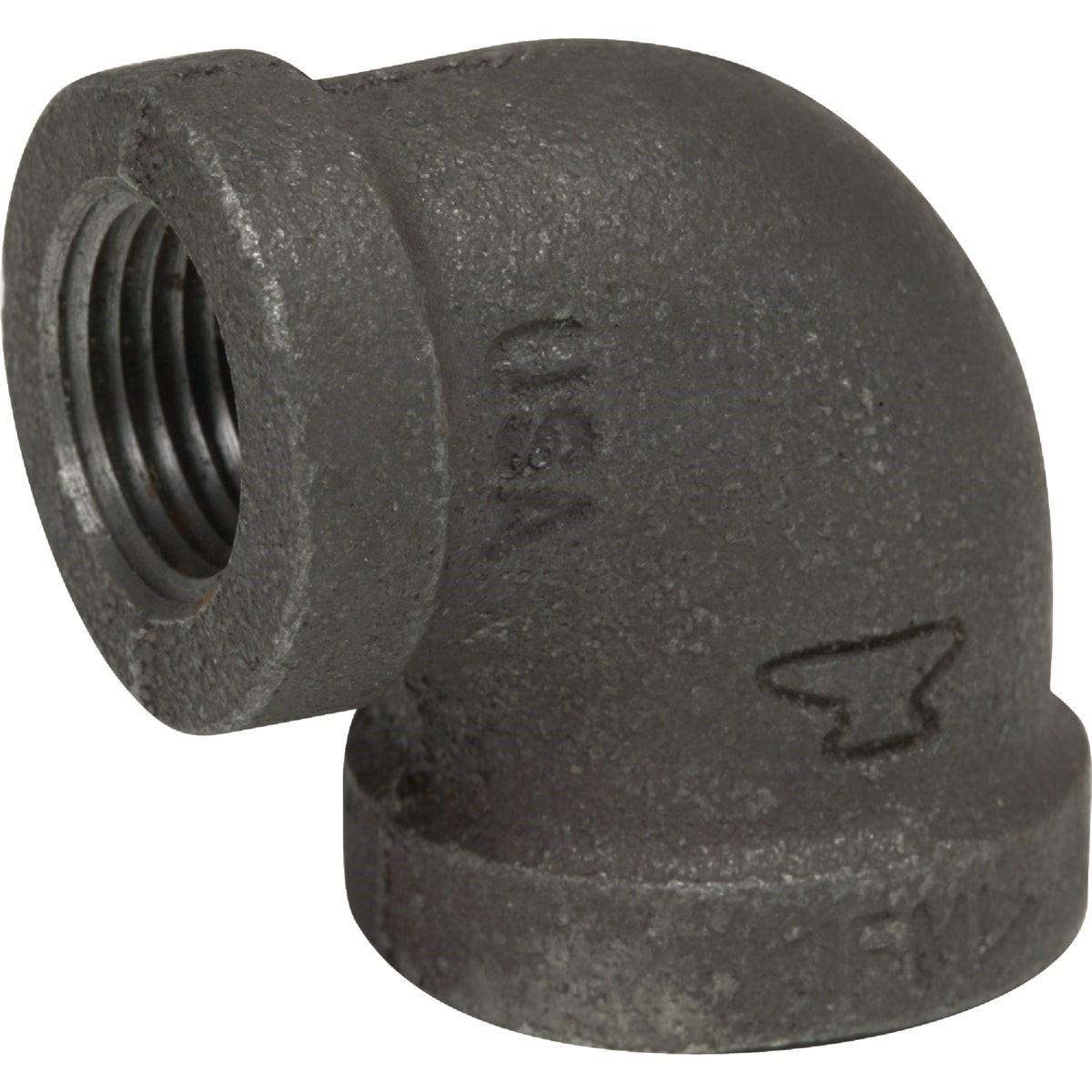

The ASC ENGINEERED SOLUTIONS 8700124509 is a 90-degree reducing malleable black iron elbow, also referred to as a 1/4 bend, connecting a 1/2-inch inlet to a 3/8-inch outlet. Constructed from malleable iron with a flat banded design, this fitting is built to handle the mechanical stress of threaded pipe systems. It meets Federal Specification WW-P-521F, ANSI B-16.3 for dimensions, ANSI B-2.1 for pipe threads, and ASTM A-197 for chemical and physical properties. Licensed plumbers and pipefitters typically install this fitting where a directional change and a pipe size reduction are required in the same connection point.

This elbow is suited for residential and light commercial black iron pipe installations, including gas distribution lines and general plumbing applications where malleable iron fittings are specified. The reducing configuration eliminates the need for a separate bushing, making it a practical choice in tight or congested pipe runs where a direction change and size transition must occur simultaneously.

Key Features

• 90-degree turn with built-in reduction from 1/2 inch to 3/8 inch in a single fitting
• Malleable iron construction with flat banded body for durability and machinability
• Compliant with ANSI B-16.3 dimensional standards and ANSI B-2.1 pipe thread specifications
• Meets ASTM A-197 requirements for chemical and physical properties
• Sold individually — unit of measure is each

Compatibility

Designed as an OEM-style replacement or new-installation fitting for standard threaded black iron pipe systems using NPT connections in accordance with ANSI B-2.1.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable local plumbing codes and IFGC requirements when used on gas lines. Shut off the gas or water supply and depressurize the line before beginning any fitting work. Apply an appropriate thread sealant or tape rated for the service fluid before making up the connection. Do not over-tighten threaded fittings, as malleable iron can crack under excessive torque.

Technical Specifications

• Material: Malleable Iron
• Finish: Black
• Body Style: Flat Banded
• Inlet Size: 1/2 inch
• Outlet Size: 3/8 inch
• Angle: 90 Degrees
• Thread Standard: ANSI B-2.1 NPT
• Dimensional Standard: ANSI B-16.3
• Material Standard: ASTM A-197
• Federal Specification: WW-P-521F
• Weight: 0.21 pounds
• UPC: 00690291023170

Standard Information

• Brand: ASC ENGINEERED SOLUTIONS
• Manufacturer Part Number: 8700124509
