Asc 8700123857 Malleable Black Iron 90 Deg Elbow 1-1/4 in

Product Description

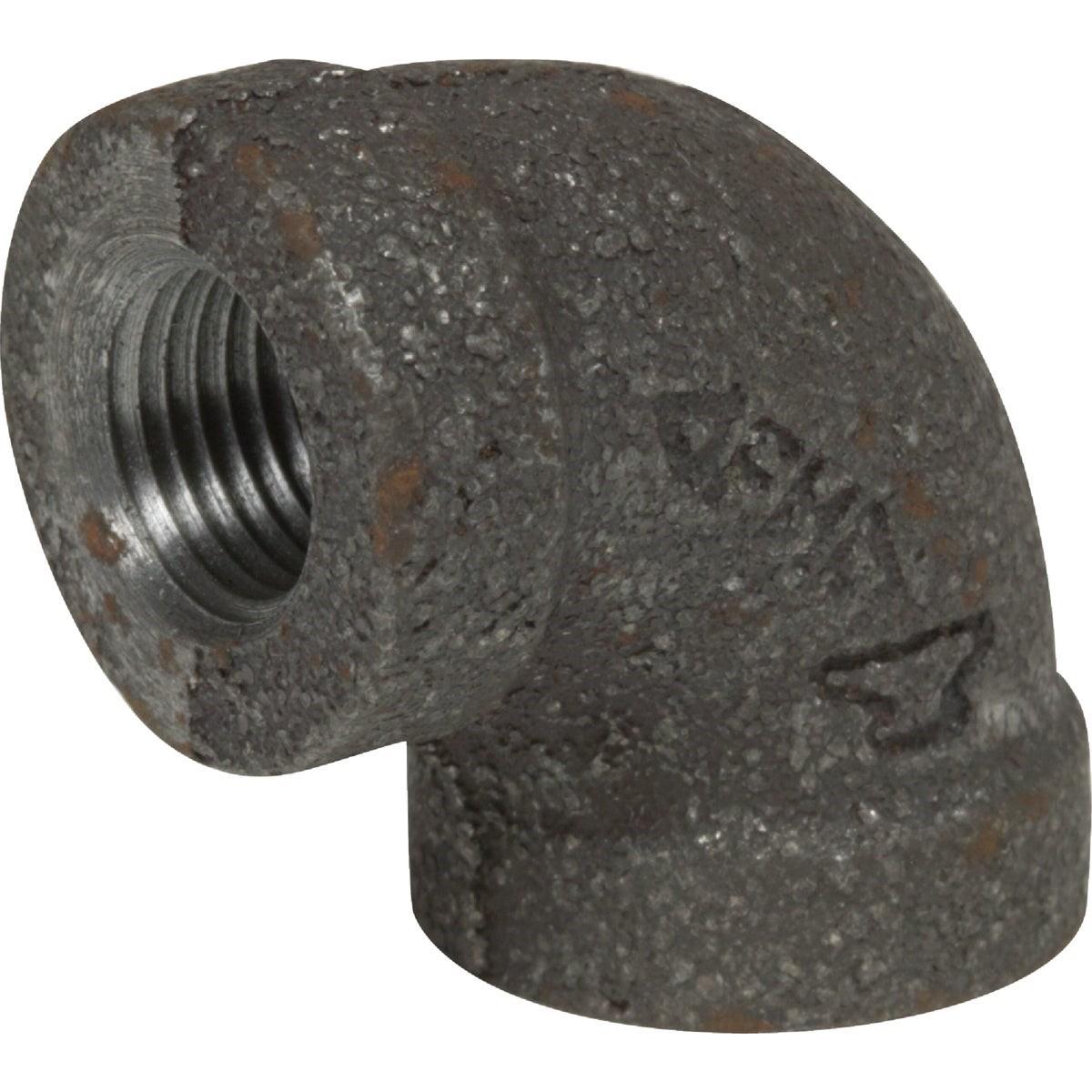

The ASC ENGINEERED SOLUTIONS 8700123857 is a 1-1/4 inch malleable black iron 90-degree elbow, also referred to as a 1/4 bend, used to change pipe direction in threaded black iron piping systems. The fitting is constructed from malleable iron meeting ASTM A-197 standards for chemical and physical properties. It features a flat banded body and conforms to ANSI B-16.3 dimensional standards and ANSI B-2.1 pipe thread specifications. Licensed plumbers and pipefitters install this type of fitting in gas distribution, fire protection, and general-purpose piping applications where a square 90-degree directional change is required.

This elbow is suited for residential and light commercial piping installations where standard malleable iron threaded fittings are specified. It is commonly used in natural gas supply lines, steam systems, and compressed air distribution. The fitting meets Federal Specification WW-P-521F, making it appropriate for projects requiring compliance with federal procurement standards. It is sold individually and fits standard 1-1/4 inch NPT threaded pipe.

Key Features

• 90-degree directional change for threaded black iron piping systems
• Malleable iron construction per ASTM A-197 chemical and physical property requirements
• Flat banded body profile for standard service applications
• Dimensions per ANSI B-16.3 and pipe threads per ANSI B-2.1
• Meets Federal Specification WW-P-521F for government and commercial projects
• 1-1/4 inch NPT thread size for direct connection to standard pipe

Compatibility

Designed as an OEM-style replacement and standard-service fitting for 1-1/4 inch NPT threaded black iron pipe systems in gas, steam, and general-purpose piping installations.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable local codes and IFGC or IPC requirements. Shut off all gas or fluid supply and depressurize the system completely before disassembly or fitting installation. Apply an appropriate thread sealant or PTFE tape rated for the intended service medium to all male threads before assembly. Do not over-tighten threaded connections, as malleable iron fittings can crack under excessive torque.

Technical Specifications

• Material: Malleable Black Iron
• Pipe Size: 1-1/4 inches
Bend Angle: 90 Degrees
• Body Style: Flat Banded
• Thread Standard: ANSI B-2.1 NPT
• Dimensional Standard: ANSI B-16.3
• Material Standard: ASTM A-197
• Federal Specification: WW-P-521F
• Weight: 1.023 pounds
• Sold As: Each

Standard Information

• Brand: ASC ENGINEERED SOLUTIONS
• Manufacturer Part Number: 8700123857
