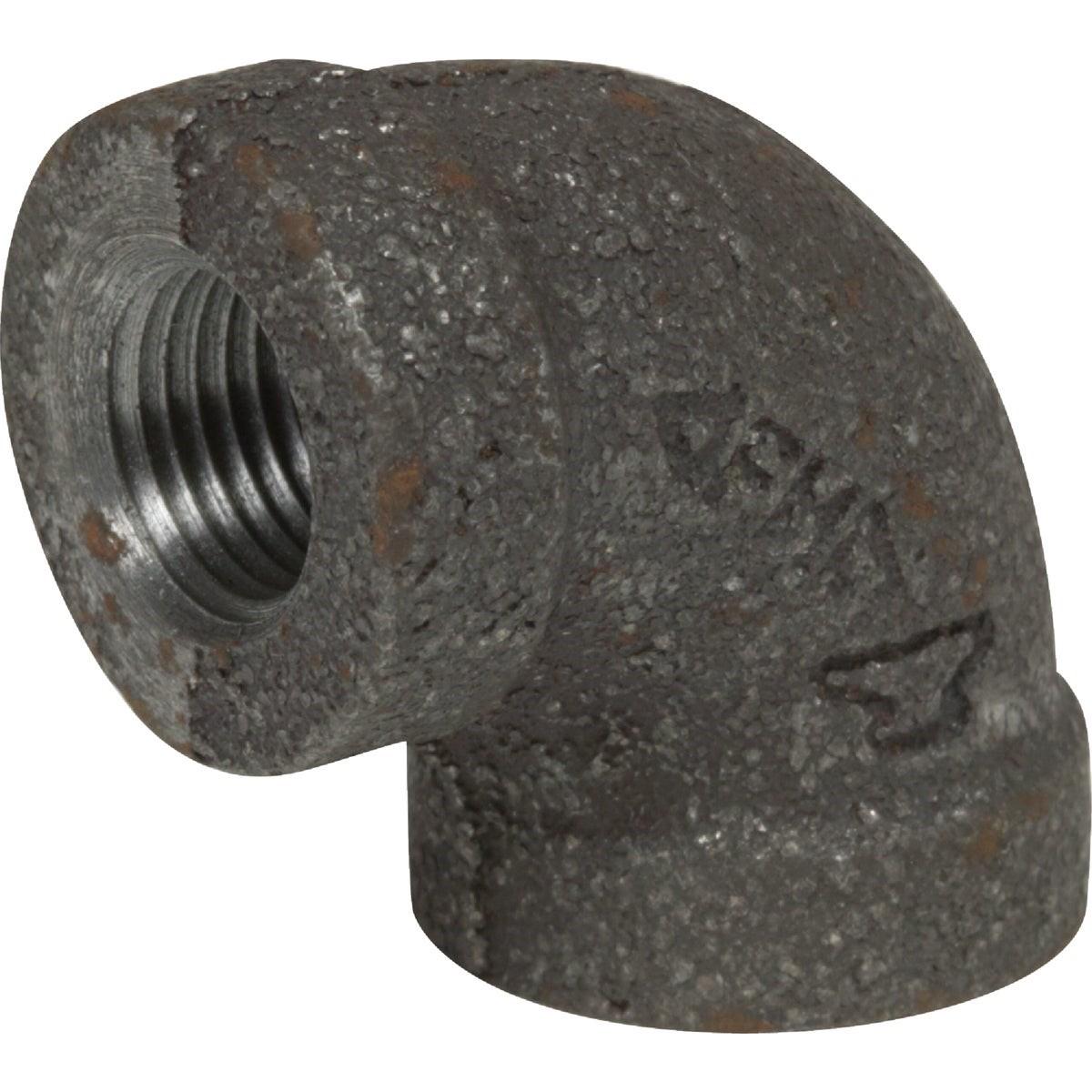

Asc 8700123758 3/4 in Malleable Black Iron 90 Degree Elbow

Product Description

The ASC ENGINEERED SOLUTIONS 8700123758 is a 3/4 inch 90 degree malleable black iron elbow, also known as a 1/4 bend, used to change pipe direction in threaded piping systems. Built from malleable iron to ASTM A-197 standards, this flat-banded fitting delivers the structural integrity and thread integrity required in pressurized service lines. Pipe threads conform to ANSI B-2.1 and overall dimensions meet ANSI B-16.3. Licensed plumbers and pipefitters install this fitting in gas, steam, and liquid piping assemblies where a reliable, code-compliant directional change is needed.

This elbow is suited for residential and light commercial piping applications including gas distribution, hydronic heating, and general plumbing systems. The 3/4 inch thread size is a common size found in branch lines, riser connections, and service drops. The malleable black iron construction makes it appropriate for use in systems where ductility and resistance to impact are priorities. Installers working with standard schedule pipe in low- to medium-pressure systems will find this a straightforward, code-conforming fitting.

Key Features

• 90 degree directional change for threaded pipe runs
• Malleable iron construction per ASTM A-197 chemical and physical property standards
• Flat-banded body style for positive wrench grip during installation
• Pipe threads per ANSI B-2.1 for consistent fit on standard NPT pipe
• Dimensions per ANSI B-16.3 for interchangeability with standard malleable iron fittings
• Meets Federal Specification WW-P-521F

Compatibility

Designed as an OEM-style replacement or new-installation fitting for 3/4 inch NPT threaded piping systems using standard malleable iron pipe fittings.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable local codes and the International Plumbing Code or International Fuel Gas Code as required by the application. Shut off and depressurize the system completely before removing or installing threaded fittings. Apply an appropriate thread sealant or PTFE tape rated for the service type before making up the joint. Do not overtighten threaded connections, as malleable iron threads can be damaged by excessive torque.

Technical Specifications

• Material: Malleable Black Iron
• Size: 3/4 inches
• Angle: 90 degrees
• Body Style: Flat Banded
• Thread Standard: ANSI B-2.1 NPT
• Dimensional Standard: ANSI B-16.3
• Material Standard: ASTM A-197
• Federal Specification: WW-P-521F
• Weight: 0.38 pounds
• Sold As: Each

Standard Information

• Brand: ASC ENGINEERED SOLUTIONS
• Manufacturer Part Number: 8700123758
