Asc 8700122800 Malleable Iron Reducing Tee 1x1x3/4 in

Product Description

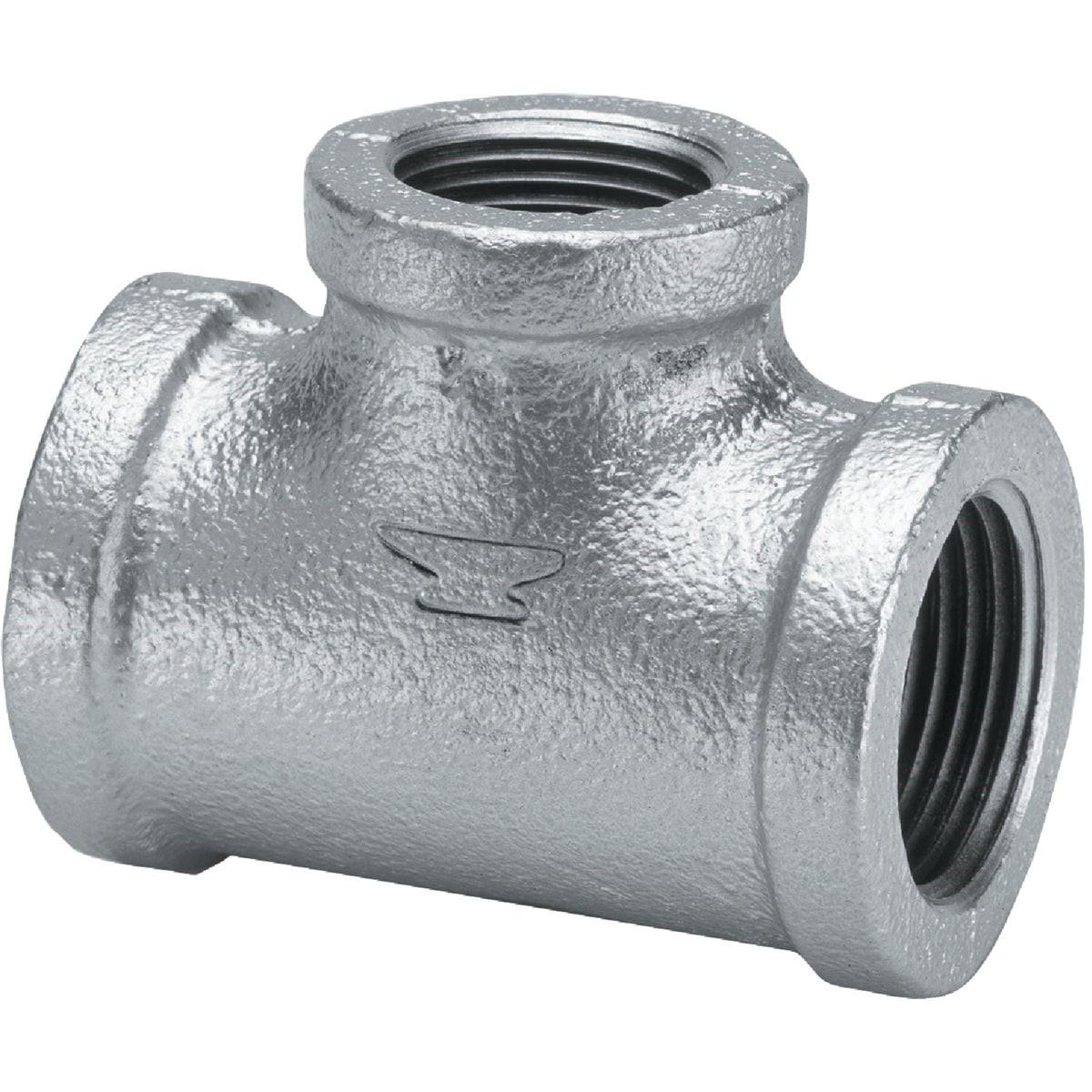

The ASC ENGINEERED SOLUTIONS 8700122800 is a malleable iron reducing tee finished in galvanized coating for corrosion resistance. The fitting features a flat banded body and threaded connections conforming to ANSI B-2.1 pipe thread standards. Sized at 1 inch by 1 inch by 3/4 inch, the run measures 1 inch on both the A and B sides, with a 3/4-inch outlet at the C middle position. Weighing 0.84 pounds, this tee is built for use in threaded iron pipe systems where a branch reduction is required. Licensed plumbers and pipefitters are the primary installers for this type of fitting.

This reducing tee is suited for residential and light commercial piping applications involving gas distribution, water supply, or similar threaded pipe systems. The galvanized finish makes it appropriate for installations where mild corrosion protection is needed. The flat banded design is a standard configuration in malleable iron fittings used throughout domestic and commercial mechanical systems. Sizing follows the A side, B side, and C middle sequence standard for reducing tees.

Key Features

• Malleable iron construction conforming to ASTM A-197 chemical and physical properties
• Dimensions per ANSI B-16.3 standard for malleable iron fittings
• Threaded connections per ANSI B-2.1 pipe thread specification
• Meets Federal Specification WW-P-521F
• Galvanized finish for corrosion protection
• Flat banded body style

Compatibility

Designed as an OEM-style replacement or new-installation fitting for standard threaded malleable iron pipe systems using 1-inch run pipe with a 3/4-inch branch outlet.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable local codes and the International Plumbing Code. Shut off and depressurize the pipe system completely before disassembling or threading any fittings. Apply an approved thread sealant or PTFE tape to all male threads before assembly. Do not over-tighten threaded connections, as malleable iron fittings can crack under excessive torque applied beyond hand-tight plus standard wrench turns per trade practice.

Technical Specifications

• Material: Malleable Iron
• Finish: Galvanized
• Run Size (A and B): 1 inch
• Outlet Size (C): 3/4 inch
• Body Style: Flat Banded
• Weight: 0.84 pounds
• Dimension Standard: ANSI B-16.3
• Thread Standard: ANSI B-2.1
• Material Standard: ASTM A-197
• Federal Specification: WW-P-521F
• UPC: 00690291029448

Standard Information

• Brand: ASC ENGINEERED SOLUTIONS
• Manufacturer Part Number: 8700122800
