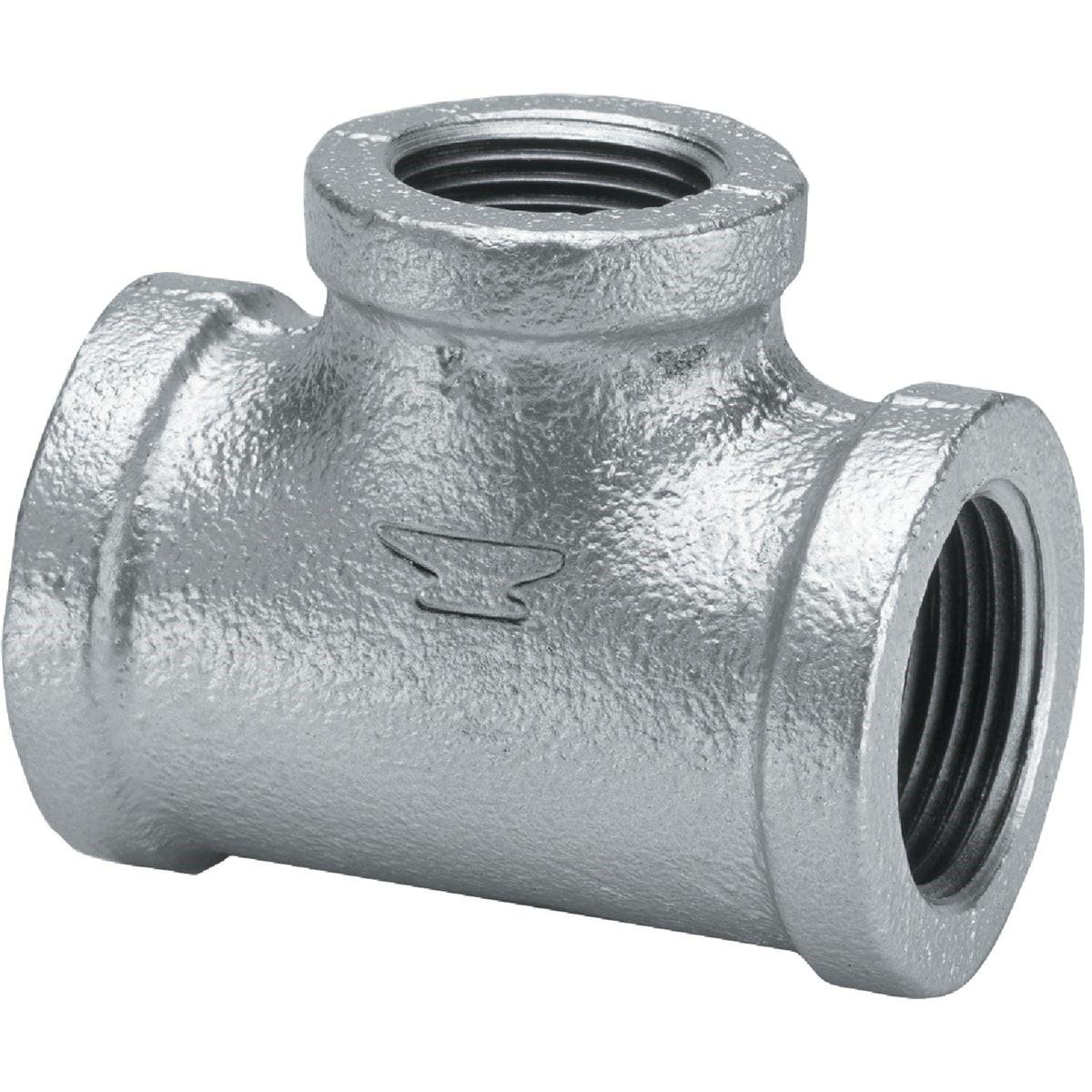

Asc 8700122503 Malleable Iron Reducing Galvanized Tee

Product Description

The ASC Engineered Solutions 8700122503 is a malleable iron reducing galvanized tee designed for threaded pipe systems in commercial and residential plumbing, HVAC piping, and mechanical applications. It features a flat banded body and a reducing outlet to accommodate different pipe sizes within the same run. The fitting weighs 0.49 pounds and is manufactured to Federal Specification WW-P-521F with dimensional compliance to ANSI B-16.3 and pipe thread compliance to ANSI B-2.1. Chemical and physical properties conform to ASTM A-197. Sizes follow the A side, B side, and C middle sequence, with the run size listed first and the outlet second.

This fitting is suited for threaded iron pipe systems where a branch or reducing outlet is required along a straight run. Typical installations include steam, hot water, chilled water, gas distribution, and general mechanical piping in both residential and light commercial settings. It is sold individually and is intended for use where galvanized corrosion protection is required by the application or local code.

Key Features

• Malleable iron construction with galvanized finish for corrosion resistance
• Flat banded body — standard profile for threaded mechanical piping systems
• Reducing configuration: 3/4 inch run x 3/4 inch run x 1/2 inch outlet
• Pipe threads comply with ANSI B-2.1 for reliable sealing with tapered NPT connections
• Dimensions per ANSI B-16.3 and material properties per ASTM A-197
• Meets Federal Specification WW-P-521F

Compatibility

Designed as an OEM-style replacement or new-installation fitting for standard 3/4 inch x 3/4 inch x 1/2 inch NPT threaded malleable iron piping systems.

Installation Notes

Installation is performed by licensed plumbers or pipefitters working with threaded iron pipe systems. Shut off and depressurize the pipe system completely before disassembling or installing any fitting. Apply an appropriate thread sealant or PTFE tape to all male NPT threads before assembly. Follow local plumbing code and IFGC requirements for fitting selection when used in gas piping applications.

Technical Specifications

• Material: Malleable Iron
• Finish: Galvanized
• Body Style: Flat Banded
• Run Size (A and B): 3/4 inches
• Outlet Size (C): 1/2 inches
• Weight: 0.49 pounds
• Thread Standard: ANSI B-2.1 NPT
• Dimensional Standard: ANSI B-16.3
• Material Standard: ASTM A-197
• Federal Specification: WW-P-521F
• Sold As: Each

Standard Information

• Brand: ASC Engineered Solutions
• Manufacturer Part Number: 8700122503
