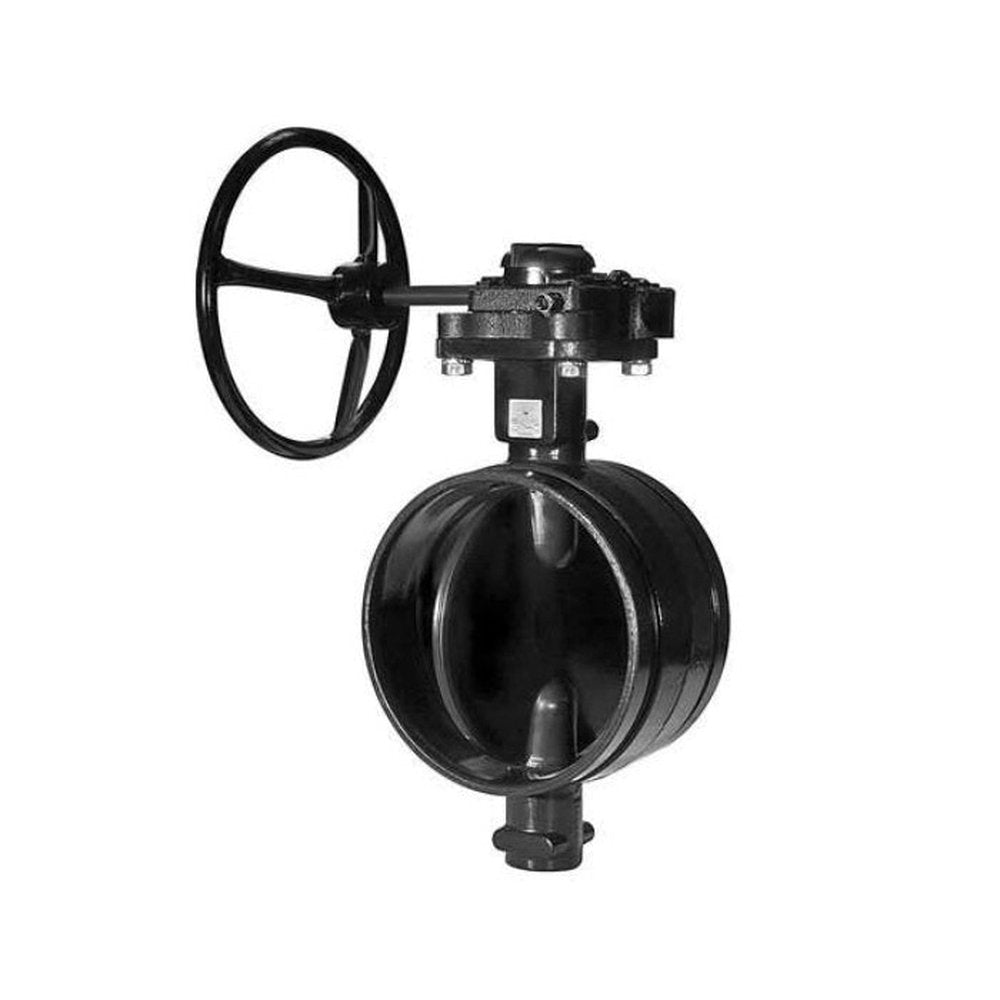

Asc 7005011910 6 Inch Grooved Butterfly Valve Fig 7700

Product Description

The ASC Engineered Solutions 7005011910 is a 6-inch grooved-end butterfly valve in the FIG 7700 series, designed for commercial piping systems requiring reliable shut-off and flow control. The body and disc are both constructed from ductile iron meeting ASTM A536 Grade 65-45-12, and the stem and pin are 416 stainless steel. A Grade-E EPDM seal provides a temperature range of -40 to 180 degrees F, making it suitable for a wide range of fluid service applications. A nylon-coated disc finish and gear actuator are included as standard. Licensed plumbers and pipefitters install this valve in grooved-end commercial piping configurations.

This valve is engineered for commercial grooved-end piping systems in sizes 2 through 12 inches, making it a fit for mechanical rooms, HVAC hydronic systems, fire protection, and industrial process piping where grooved-end coupling systems are specified. The gear actuator provides controlled operation suited to larger-diameter applications where direct handle actuation is impractical. The 6-5/8-inch OD, 5-13/16-inch inlet-to-outlet length, and 10-inch top-to-inlet-center dimension are standard for this size class in grooved mechanical systems.

Key Features

• Ductile iron body and disc rated to ASTM A536 Grade 65-45-12
• Grade-E EPDM softgoods rated from -40 to 180 degrees F
• 416 stainless steel stem and pin for corrosion resistance
• Nylon-coated disc finish for extended service life
• Gear actuator for controlled operation on 6-inch lines
• Certified to NSF/ANSI 61 Annex G, cUPC Listed, and MSS SP-67

Compatibility

Designed for commercial grooved-end piping systems 2 through 12 inches per the FIG 7700 series specification. Conforms to MSS SP-67 and is compatible with standard grooved mechanical coupling systems used in HVAC, fire protection, and industrial piping.

Installation Notes

Installation should be performed by a licensed pipefitter or plumber familiar with grooved-end mechanical coupling systems. Isolate and depressurize the piping system and drain the line before removing or installing this valve. Verify that grooved pipe ends meet dimensional tolerances required for the coupling system being used. Consult applicable local mechanical codes and manufacturer installation instructions before proceeding.

Technical Specifications

• Series: FIG 7700
• Nominal Size: 6 inches
• End Style: Grooved
• Outer Diameter: 6.625 inches
• Inlet to Outlet Length: 5.8125 inches
• Top to Inlet Center: 10 inches
• Body Material: Ductile Iron
• Disc Material: Ductile Iron
• Stem and Pin Material: 416 Stainless Steel
• Softgoods Material: Grade-E EPDM
• Finish: Nylon Coated
• Actuator Type: Gear
• Temperature Rating: -40 to 180 degrees F
• Standards and Approvals: ASTM A536 Grade 65-45-12, ASTM D2000, cUPC Listed, MSS SP-67, NSF/ANSI 61 Annex G
• Country of Origin: Domestic

Standard Information

• Brand: ASC Engineered Solutions
• Manufacturer Part Number: 7005011910
