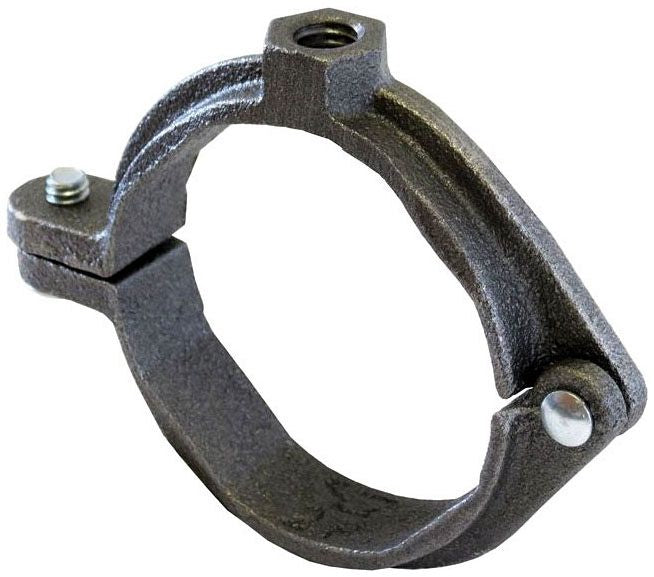

Asc 560500209 Galvanized Split Ring Hanger 3/4 in 3/8 in Rod

Product Description

The ASC Engineered Solutions 560500209 is a galvanized split ring hanger designed to support pipe in suspended mechanical systems. Fabricated from carbon steel with a galvanized finish for corrosion resistance, this hanger accepts 3/4-inch pipe and mounts to 3/8-inch threaded rod. Split ring construction allows the hanger to be installed around existing pipe runs without requiring the pipe to be threaded through a closed ring. Plumbers and pipefitters use these hangers in commercial and residential mechanical rooms, suspended ceiling spaces, and utility corridors where code-compliant pipe support is required.

This split ring hanger is suited for 3/4-inch pipe support applications in both new construction and retrofit installations. The 3/8-inch rod size is a common standard in light-duty pipe support systems, making this hanger compatible with typical threaded-rod suspension assemblies found in plumbing, HVAC, and general mechanical piping runs. The galvanized finish provides baseline protection in indoor and moderately damp environments.

Key Features

• Split ring design allows installation around pipe without full disassembly of the run
• Galvanized carbon steel construction for corrosion resistance in damp indoor environments
• Fits 3/4-inch pipe with 3/8-inch threaded rod mounting
• Lightweight at 0.14 pounds per unit for easy handling and bulk installation

Compatibility

Designed as an OEM-style replacement and standard-use split ring hanger for 3/4-inch pipe suspended from 3/8-inch threaded rod in residential and commercial mechanical piping systems.

Installation Notes

Installation is typically performed by licensed plumbers or pipefitters working under applicable mechanical and plumbing codes such as the IPC or IFGC. Ensure the threaded rod and supporting structure are rated for the combined load of the pipe, contents, and insulation before installing hangers. Power down or isolate any pressurized systems before working on active pipe runs. Do not overtighten the split ring hardware, as this can deform the pipe or fitting.

Technical Specifications

• Material: Carbon Steel
• Finish: Galvanized
• Pipe Size: 3/4 inches
• Rod Size: 3/8 inches
• Type: Split Ring Hanger
• Weight: 0.14 pounds per unit

Standard Information

• Brand: ASC Engineered Solutions
• Manufacturer Part Number: 560500209
