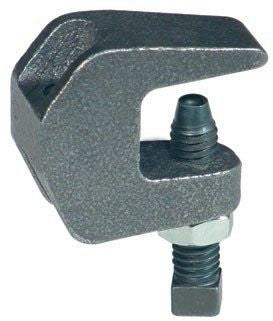

Asc 560009110 Galvanized Wedge C Beam Clamp 1/2 Inch

Product Description

The ASC ENGINEERED SOLUTIONS 560009110 is a galvanized wedge style C beam clamp designed for secure pipe and conduit support on structural steel beams. Built from steel with a galvanized finish, this clamp resists corrosion in damp and outdoor-adjacent environments common in mechanical, plumbing, and electrical installations. The 1/2 inch size accommodates standard 1/2 inch threaded rod, making it a staple fastening component for suspended pipe hangers and conduit support systems. Licensed plumbers, pipefitters, and electricians regularly specify this style of clamp when anchoring support assemblies to I-beams or channel beams without drilling or welding.

The 560009110 wedge style C beam clamp is suited for residential and light commercial mechanical rooms, suspended ceiling grid work, and industrial pipe rack installations where structural steel beams serve as the primary support structure. It is a common component in HVAC pipe hanger assemblies, plumbing drain and supply rough-in, and electrical conduit support runs. The wedge locking design provides a rigid, vibration-resistant connection to the beam flange.

Key Features

• Galvanized steel construction for corrosion resistance in damp or outdoor-adjacent environments
• Wedge style locking mechanism secures tightly to beam flanges without drilling or welding
• C-style beam clamp design accepts 1/2 inch threaded rod for standard hanger assemblies
• Compact and lightweight at 0.63 pounds for easy single-hand positioning during overhead installation
• Compatible with I-beams and structural channel commonly found in commercial and light industrial construction

Compatibility

Designed as an OEM-style replacement and standard fitment component for 1/2 inch threaded rod hanger systems used with structural steel I-beams and channel beams in mechanical, plumbing, and electrical support applications.

Installation Notes

Installation is typically performed by licensed plumbers, pipefitters, or electricians working on pipe and conduit support systems. De-energize any nearby electrical circuits and shut off water or gas supply lines before working overhead in active mechanical spaces. Position the clamp over the beam flange and tighten the wedge fastener to manufacturer-specified hand-tight-plus engagement using a standard wrench. Support installations should comply with applicable local mechanical codes and spacing requirements for the pipe or conduit being supported.

Technical Specifications

• Type: Beam Clamp
• Style: Wedge Style C
• Size: 1/2 inch
• Material: Steel
• Finish: Galvanized
• Weight: 0.63 pounds

Standard Information

• Brand: ASC ENGINEERED SOLUTIONS
• Manufacturer Part Number: 560009110
