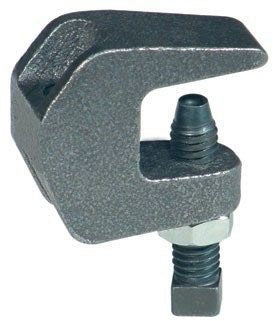

Asc 560009078 Wedge Style C Beam Clamp 1/2 Inch

Product Description

The ASC Engineered Solutions 560009078 is a wedge-style C beam clamp designed to secure threaded rod, conduit, or pipe supports to structural steel beams. Constructed from steel with a black finish, this clamp uses a wedge-action design to grip the flange of a beam without drilling or welding. At 0.63 pounds, it is a lightweight, compact hardware solution suited for trade applications where speed and structural reliability are both required. Licensed mechanical, electrical, and plumbing contractors rely on this clamp type for suspension and support work on commercial and industrial projects.

This beam clamp is used in applications where threaded rod or support assemblies must be attached to I-beams or structural steel flanges. It fits a 1/2 inch rod size, making it compatible with standard strut and hanger systems commonly found in HVAC duct suspension, electrical conduit support, plumbing pipe hangers, and fire suppression layouts. It is a practical choice for new construction, tenant improvements, and retrofit support work in commercial and light industrial buildings.

Key Features

• Wedge-style C clamp design grips beam flange without drilling or welding
• Steel construction with black finish for durability in typical indoor structural environments
• 1/2 inch rod size fits standard threaded rod hanger assemblies
• Lightweight at 0.63 pounds for easy handling during overhead installation
• Suitable for HVAC, plumbing, and electrical support applications on structural steel

Compatibility

Designed as an OEM-style replacement and standard hardware fitting for 1/2 inch threaded rod support systems used with structural steel beams in commercial and light industrial construction.

Installation Notes

Installation is typically performed by licensed mechanical, electrical, or plumbing contractors working on structural steel support systems. Before installing, ensure the beam flange is clean and free of debris to allow proper wedge seating. Tighten the clamp fastener to achieve a secure grip on the beam flange per the applicable building code and manufacturer load rating requirements. Do not exceed the rated load capacity of the clamp when designing hanger assemblies.

Technical Specifications

• Type: Wedge Style C Beam Clamp
• Material: Steel
• Finish: Black
• Rod Size: 1/2 inches
• Weight: 0.63 pounds

Standard Information

• Brand: ASC Engineered Solutions
• Manufacturer Part Number: 560009078
