Asc 500359500 Galvanized Clevis Hanger 1/2-3/4 in 3/8 in Rod

Product Description

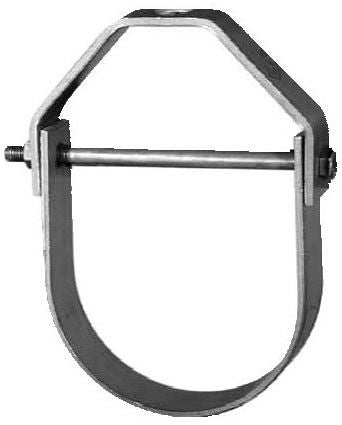

The ASC ENGINEERED SOLUTIONS 500359500 is a galvanized clevis hanger designed to support 1/2 inch to 3/4 inch pipe from a 3/8 inch threaded rod. Fabricated from carbon steel with a galvanized finish, this hanger provides corrosion resistance in wet or exposed mechanical installations. Clevis hangers allow the pipe to rest in a U-shaped cradle, permitting minor longitudinal movement while maintaining secure vertical support. At 0.31 pounds per unit, the 500359500 is a compact, standard-duty hanger suited for plumbing, HVAC piping, and mechanical systems where pipe support from overhead structure is required.

This clevis hanger is used in commercial and residential mechanical rooms, utility spaces, and overhead piping runs where 1/2 inch or 3/4 inch pipe must be suspended from threaded rod. Common applications include domestic water lines, hydronic heating and cooling piping, compressed air lines, and light-duty process piping. The galvanized carbon steel construction makes it appropriate for damp or corrosive environments where bare steel hangers would be unsuitable. Installers working on sprinkler systems, plumbing rough-in, or HVAC hydronic distribution will find this a standard component in suspended pipe assemblies.

Key Features

• Fits 1/2 inch to 3/4 inch nominal pipe size
• Accepts 3/8 inch threaded support rod
• Carbon steel construction with galvanized finish for corrosion resistance
• Clevis design allows minor longitudinal pipe movement
• Lightweight at 0.31 pounds per unit for easy handling in overhead work

Compatibility

Designed as an OEM-style replacement and standard-fit clevis hanger for suspended pipe support assemblies using 1/2 inch to 3/4 inch pipe and 3/8 inch threaded rod.

Installation Notes

Clevis hangers of this type are installed by licensed plumbers, pipefitters, and mechanical contractors working to IPC or IFGC guidelines for pipe support spacing. Shut off and depressurize the piping system before making any changes to existing support assemblies. Thread the hanger onto the 3/8 inch rod and confirm the pipe rests fully in the cradle before tightening any locking hardware. Do not use this hanger to support pipe sizes outside the 1/2 inch to 3/4 inch range stated by the manufacturer.

Technical Specifications

• Material: Carbon Steel
• Finish: Galvanized
• Pipe Size Range: 1/2 inch to 3/4 inch
• Rod Size: 3/8 inch
• Type: Clevis Hanger
• Weight: 0.31 pounds per unit

Standard Information

• Brand: ASC ENGINEERED SOLUTIONS
• Manufacturer Part Number: 500359500
