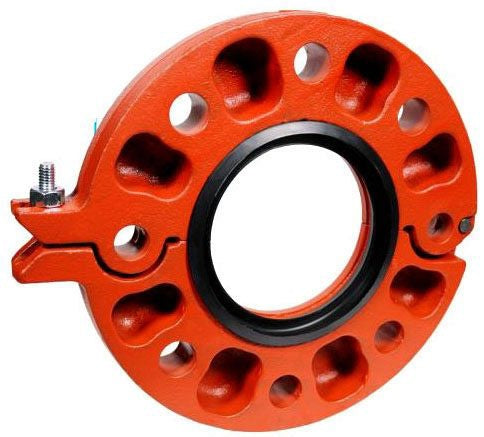

Asc 390214740 Gruvlok 7013E 2 in Grooved Flange Adapter Epdm

Product Description

The ASC Engineered Solutions 390214740 is a Gruvlok 7013E grooved-to-flange transition adapter rated for use with EPDM sealing in Schedule 300 XH (extra heavy) flange configurations. Built from ductile iron, this adapter connects grooved-end pipe systems to flanged equipment or valves, converting between the two connection types without welding or threading. At 5 pounds and sized for 2-inch pipe, it is a compact but heavy-duty fitting suited for mechanical contractors and pipefitters working on commercial hydronic, fire protection, or industrial fluid systems where grooved piping transitions to flanged components.

This fitting is designed for 2-inch grooved pipe systems requiring a bolted flange interface. The EPDM gasket material makes it appropriate for water, steam, and mild chemical service where EPDM compatibility is confirmed. The XH (extra heavy) flange designation suits higher-pressure or heavy-duty commercial and industrial installations. Mechanical contractors, pipefitters, and plumbers install this adapter in commercial buildings, mechanical rooms, and industrial plants where grooved piping connects to pumps, strainers, heat exchangers, or other flanged equipment.

Key Features

• Ductile iron construction for strength and durability in pressure piping applications
• EPDM sealing material compatible with water and mild chemical service
• Schedule 300 XH flange rating for heavy-duty and higher-pressure installations
• Grooved-to-flange conversion eliminates the need for welding or threading at the transition point
• 2-inch size fits standard 2-inch grooved pipe ends

Compatibility

Designed as an OEM-style grooved flange adapter for use with standard 2-inch grooved pipe systems following Gruvlok 7013E series specifications. Confirm flange bolt pattern, pressure rating, and gasket compatibility with connected equipment before installation.

Installation Notes

Installation should be performed by a licensed pipefitter or mechanical contractor familiar with grooved piping systems and bolted flange connections. Depressurize and drain the system fully before removing or installing any grooved or flanged components. Align the flange faces squarely and torque bolts in a cross pattern to the fastener manufacturer's specification; do not use impact tools on flange bolts without a verified torque check. Verify that EPDM gasket material is compatible with the fluid and operating temperature range of the system before commissioning.

Technical Specifications

• Fitting Size: 2 inches
• Fitting Material: Ductile Iron
• Gasket Material: EPDM
• Flange Type: Schedule 300 XH
• Item Weight: 5 pounds

Standard Information

• Brand: ASC Engineered Solutions
• Manufacturer Part Number: 390214740
