Asc 390213218 Gruvlok 8in 74CL Sabertooth Rigid Coupling

Product Description

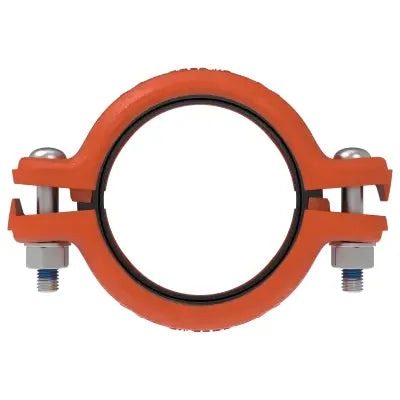

The ASC Engineered Solutions 390213218 is a Gruvlok 8-inch 74CL Sabertooth painted rigid coupling fitted with a CenterLok EPDM gasket. Designed for grooved-end pipe systems, this rigid coupling mechanically joins pipe segments while maintaining a fixed, rigid joint that prevents angular deflection. The ductile iron body provides high-strength performance in demanding mechanical and industrial piping applications. The CenterLok EPDM gasket seats securely within the housing to maintain a reliable seal. Licensed plumbers, pipefitters, and mechanical contractors are the primary installers of this type of coupling in commercial and industrial systems.

This coupling is suited for 8-inch grooved-end pipe installations in commercial mechanical systems, industrial process piping, fire protection, HVAC hydronic distribution, and similar applications where a rigid joint is required. The painted finish provides basic corrosion resistance for typical interior service environments. It is intended for use wherever Gruvlok-style grooved mechanical couplings are specified and a rigid connection is required at the joint.

Key Features

• Rigid coupling design prevents angular deflection at the joint for fixed-pipe configurations
• 74CL Sabertooth housing geometry provides positive pipe-end engagement on grooved pipe
• CenterLok EPDM gasket self-centers within the coupling for consistent sealing
• Ductile iron construction delivers high tensile strength and impact resistance
• Painted exterior finish for corrosion protection in standard interior service conditions

Compatibility

Designed as an OEM-style grooved mechanical coupling for 8-inch grooved-end pipe systems where rigid Gruvlok-style couplings are specified.

Installation Notes

Installation is performed by licensed pipefitters or plumbers in accordance with applicable mechanical codes. Depressurize and drain the piping system fully before removing or installing any grooved coupling. Inspect pipe ends to confirm proper groove dimensions and condition before assembly. Lubricate the EPDM gasket per standard grooved coupling practice and torque housing bolts evenly to seat the gasket uniformly.

Technical Specifications

• Fitting Size: 8 inches
• Fitting Material: Ductile Iron
• Gasket Material: EPDM
• Coupling Style: Rigid
• Finish: Painted

Standard Information

• Brand: ASC Engineered Solutions
• Manufacturer Part Number: 390213218
