Asc 390173367 Gruvlok Saddle Tee Grooved 4x2 in Ductile Iron

Product Description

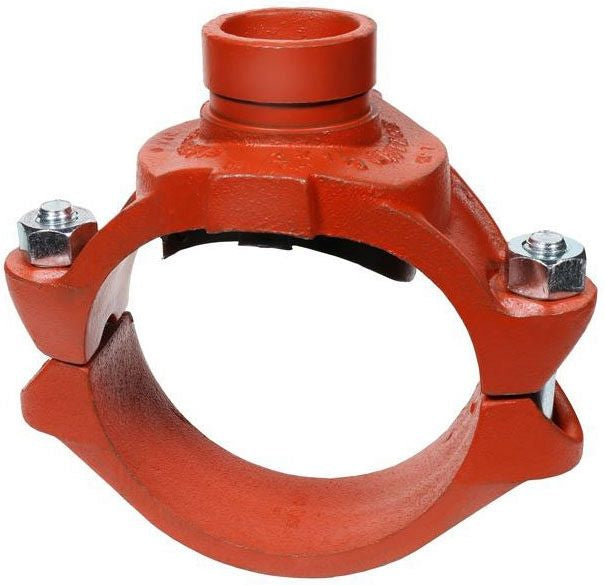

The ASC Engineered Solutions 390173367 is a Gruvlok painted saddle tee fitting with a grooved outlet, designed for use in grooved piping systems where a branch connection is required off a main line. Constructed from ductile iron and finished with a painted exterior, this saddle tee accommodates a 4-inch main pipe with a 2-inch grooved branch outlet. It is installed by licensed pipefitters and mechanical contractors in systems that demand reliable, leak-resistant branch connections without welding or threading.

This fitting is suited for commercial and industrial piping installations including fire protection, HVAC hydronic systems, and general mechanical piping. The grooved outlet design allows the branch connection to accept a standard grooved coupling, streamlining installation in both new construction and retrofit applications. The painted finish provides a basic level of corrosion resistance for indoor or protected environments.

Key Features

• Grooved outlet branch connection compatible with standard grooved coupling systems
• Ductile iron construction provides strength and durability in mechanical piping applications
• Painted exterior finish for basic corrosion protection in indoor installations
• 4-inch main x 2-inch branch configuration for reducing saddle tee applications
• Eliminates the need for welding or threading at the branch point

Compatibility

Designed as an OEM-style grooved saddle tee replacement for use with standard grooved piping systems accepting 4-inch main and 2-inch branch grooved fittings and couplings.

Installation Notes

Installation should be performed by a qualified pipefitter or mechanical contractor in accordance with applicable mechanical codes. Depressurize and drain the piping system fully before cutting or modifying the main line. Ensure the main pipe groove and branch outlet groove meet the dimensional standards required by the grooved coupling being used. Follow the fitting manufacturer torque and assembly sequence guidelines for all grooved couplings used at this connection.

Technical Specifications

• Fitting Size: 4 inches x 2 inches
• Fitting Material: Ductile Iron
• Finish: Painted
• Item Weight: 4.60 pounds

Standard Information

• Brand: ASC Engineered Solutions
• Manufacturer Part Number: 390173367
