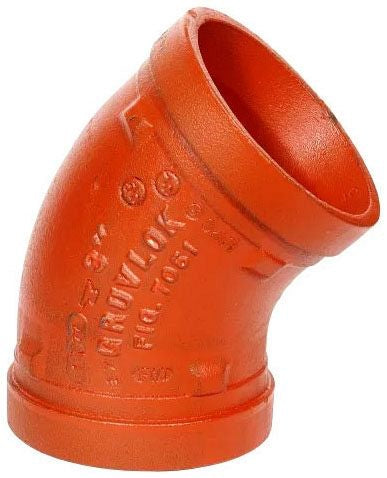

Asc 390014967 Gruvlok 8 in Grooved 45 Degree Elbow

Product Description

The ASC Engineered Solutions 390014967 is a Gruvlok grooved painted 45-degree elbow designed for use in grooved piping systems. Manufactured from ductile iron and sized at 8 inches, this fitting provides a reliable directional change in piping runs where a 45-degree turn is required. The painted exterior finish offers a baseline level of corrosion resistance during storage and installation. This fitting is installed by licensed pipefitters, mechanical contractors, and fire protection professionals working on commercial or industrial piping systems.

This 45-degree elbow is suited for grooved mechanical piping systems commonly found in commercial HVAC, fire suppression, and industrial process piping applications. The grooved end connections are designed to mate with standard grooved couplings, eliminating the need for threading or welding at the joint. At 8 inches, this fitting is appropriate for larger-diameter mainline distribution runs in commercial and light industrial settings where grooved piping systems are the specified method of assembly.

Key Features

• 45-degree elbow geometry for directional changes in grooved piping runs
• 8-inch fitting size suitable for larger-diameter commercial piping systems
• Ductile iron construction provides high strength and impact resistance
• Painted exterior finish for corrosion protection during handling and installation
• Grooved ends designed to accept standard grooved mechanical couplings

Compatibility

Designed as an OEM-style grooved fitting for use with standard grooved mechanical coupling systems in 8-inch piping configurations.

Installation Notes

Installation should be performed by a qualified pipefitter or mechanical contractor in accordance with applicable mechanical and plumbing codes. De-pressurize and drain the piping system completely before removing or installing any grooved fittings. Inspect grooved pipe ends for proper groove dimensions and condition before seating the coupling gasket and housing. Follow the coupling manufacturer's torque and assembly procedures for the specific coupling used with this fitting.

Technical Specifications

• Elbow Degree: 45
• Fitting Material: Ductile Iron
• Fitting Size: 8 inches
• Item Weight: 19.58 pounds

Standard Information

• Brand: ASC Engineered Solutions
• Manufacturer Part Number: 390014967
