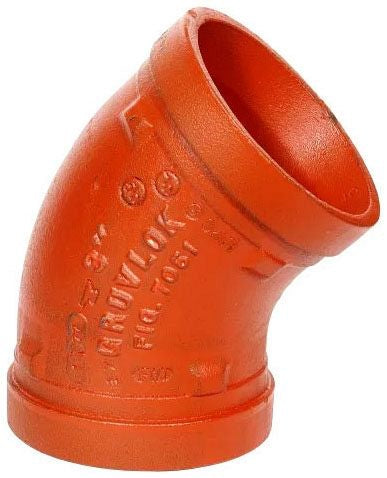

Asc 390014801 Gruvlok 7051 Grooved 45 Degree Elbow 2.5 in

Product Description

The ASC Engineered Solutions 390014801 is a 2.5-inch grooved 45-degree elbow from the Gruvlok 7051 product line. Manufactured from ductile iron with a painted finish, this fitting is designed to redirect piping flow at a 45-degree angle within grooved mechanical piping systems. The grooved-end design allows for fast, tool-ready connections using standard grooved couplings, reducing installation time compared to threaded or flanged alternatives. At 1.85 pounds, the fitting is lightweight for a ductile iron component, making it manageable for overhead and tight-space installations. It is typically installed by licensed pipefitters, plumbers, and mechanical contractors working on commercial and industrial piping systems.

This elbow is suited for use in commercial mechanical, fire protection, HVAC hydronic, and industrial piping applications where a grooved pipe system is specified. The 2.5-inch nominal size fits standard grooved pipe of the same diameter. The 45-degree angle makes it appropriate for offset runs, diagonal transitions, and space-constrained routing scenarios where a full 90-degree elbow would be impractical.

Key Features

• 45-degree elbow configuration for angular pipe direction changes
• Ductile iron construction provides strength and impact resistance
• Painted exterior finish for corrosion protection during storage and service
• Grooved-end connections compatible with standard grooved couplings
• 2.5-inch nominal fitting size for standard grooved pipe systems
• Lightweight at 1.85 pounds for easier handling during installation

Compatibility

Designed as an OEM-style grooved fitting for use with standard 2.5-inch grooved mechanical piping systems where Gruvlok 7051 series fittings are specified.

Installation Notes

Installation should be performed by a qualified pipefitter or licensed plumber following applicable mechanical codes. Depressurize and drain the piping system fully before removing or installing any grooved fittings. Verify that mating grooved couplings and gaskets are rated for the intended service pressure and fluid type. Inspect the pipe groove dimensions for compliance with the fitting manufacturer specifications before assembly.

Technical Specifications

• Fitting Size: 2.5 inches
• Elbow Degree: 45 degrees
• Fitting Material: Ductile Iron
• Finish: Painted
• Item Weight: 1.85 pounds

Standard Information

• Brand: ASC Engineered Solutions
• Manufacturer Part Number: 390014801
