Asc 390014306 Gruvlok Grooved 90 Elbow 4 Inch Ductile Iron

Product Description

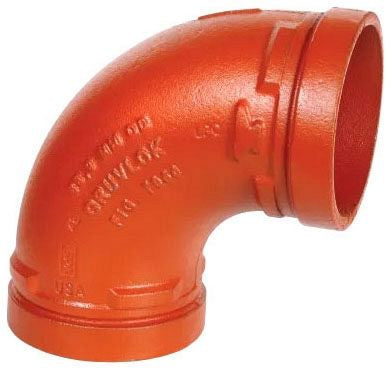

The ASC Engineered Solutions 390014306 is a Gruvlok grooved 90-degree elbow fitting designed for use in grooved piping systems. Constructed from ductile iron with a painted finish, this 4-inch elbow provides a strong, reliable directional change in mechanical piping installations. The grooved end design allows for fast, tool-accessible coupling connections without field welding or threading. At 7.78 pounds, this fitting is sized and weighted for standard 4-inch grooved pipe runs and suits the demands of commercial and industrial piping work.

This elbow is used in grooved mechanical piping systems found in commercial HVAC, fire protection, and industrial fluid distribution applications. The 90-degree angle handles right-angle direction changes within a pipeline. It is typically installed by pipefitters and mechanical contractors working on systems that use grooved couplings and fittings throughout. The painted exterior finish provides a baseline level of surface protection suitable for interior mechanical room and above-ceiling installations.

Key Features

• 90-degree elbow for right-angle direction changes in grooved piping systems
• Ductile iron construction for high strength and impact resistance
• Painted finish for basic corrosion and surface protection
• 4-inch grooved end connections for use with standard grooved couplings
• Compatible with standard grooved-pipe installation methods — no welding or threading required

Compatibility

Designed as an OEM-style grooved fitting for use in 4-inch grooved mechanical piping systems using standard grooved couplings and components.

Installation Notes

Installation of this fitting should be performed by a licensed pipefitter or qualified mechanical contractor. Depressurize and drain the piping system fully before removing or installing any grooved fittings. Use the appropriate grooved coupling and gasket rated for the system fluid and pressure. Follow applicable mechanical and plumbing codes, including IFGC and IPC guidelines, for fitting selection and system assembly.

Technical Specifications

• Fitting Size: 4 inches
• Elbow Degree: 90 degrees
• Fitting Material: Ductile Iron
• Finish: Painted
• Item Weight: 7.78 pounds

Standard Information

• Brand: ASC Engineered Solutions
• Manufacturer Part Number: 390014306
