Asc 390014249 Grooved 90 Degree Elbow 2.5 in Ductile Iron

Product Description

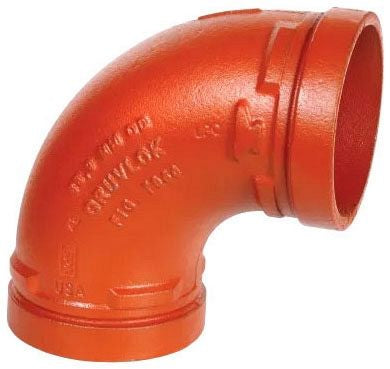

The ASC Engineered Solutions 390014249 is a Gruvlok 7050 series grooved 90-degree elbow designed for use in grooved piping systems. Manufactured from ductile iron with a painted finish, this fitting handles directional changes in piping runs where grooved-end pipe is specified. At 2.5 inches in size and weighing 2.80 pounds, it is built for the dimensional consistency that grooved mechanical systems require. Licensed pipefitters and mechanical contractors install this type of fitting when assembling fire protection, HVAC hydronic, or industrial piping systems using grooved coupling methods.

This elbow is suited for commercial and industrial piping applications where grooved-end connections are the specified joining method. It is typically used in hydronic heating and cooling systems, wet and dry fire suppression systems, and general mechanical piping installations. The painted ductile iron construction makes it appropriate for indoor and covered outdoor service in standard piping environments.

Key Features

• 90-degree elbow geometry for perpendicular directional changes in grooved piping runs
• Ductile iron construction for strength and durability in mechanical piping systems
• Painted finish provides baseline corrosion protection for standard service environments
• Gruvlok 7050 series design for dimensional compatibility with grooved coupling systems
• 2.5-inch pipe size fits standard grooved-end pipe in that nominal diameter

Compatibility

Designed as an OEM-style grooved fitting for use with standard 2.5-inch grooved-end pipe and compatible Gruvlok or equivalent grooved mechanical couplings in commercial and industrial piping systems.

Installation Notes

Installation should be performed by a licensed pipefitter or mechanical contractor familiar with grooved piping systems. Depressurize and drain the system completely before removing or installing any grooved fittings. Inspect the pipe-end groove dimensions and gasket seating surfaces before assembly to ensure a proper seal with the coupling. Follow applicable mechanical codes and the coupling manufacturer's torque and assembly procedures for the specific coupling used with this elbow.

Technical Specifications

• Fitting Size: 2.5 inches
• Elbow Degree: 90
• Fitting Material: Ductile Iron
• Finish: Painted
• Weight: 2.80 pounds

Standard Information

• Brand: ASC Engineered Solutions
• Manufacturer Part Number: 390014249
