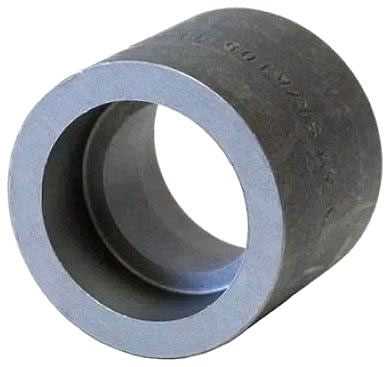

Asc 362061004 Forged Steel Socketweld Full Coupling 1 in 3000 Lb

Product Description

The ASC Engineered Solutions 362061004 is a forged steel socketweld full coupling rated for 3000 lb service pressure in 1-inch pipe size. Full couplings connect two sections of pipe in a straight run, accepting pipe ends into both sockets and joining them via fillet welds. This fitting is designed for high-pressure piping systems where threaded connections are not suitable and a permanent, leak-tight weld joint is required. Plumbers, pipefitters, and industrial contractors install this type of fitting in steam, hydraulic, chemical, and high-pressure fluid systems governed by applicable piping codes.

This coupling is suited for 1-inch schedule piping in high-pressure industrial and commercial applications. Socketweld fittings at the 3000 lb pressure class are commonly found in refineries, power generation facilities, processing plants, and mechanical rooms where system pressures and temperatures exceed the limits of standard threaded fittings. The forged steel construction makes it appropriate for demanding service conditions including elevated temperature steam and high-pressure liquid lines.

Key Features

• Forged steel construction for high-strength, pressure-rated service
• 3000 lb pressure class for high-pressure piping systems
• Full coupling design joins two pipe ends in a straight run
• Socketweld end connections accept pipe for fillet weld joining
• 1-inch fitting size for standard 1-inch schedule pipe

Compatibility

Designed as an OEM-style socketweld full coupling for 1-inch schedule pipe in 3000 lb pressure class industrial and commercial piping systems.

Installation Notes

Installation must be performed by a qualified pipefitter or welder in accordance with applicable codes such as ASME B16.11 and the governing piping system standard. Depressurize and isolate the line completely before cutting in or removing existing fittings. Pipe ends must be cleaned, deburred, and properly gapped per welding procedure requirements before socket insertion. Do not apply pressure to the system until all welds have been completed, inspected, and cooled.

Technical Specifications

• Fitting Material: Forged Steel
• Fitting Size: 1 inch
• Pressure Rating: 3000 lb
• Type: Socketweld Full Coupling
• Item Weight: 0.55 pounds

Standard Information

• Brand: ASC Engineered Solutions
• Manufacturer Part Number: 362061004
