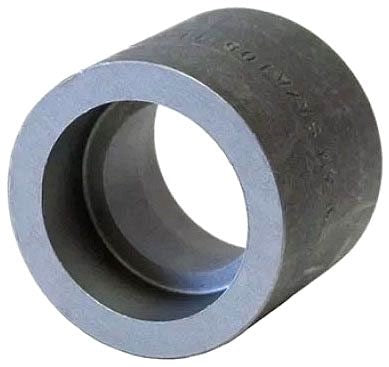

Asc 362060808 3/4 in 3000 Lb Forged Steel Socketweld Full Coupling

Product Description

The ASC Engineered Solutions 362060808 is a forged steel socketweld full coupling rated for 3000 lb service. Designed for high-pressure piping systems, this fitting accepts pipe into recessed sockets on both ends and is welded in place to create a permanent, leak-resistant joint. At 3/4 inch nominal pipe size, it suits branch lines and process piping where pressure integrity and weld-quality connections are required. Licensed pipefitters and plumbers working industrial, mechanical, or process piping applications turn to socketweld couplings like this one when threaded connections are not appropriate for the service conditions.

This coupling is suited for use in industrial process lines, high-pressure steam systems, hydraulic piping, and commercial mechanical installations where a full-bore inline connection is needed at 3/4 inch. The 3000 lb pressure class makes it appropriate for demanding service conditions in both new construction and retrofit piping work. Installation requires socket-fit pipe preparation and certified welding procedures in accordance with applicable codes.

Key Features

• Forged steel construction for strength in high-pressure and high-temperature service
• 3000 lb pressure class rating for demanding industrial and mechanical applications
• Socketweld end connections create full-penetration, permanent weld joints
• Full coupling design connects two pipe segments inline with full bore flow path
• 3/4 inch nominal size fits standard pipe used in branch and process lines
• Compact at 0.40 pounds for easy handling during installation

Compatibility

Designed as an OEM-style socketweld fitting for 3/4 inch nominal pipe in 3000 lb class industrial and commercial piping systems.

Installation Notes

Installation is performed by a licensed pipefitter or welder qualified per applicable welding codes such as ASME B31.1 or B31.3. The piping system must be fully depressurized, drained, and isolated before fitting work begins. Pipe ends must be cut square, deburred, and inserted to the full socket depth before tacking and welding. Do not use this socketweld fitting with threaded pipe ends or as a substitute for threaded couplings.

Technical Specifications

• Material: Forged Steel
• Fitting Size: 3/4 inch
• Pressure Rating: 3000 lb
• Connection Type: Socketweld Full Coupling
• Weight: 0.40 pounds

Standard Information

• Brand: ASC Engineered Solutions
• Manufacturer Part Number: 362060808
