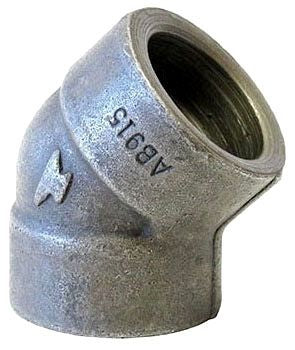

Asc 362013609 Forged Steel Socket Weld 45 Elbow 1-1/4 in

Product Description

The ASC Engineered Solutions 362013609 is a forged steel socket weld 45-degree elbow rated for 3000 lb pressure class service. Designed for high-pressure piping systems, this fitting accepts 1-1/4 inch pipe into a recessed socket bore and is welded in place for a permanent, leak-resistant connection. It changes pipe direction by 45 degrees in systems where space constraints or flow dynamics call for a gradual directional change rather than a 90-degree turn. Weighing 1.38 pounds, it is built for durability in demanding industrial and mechanical piping installations. Pipefitters and plumbers working on pressure piping specify this class of fitting where threaded connections are not acceptable.

This elbow is suited for use in high-pressure steam, compressed air, hydraulic, oil, and gas piping systems where socket weld construction is required. The 3000 lb pressure class rating makes it appropriate for medium- to high-pressure service lines in industrial plants, commercial mechanical rooms, and process piping applications. Socket weld fittings at this pressure class are commonly specified on lines 2 inches and smaller where full-penetration butt welds are not practical.

Key Features

• Forged steel construction for strength in high-pressure service
• Socket weld end connection for a permanent, welded joint
• 45-degree elbow geometry for directional changes with reduced turbulence
• 1-1/4 inch fitting size for standard pipe of that nominal diameter
• 3000 lb pressure class rating for medium- to high-pressure piping systems

Compatibility

Designed as an OEM-style socket weld fitting for 1-1/4 inch nominal pipe in 3000 lb pressure class piping systems. Consult applicable piping specifications and weld procedures to confirm suitability for the specific service fluid and operating conditions.

Installation Notes

Installation must be performed by a qualified pipefitter or welder in accordance with applicable codes such as ASME B31.1 or B31.3 for pressure piping. Depressurize and drain the line fully before cutting into any existing system. Socket weld fittings require a small gap between pipe end and socket bore bottom prior to welding to allow for thermal expansion during the weld process. All welds should be inspected per the governing piping specification before returning the line to service.

Technical Specifications

• Fitting Size: 1-1/4 inches
• Elbow Degree: 45 degrees
• Connection Type: Socket Weld
• Pressure Class: 3000 lb
• Fitting Material: Forged Steel
• Weight: 1.38 pounds

Standard Information

• Brand: ASC Engineered Solutions
• Manufacturer Part Number: 362013609
