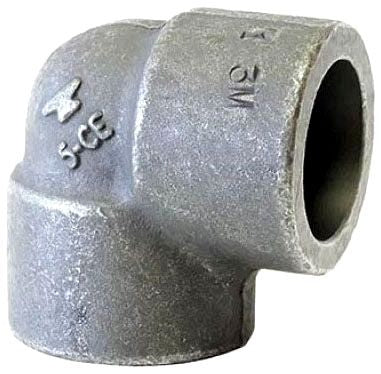

Asc 362001406 Forged Steel Socket Weld 90 Elbow 1-1/4 in

Product Description

The ASC ENGINEERED SOLUTIONS 362001406 is a forged steel socket weld 90-degree elbow rated for 3000 lb pressure class service. It provides a full 90-degree change of direction in high-pressure piping systems and is joined by socket welding to mating pipe. Built from forged steel, this fitting delivers the strength and integrity required in demanding industrial and mechanical piping applications. At 1-1/4 inches, it suits mid-range pipe runs where robust pressure handling is critical. Pipefitters and pipe welders install this fitting as part of code-compliant socket weld assemblies on steam, oil, gas, and hydraulic lines.

This elbow is suited for high-pressure industrial piping systems, mechanical rooms, refineries, process plants, and similar commercial or industrial environments where socket weld fittings are specified. The 3000 lb pressure class rating makes it appropriate for moderate- to high-pressure service lines. It is a standard fitting type widely used in steam distribution, compressed air, and hydraulic piping where a reliable 90-degree directional change is required at a 1-1/4 inch pipe connection point.

Key Features

• Forged steel construction for high strength and pressure integrity
• 90-degree elbow geometry provides a full quarter-turn directional change
• Socket weld end connections for full-penetration weld joints
• 3000 lb pressure class rating for demanding service conditions
• 1-1/4 inch fitting size suits mid-range pipe run applications

Compatibility

Designed as an OEM-style socket weld fitting for use with 1-1/4 inch schedule pipe in 3000 lb class piping systems per standard socket weld fitting specifications.

Installation Notes

Installation is performed by qualified pipefitters or pipe welders following applicable codes such as ASME B31.1 or B31.3 for pressure piping. Depressurize and isolate the line completely before cutting into any existing piping. Socket weld joints require proper gap clearance between pipe end and socket seat before welding to prevent cracking. All welds should meet the inspection requirements of the governing piping code for the system in service.

Technical Specifications

• Fitting Size: 1-1/4 inches
• Elbow Degree: 90 degrees
• Fitting Material: Forged Steel
• Connection Type: Socket Weld
• Pressure Class: 3000 lb
• Weight: 1.58 pounds

Standard Information

• Brand: ASC ENGINEERED SOLUTIONS
• Manufacturer Part Number: 362001406
