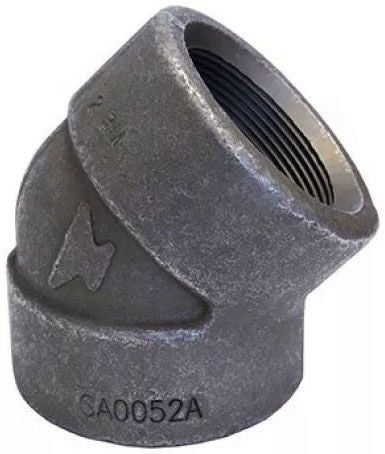

Asc 361110000 Forged Steel 45 Deg Elbow 1/8 in 3000 Lb

Product Description

The ASC Engineered Solutions 361110000 is a forged steel 45-degree elbow fitting designed for high-pressure threaded piping systems. Rated at 3000 lb pressure class, it provides a reliable directional change in small-bore pipe runs. The fitting measures 1/8 inch and features female threaded connections on both ends, making it suitable for applications where a compact 45-degree offset is required without welding. Licensed plumbers and pipefitters install this type of fitting in industrial, mechanical, and commercial piping systems where pressure integrity and material strength are critical.

This elbow is used in threaded piping assemblies operating at elevated pressures, including steam, hydraulic, and process piping applications. The 3000 lb pressure class rating makes it appropriate for demanding mechanical systems in commercial and industrial environments. Its small 1/8 inch bore size suits instrument lines, pilot lines, and other small-diameter connections common in HVAC, plumbing, and industrial process work.

Key Features

• 45-degree elbow angle for directional change in tight spaces
• 3000 lb pressure class rating for high-pressure service
• Forged steel construction for strength and durability
• Female threaded on both ends for easy threaded pipe connection
• 1/8 inch fitting size suited for small-bore instrument and pilot lines

Compatibility

Designed as an OEM-style replacement or new-installation component for 1/8 inch threaded pipe systems requiring a 3000 lb class forged steel 45-degree elbow.

Installation Notes

Installation should be performed by a licensed pipefitter or plumber in accordance with applicable mechanical codes. Shut down and depressurize the system fully before removing or installing any threaded fittings. Apply appropriate thread sealant or PTFE tape to male threads before assembly. Do not overtighten; use proper pipe wrenches and follow standard torque practices for the pipe size and material.

Technical Specifications

• Fitting Size: 1/8 inch
• Elbow Degree: 45 degrees
• Pressure Class: 3000 lb
• Fitting Material: Forged Steel
• Connection Type: Female Threaded x Female Threaded
• Item Weight: 0.34 pounds

Standard Information

• Brand: ASC Engineered Solutions
• Manufacturer Part Number: 361110000
