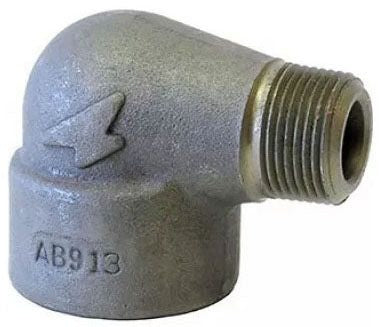

Asc 361109556 Forged Steel 90 Street Elbow 1 in 3000 Lb

Product Description

The ASC Engineered Solutions 361109556 is a 1-inch forged steel 90-degree street elbow rated for 3000 lb pressure class service. Street elbows combine a male-threaded end with a female-threaded end in a single fitting, eliminating the need for an additional nipple when making a directional change in a piping run. At 2.15 pounds, this forged steel construction delivers the wall thickness and strength required for high-pressure threaded piping systems. Licensed plumbers, pipefitters, and mechanical contractors install this type of fitting in compressed air, steam, hydraulic, and process piping applications where a 90-degree change in direction is needed.

This fitting is suited for industrial and commercial piping systems operating under elevated pressure conditions. The 3000 lb pressure class rating makes it appropriate for high-pressure service lines where standard 150 lb or 300 lb cast fittings are not adequate. Typical installations include plant utility lines, compressed gas distribution, and hydraulic systems requiring reliable threaded connections at directional changes. The 1-inch size fits standard NPT threaded pipe of the same nominal diameter.

Key Features

• Forged steel construction for high-pressure and high-stress applications
• 90-degree street elbow configuration with male and female threaded ends in a single body
• 3000 lb pressure class rating for elevated-pressure service
• 1-inch fitting size fits standard NPT threaded pipe
• Eliminates the need for an additional nipple at directional changes

Compatibility

Designed as an OEM-style threaded street elbow for 1-inch NPT high-pressure piping systems rated to 3000 lb pressure class.

Installation Notes

Installation should be performed by a licensed pipefitter or plumber in accordance with applicable mechanical and plumbing codes. Depressurize and isolate the piping system fully before removing or installing any threaded fitting. Apply an appropriate thread sealant or PTFE tape to the male threads before assembly, and tighten to a snug, leak-free connection without overtightening, which can crack fittings or distort threads. Pressure-test the system after installation before returning it to service.

Technical Specifications

• Fitting Size: 1 inch
• Elbow Degree: 90 degrees
• Type: Street Elbow Male Threaded
• Pressure Class: 3000 lb
• Fitting Material: Forged Steel
• Item Weight: 2.15 pounds

Standard Information

• Brand: ASC Engineered Solutions
• Manufacturer Part Number: 361109556
