Asc 361100209 Forged Steel 90 Elbow 1/8 in 3000 Lb

Product Description

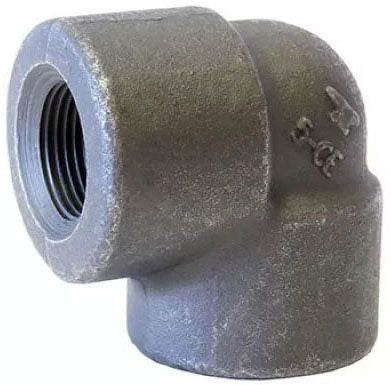

The ASC Engineered Solutions 361100209 is a forged steel female-threaded 90-degree elbow fitting rated for 3000 lb pressure service. Designed for use in high-pressure piping systems, this elbow provides a 90-degree directional change in a threaded pipeline using a female-to-female connection on both ends. At 0.42 pounds and sized at 1/8 inch, this compact fitting suits tight-clearance installations where a reliable, pressure-rated directional change is needed. Licensed plumbers, pipefitters, and industrial mechanics working on steam, hydraulic, or compressed-gas lines commonly install this class of fitting.

This 3000 lb pressure class elbow is intended for small-bore threaded pipe applications in both commercial and industrial settings. The 1/8 inch female-threaded design on both ends accepts standard tapered pipe threads, making it suitable for instrumentation lines, compressed air systems, hydraulic circuits, and similar high-pressure service environments where a compact, right-angle connection is required.

Key Features

• 3000 lb pressure class rating for high-pressure service applications
• Female threaded on both ends for straightforward threaded pipe assembly
• 1/8 inch fitting size suits small-bore instrumentation and utility lines
• Forged steel construction provides strength and durability under pressure
• 90-degree turn allows directional changes in confined or space-limited installations
• Lightweight at 0.42 pounds for easy handling during installation

Compatibility

Designed as an OEM-style replacement or new-installation component for 1/8 inch NPT threaded pipe systems rated to 3000 lb pressure class in commercial and industrial piping applications.

Installation Notes

Installation is performed by licensed plumbers or pipefitters in accordance with applicable ASME and IFGC piping codes. Depressurize and isolate the system completely before removing or installing any threaded fittings. Apply an appropriate thread sealant or PTFE tape to male threads before assembly and tighten to a snug, leak-free fit without over-torquing the small-bore threads. Inspect all connections for leaks after restoring system pressure.

Technical Specifications

• Fitting Size: 1/8 inch
• Pressure Class: 3000 lb
• Connection Type: Female Threaded x Female Threaded
• Weight: 0.42 pounds

Standard Information

• Brand: ASC Engineered Solutions
• Manufacturer Part Number: 361100209
