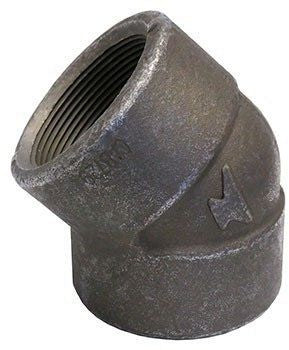

Asc 361012800 Forged Steel 45 Degree Elbow 3/4 Inch

Product Description

The ASC Engineered Solutions 361012800 is a 3/4-inch forged steel threaded 45-degree elbow rated for Class 2000 service. This fitting is designed to change pipe direction by 45 degrees in high-pressure threaded piping systems. Forged steel construction provides superior strength and pressure resistance compared to cast fittings, making it a reliable choice for demanding industrial and mechanical installations. Licensed plumbers and pipefitters install this type of fitting in gas, steam, and liquid service lines where directional changes are required without welding.

This elbow is suited for use in commercial and industrial piping systems requiring Class 2000 pressure-rated threaded connections. Typical applications include compressed air distribution, steam lines, hydraulic systems, and high-pressure gas piping. The 3/4-inch thread size fits standard NPT pipe of the same nominal diameter. It is commonly used in mechanical rooms, industrial facilities, and process piping environments where forged steel fittings are specified over malleable iron or cast alternatives.

Key Features

• Forged steel construction for high-pressure Class 2000 rated service
• 45-degree elbow geometry for gradual directional changes in tight runs
• 3/4-inch threaded ends for standard NPT connections
• Weighs 0.59 pounds for easy single-hand handling during installation
• Suitable for gas, steam, liquid, and compressed air service lines

Compatibility

Designed as an OEM-style replacement or new-installation fitting for Class 2000 threaded forged steel piping systems using 3/4-inch nominal NPT pipe connections.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable plumbing and mechanical codes, including ASME B31.1 or B31.3 where required. Depressurize and isolate the piping system completely before disassembling or installing any threaded fittings. Apply an appropriate thread sealant or PTFE tape to male threads before assembly. Do not over-tighten threaded connections, as this can crack fittings or damage threads.

Technical Specifications

• Fitting Size: 3/4 inches
• Elbow Degree: 45 degrees
• Pressure Class: 2000
• Fitting Material: Forged Steel
• Connection Type: Threaded (NPT)
• Item Weight: 0.59 pounds

Standard Information

• Brand: ASC Engineered Solutions
• Manufacturer Part Number: 361012800
