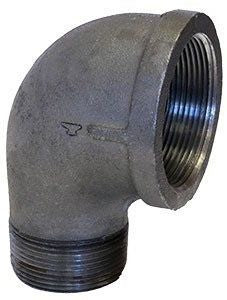

Asc 310019807 Black Malleable Iron Reducing Street 90 Elbow

Product Description

The ASC Engineered Solutions 310019807 is a reducing street 90-degree elbow made from black malleable iron. It transitions from a 1-1/2 inch male end to a 1-1/4 inch female end in a single fitting, eliminating the need for a separate nipple at the male inlet. The 90-degree bend redirects pipe runs in tight spaces without additional couplings. This fitting is domestically manufactured and suited for use in threaded pipe assemblies where space and weight matter. Licensed plumbers and pipefitters install this type of fitting in low-pressure gas, water, and steam distribution systems per applicable code requirements.

This reducing street 90 elbow is used in residential and light commercial piping systems where a direction change and size reduction are needed at the same connection point. Typical applications include natural gas branch lines, steam heating distribution, compressed air, and water service piping. The street configuration allows the male end to thread directly into an existing female fitting or valve, making it a common choice during retrofit and repair work where minimizing overall assembly length is a priority.

Key Features

• Reduces from 1-1/2 inches to 1-1/4 inches in a single 90-degree fitting
• Street design with male inlet threads directly into existing female fittings
• Black malleable iron construction for durability in gas and steam service
• Domestically manufactured
• Standard NPT threading compatible with threaded pipe assemblies

Compatibility

Designed as an OEM-style replacement or new-installation fitting for standard NPT threaded malleable iron pipe systems in residential and commercial plumbing and gas piping applications.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with the applicable edition of the International Plumbing Code or International Fuel Gas Code. Shut off and depressurize the line before disassembly or installation. Apply an approved thread sealant or PTFE tape to all male threads before assembly. Do not over-tighten; use a pipe wrench to achieve a firm, leak-free connection and inspect for leaks under pressure before returning the system to service.

Technical Specifications

• Fitting Material: Malleable Iron
• Coating: Black
• Fitting Size: 1-1/2 inches X 1-1/4 inches
• Elbow Degree: 90
• Type: Reducing Street Elbow
• Weight: 1.18 pounds
• Country of Origin: Domestic

Standard Information

• Brand: ASC Engineered Solutions
• Manufacturer Part Number: 310019807
