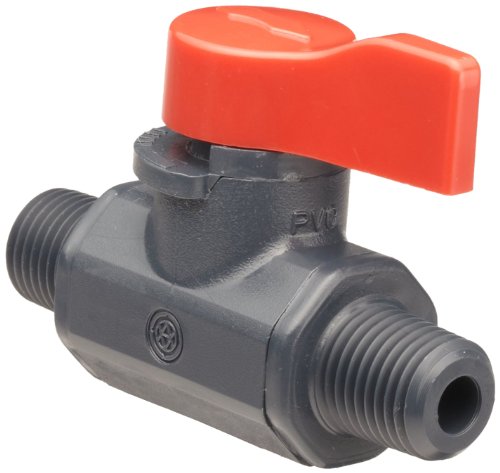

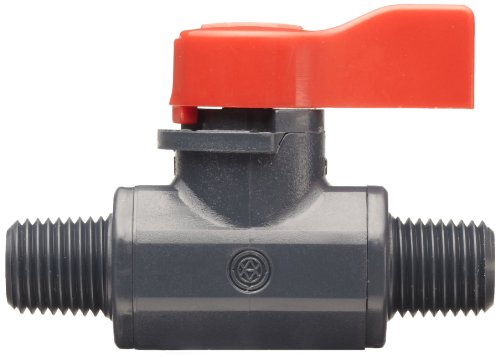

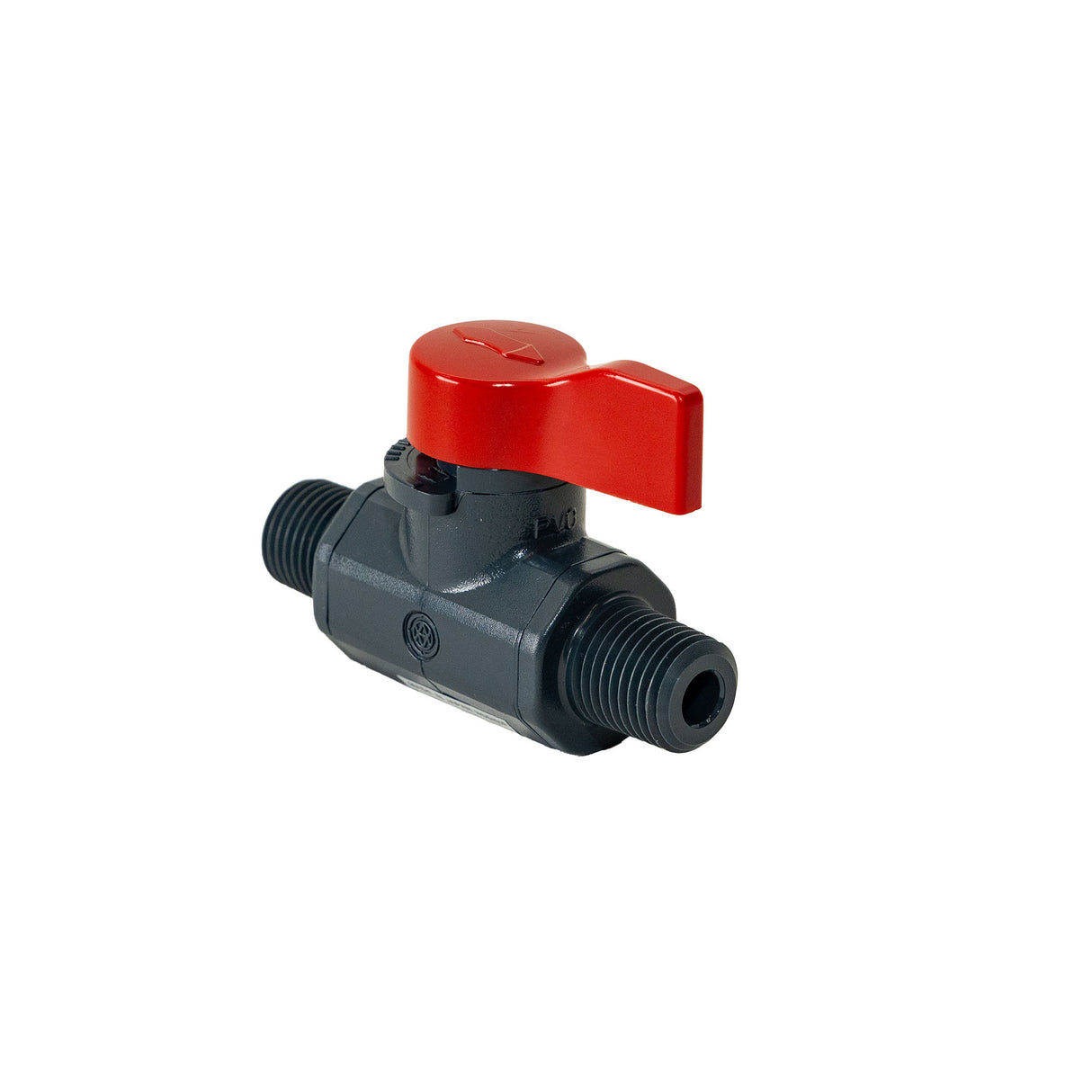

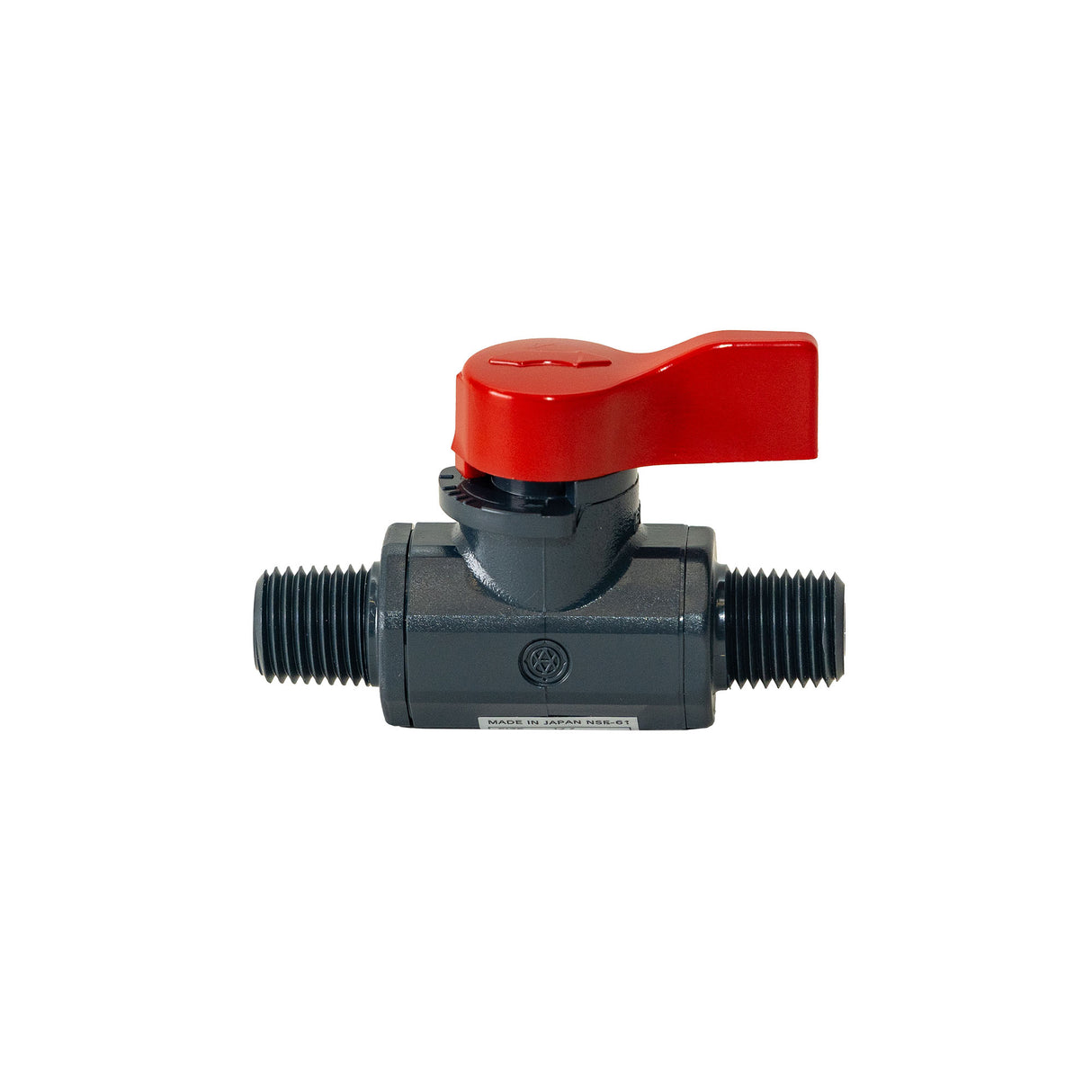

Asahi America 1077002 Labcock PVC Ball Valve 1/4 inches NPT Male

Product Description

The ASAHI AMERICA 1077002 Labcock PVC Ball Valve is an inline, unibody valve with a lever handle and 1/4" NPT male connection. Constructed of PVC conforming to ASTM D1784, it features EPDM O-rings and is rated to 150psi at 70°F. Ideal for process control monitoring and fluid sampling, it offers precise fingertip control and calibrated flow indication.

• Constructed of PVC conforming to ASTM D1784
• Features EPDM O-rings
• Rated to 150psi at 70°F

Product Highlights

This Labcock ball valve is designed for durability and precise control in laboratory and industrial applications.

Product Information

Standard Information

• Brand: ASAHI AMERICA
• Manufacturer Part Number: 1077002
• Country of Origin: Japan

Technical Specifications

• Brand: ASAHI AMERICA
• MPN: 1077002
• Category Root: Industrial & Scientific
• Category Sub: Ball Valves
• Manufacturer: Asahi America
• Number of Items: 1.0
• Part ID / MPN: 1077002
• Product Group: BISS
• Product Type: VALVE
• Size: 1/4 in
• Connection Type: Male Thread x Male Thread
• Material: PVC
• Ball Material: PVC
• Stem Material: PVC
• Operating Temperature [Max]: 120 °F
• Operating Pressure [Max]: 150 psi
• Cv Coefficient: 1.2
• End Type: Male Thread
• End Size: 1/4
• Second End Type: Male Thread
• Second End Size: 1/4
• Valve Operator: Direct Handle
• Thread Length (L1): 0.51 in
• Thread Length (L2): 0.51 in
• Length: 2.60 in
• Height: 1.38 in
• Length Handle: 1.18 in
• Nominal Size: 1/4"
• Connections: MPT
• Seals: EPDM
• Maximum Pressure (psi): 150
• Maximum Temperature (°F): 120
• Country of Origin: Japan
• Handle Material: ABS
• PSI: 150
• Body Style: Inline
• Ball Port Style: Full Port
• Valve Ways: 2-Way
• Valve Structure: One-Piece
• For Media: Water
• Item: Ball Valve
• Stem Type: 1-Piece Stem
• Seat Material: PTFE
• Handle Type: Lever
• Compliance: ISO 9001
• Temp. Range: 30 Degrees to 120 Degrees F
• Ball Valve Product Group: Manual
• Body Material: Plastic
• Standards: ASTM D1784
• Seal Material: EPDM
• Type: LEVER HANDLE
• 3-A Standard Compliance: Not Rated
• Maximum Pressure - Combustible Gas: Not Rated
• NSF Certifications for Food and Drinking Water: NSF 61
• Operating Temperature - Minimum: 30 Degrees F
• Connection Type - Side 2: NPT
• Connection Gender - Side 2: Male
• Connection Type - Side 1: NPT
• Connection Gender - Side 1: Male
• Coefficient of Volume (Cv): 1.2
• Maximum Pressure - Steam: Not Rated
