Product Description

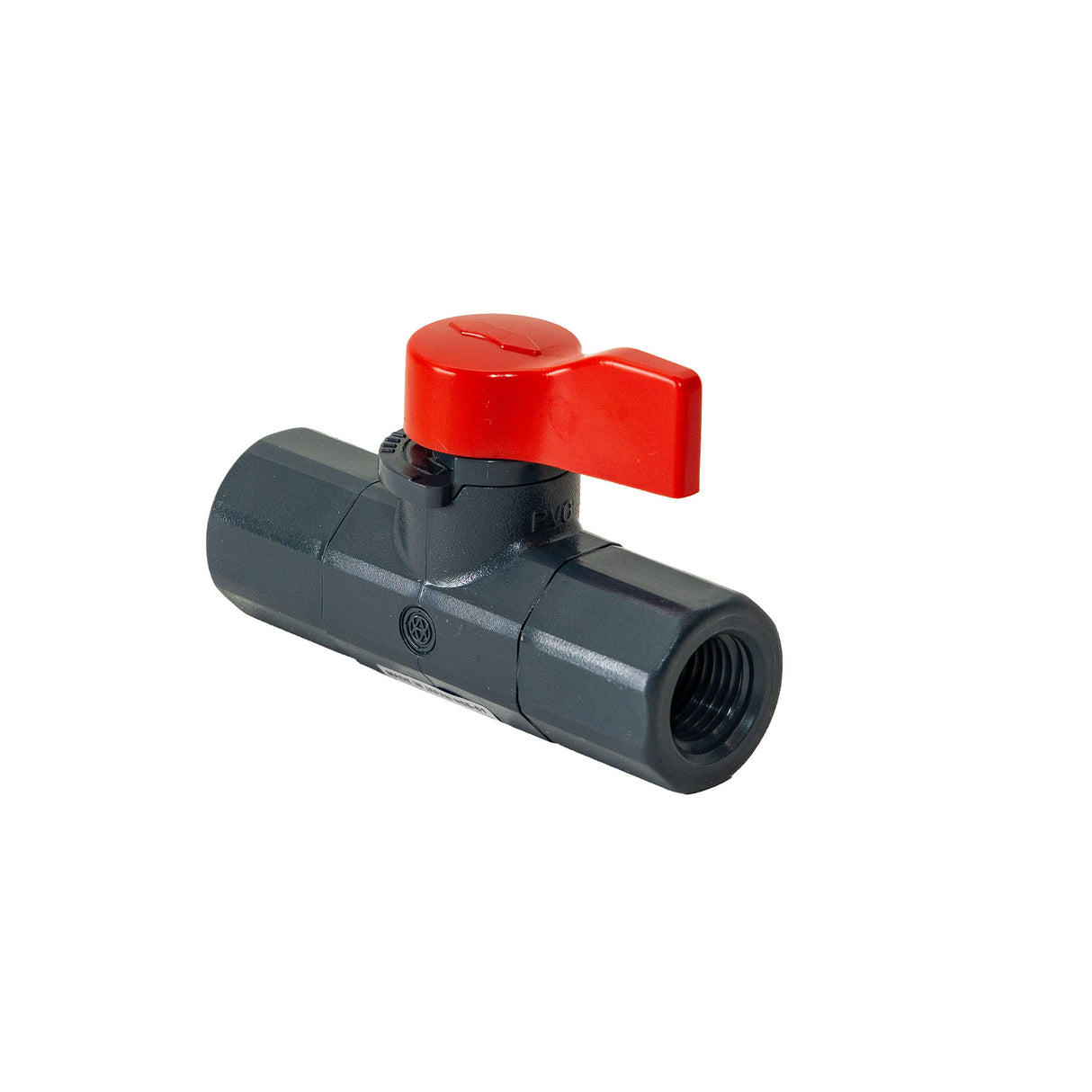

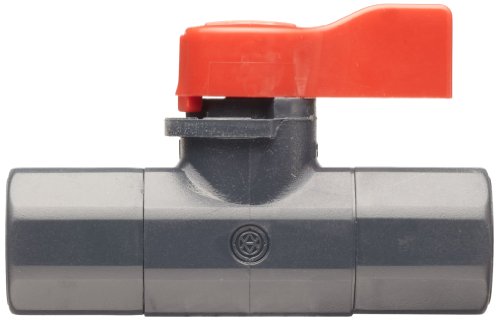

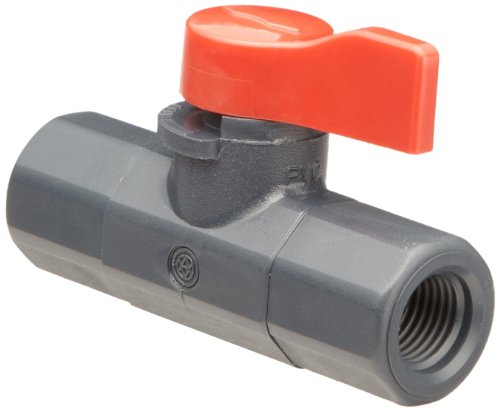

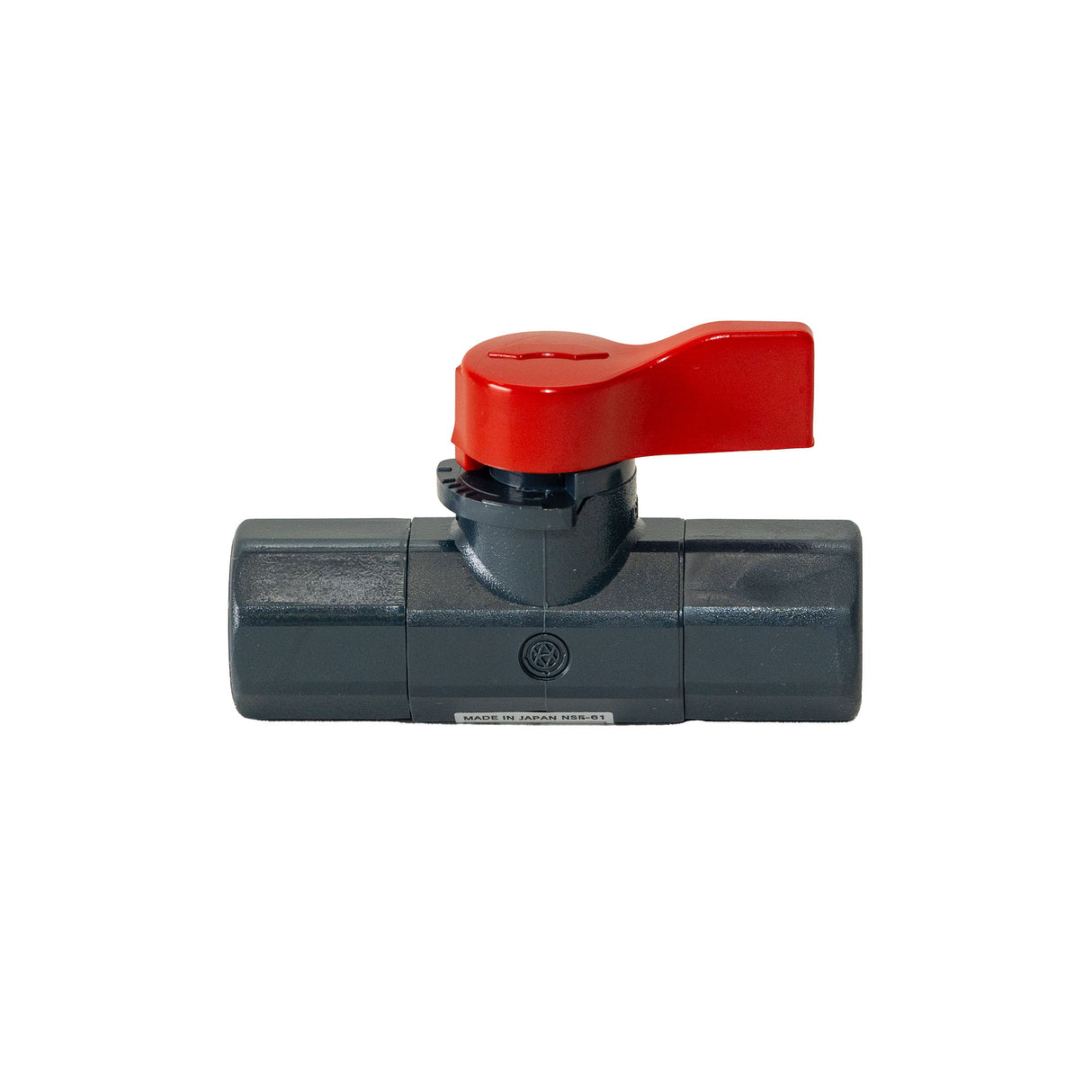

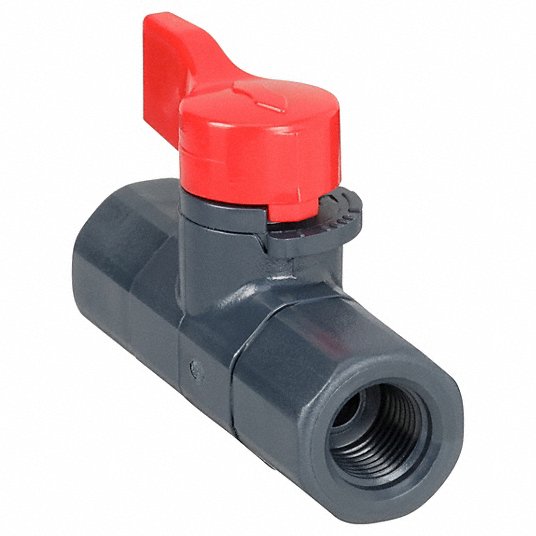

The ASAHI AMERICA 1076002 Labcock PVC Ball Valve is an inline, unibody valve with a lever and a 1/4" NPT Female connection. Constructed from PVC conforming to ASTM D1784, it features EPDM O-rings and is rated to 150psi at 70°F. Ideal for process control monitoring and fluid sampling, it can be used for on/off service or calibrating flow.
- Compact, unibody construction
- Lever handle for easy operation
- Calibrated flow indicator
Product Highlights
This PVC ball valve offers precise fingertip control and rugged construction for chemical processing, water, and wastewater applications.
Product Information
Standard Information
-
Brand: ASAHI AMERICA
-
Manufacturer Part Number: 1076002
-
Country of Origin: JP
Technical Specifications
-
Brand: ASAHI AMERICA
-
Manufacturer: Asahi America
-
Model / MPN: 1076002
-
Size: 1/4 Inch
-
Number of Items: 1.0
-
Connection Type: Female Thread x Female Thread
-
Material: PVC
-
Ball Material: PVC
-
Stem Material: PVC
-
Operating Temperature [Min]: 0 °F
-
Operating Temperature [Max]: 120 °F
-
Operating Pressure [Max]: 150 psi
-
Cv Coefficient: 1.6
-
End Type: Female Thread
-
End Size: 1/4
-
Second End Type: Female Thread
-
Second End Size: 1/4
-
Valve Operator: Direct Handle
-
Thread Length (L1): 0.59 in
-
Thread Length (L2): 0.59 in
-
Length: 2.80 in
-
Height: 1.38 in
-
Length Handle: 1.18 in
-
Type: Labcock Valve
-
Nominal Size: 1/4"
-
Connections: FPT
-
Seals: EPDM
-
Weight (lb): 0.140
-
Maximum Pressure (psi): 150
-
Maximum Temperature (°F): 120
-
Country of Origin: JP
-
Features: Manual Two-Way Ball Valve, Body Material PVC, For Media Water, Va
-
Power Source: N/A
-
Number of Batteries: N/A
-
Battery Size: N/A
-
Battery Included: No
-
Motor Type: N/A
-
Battery Capacity: N/A
-
Battery Life: N/A
-
Cable Length: N/A
-
Seal Material: EPDM
-
Size in Inches: 1/4 inch
-
Handle Material: ABS
-
PSI: 150
-
Actuation: Manual
-
Gender: Female
-
Mfg: Asahi/America
-
Pipe Size: 1/4 IN
-
Threading: IPS
-
Valve Type: Ball Valve
-
For Media: Water
-
Body Material: PVC
-
Valve Construction: One-Piece
-
Valve Body Style: Straight
-
Ball Port Style: Full
-
Port: Nominal Valve Size
-
Connection Type - Side 1: NPT
-
Connection Gender - Side 1: Female
-
Connection Size - Side 1: 1/4 in
-
Connection Gender - Side 2: Female
-
Connection Size - Side 2: 1/4 in
-
Max. Pressure (CWP): 150 psi
-
Max. Pressure (Combustible Gas): Not Rated
-
Seat Material: PTFE
-
Media Temp. Range: 0 °F to 120 °F
-
3-A Compliance: Not Rated
-
NSF Certifications for Food and Drinking Water: NSF 61
-
Standards: ASTM D1784
-
Overall Length: 2.8 in
-
UNSPSC: 40141607
-
Weight: 0.0900
-
Width: 2.000
-
Depth: 2.000
-
Voltage: N/A
