ASAHI 1728040 Pool-Pro 4 PVC Butterfly Valve

Product Description

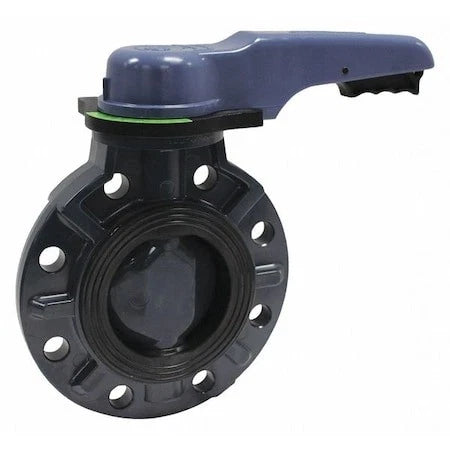

The ASAHI Pool-Pro 1728040 is a four-inch PVC butterfly valve suited for water applications. It is made of PVC, EPDM, and stainless steel materials for robust performance in diverse environments. The valve has flanged connections and features a blue lever handle for ease of manual operation.

• Max pressure rating of 150 psi and temperature range from 30 to 120 degrees Fahrenheit.
• ISO mounting pad allows for easy installation of accessories like stem extensions.
• Suitable for use in chlorinated water applications.

Product Highlights

This valve is designed for complete submersion and includes an eighteen-position throttle plate for precise adjustments.

Product Information

Standard Information

• Brand: ASAHI/America
• Nominal Size: 4 inches

Technical Specifications

• Material: PVC/PVC/EPDM
• Disc Material: PVC
• Stem Material: Stainless Steel
• Max Pressure: 150 psi
• Max Temperature: 120 degrees Fahrenheit
• Number of Bolt Holes: 8
• Handle Type: Lever
• Suitable Media: Water
