Arzel Zoning Technology PVC-PURPLE Pvc Tubing 200 Feet

Product Description

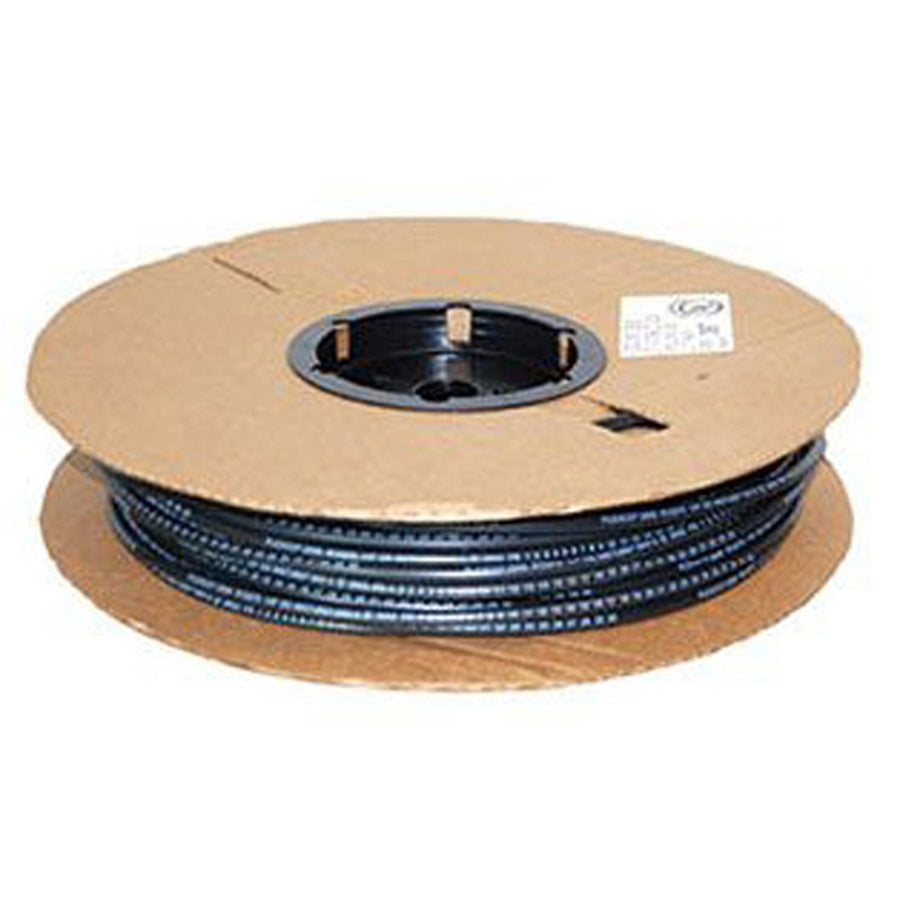

The ARZEL ZONING TECHNOLOGY PVC-PURPLE is a 200-foot coil of PVC pneumatic control tubing finished in black with a purple stripe for easy circuit identification. This tubing carries low-pressure pneumatic signals between a zoning control panel and damper actuators in forced-air HVAC zoning systems. The purple stripe follows standard color-coding conventions used by zoning installers to distinguish individual zone circuits and reduce wiring errors during installation. HVAC technicians and zoning specialists install this tubing during new construction or retrofit zoning projects where multiple independently controlled zones are required.

This tubing is suited for both residential and light commercial forced-air zoning applications. It is routed through walls, ceilings, and mechanical spaces to connect zone control panels to pneumatic damper actuators throughout the duct system. The 200-foot coil length accommodates larger floor plans or multi-zone systems with longer runs between the air handler and remote damper locations.

Key Features

• PVC construction provides flexibility for routing through tight spaces and mechanical areas
• Black base color with purple stripe enables quick zone-circuit identification at the panel and at each actuator
• 200-foot coil length supports multi-zone residential and commercial installations
• Rated for residential and commercial HVAC zoning system use
• Color-coded design reduces installation errors when managing multiple pneumatic circuits

Compatibility

Designed for use in residential and commercial forced-air HVAC pneumatic zoning systems. Confirm tubing outside diameter is compatible with the pneumatic fittings on the specific zoning control panel and actuators being used before installation.

Installation Notes

Installation is typically performed by a licensed HVAC technician familiar with pneumatic zoning systems. Power down the zoning control panel before connecting or disconnecting tubing at the control board terminals. Route tubing away from sharp edges, heat sources, and pinch points, and secure at regular intervals to prevent sagging or kinking. Follow the zoning system manufacturer's layout diagram and local mechanical code requirements when planning tubing runs.

Technical Specifications

• Material: PVC
• Color: Black with Purple Stripe
• Length: 200 feet
• Application: Residential, Commercial

Standard Information

• Brand: ARZEL ZONING TECHNOLOGY
• Manufacturer Part Number: PVC-PURPLE
