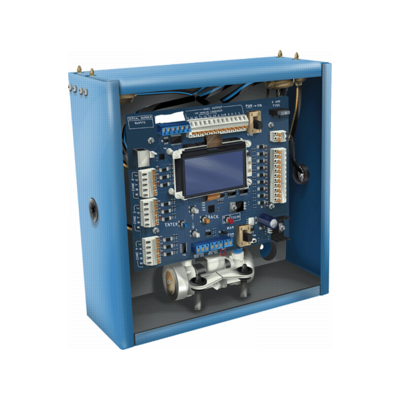

Arzel Zoning Technology PAN-HPP03 HeatPumPro 3-Zone Panel 24V (3-Zone) PAN-HPP03

Product Description

Arzel Zoning Technology PAN-HPP03 is a HeatPumPro 3-zone pneumatic zoning panel designed for HVAC zoning control. The PAN-HPP03 operates with standard 24V systems and supports split, geothermal, heat pump, furnace, and air conditioner equipment. It provides menu-driven setup with software programming and an LCD display, accepts standard 4-wire thermostats, and offers proactive staging with outdoor reset, dual fuel control, modulating bypass, and independent blower and compressor staging.

• Pneumatically operated 3-zone panel compatible with standard 24V control systems, including split, geothermal, heat pump, furnace, and AC
• Menu-driven setup wizard and software programming with LCD display; compatible with standard 4-wire thermostats
• Proactive staging with outdoor reset, dual fuel control, modulating bypass port, independent blower and compressor staging, replaceable fuse protection, and manual pump switch for testing

Product Highlights

3-zone pneumatic zoning panel with LCD setup, outdoor reset staging, modulating bypass, and zone weight display; made in the USA.

Product Information

Standard Information

• Brand: ARZEL ZONING TECHNOLOGY
• Manufacturer Part Number: PAN-HPP03
• Country of Origin: United States

Technical Specifications

• Brand: ARZEL ZONING TECHNOLOGY
• Manufacturer Part Number: PAN-HPP03
• Series: HeatPumPro
• Product Type: Zone panel, 3-zone
• Number of Zones: 3
• Operation: Pneumatically operated
• Compatibility: Standard 24V control systems; compatible with split, geothermal, heat pump, furnace, and air conditioner equipment
• Input Voltage: 24V (standard control systems)
• Setup: Menu-driven setup wizard; software-based programming
• Display: LCD display
• Thermostat Compatibility: Works with standard 4-wire thermostats
• Staging: Proactive staging with outdoor reset; independent blower and compressor staging
• Dual Fuel Control: Yes
• Bypass: Modulating bypass port
• Sensors: Outdoor and leaving air temperature sensing
• Zone Weight Display: Zone weight percentage display
• Protection: Replaceable fuse protection
• Terminals: Lever-style terminals
• Manual Test: Manual pump switch opens all dampers for testing
• Country of Origin: Made in the USA
