Arzel STKSB-E-8X16 EzySlide zone damper (8 x 16)

Product Description

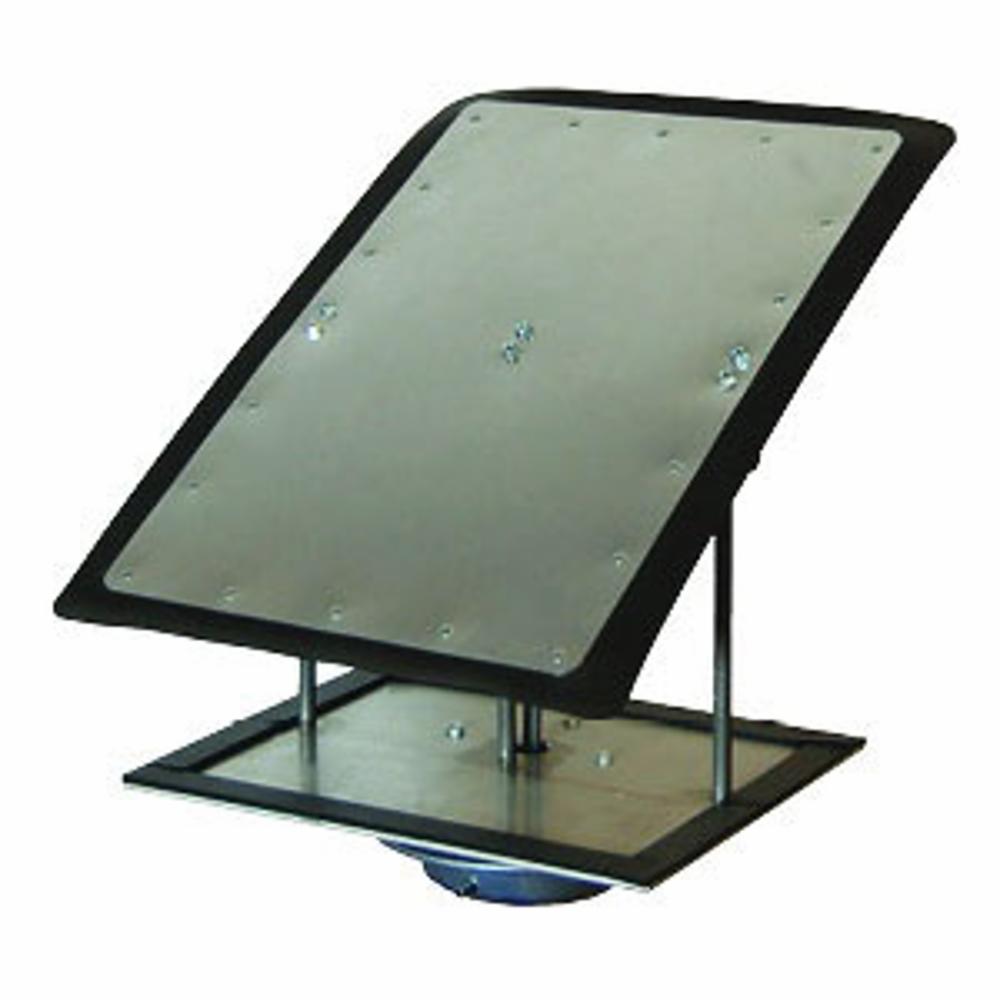

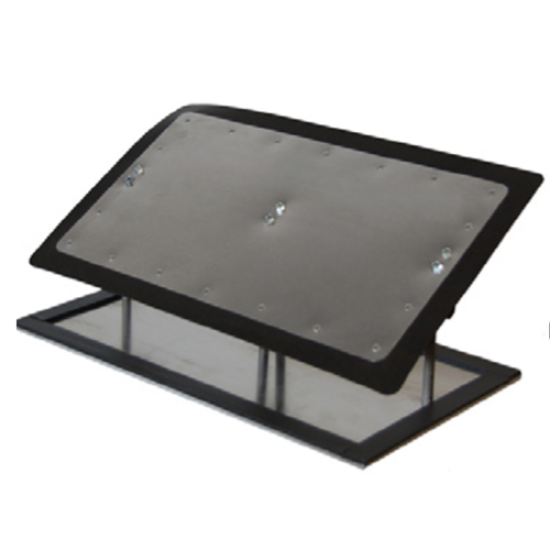

Arzel STKSB-E-8X16 is an EzySlide rectangular bottom-mount zone damper designed for retrofit duct applications. It is pneumatically operated and motorless, with the actuator driven by low-pressure air supplied from an industrial mini-pump within the Arzel control panel. The damper inserts into existing ductwork (8 in x 16 in), aligns and fastens with sheet metal screws, and offers universal compatibility.

• Pneumatically operated, motorless design; actuator driven by low-pressure air from an industrial mini-pump.
• Rectangular EzySlide bottom-mount damper, dimensions 8 in H x 16 in W; mounting plate and actuator on bottom.
• Retrofit installation: cut access hole, insert and twist to align, fasten with sheet metal screws and attach tubing; universal compatibility; made in USA.

Product Highlights

Motorless pneumatic 8 in x 16 in bottom-mount zone damper for retrofit ductwork.

Product Information

Standard Information

• Brand: ARZEL ZONING TECHNOLOGY
• Manufacturer Part Number: STKSB-E-8X16
• Country of Origin: United States

Technical Specifications

• Brand: Arzel Zoning Technology
• Manufacturer Part Number: STKSB-E-8X16
• Product Type: Zone damper
• Series: EzySlide
• Mounting Type: Bottom-mount
• Dimensions: 8 in H x 16 in W
• Shape: Rectangular
• Operation: Pneumatically operated (actuator driven by low-pressure air)
• Motor: Motorless
• Installation: Inserts into existing ductwork; cut access hole, insert and twist to align, fasten with sheet metal screws, attach tubing
• Compatibility: Universal compatibility
• Intended Use: Retrofit applications
• Country of Origin: USA
• Alternate Part Numbers: APR Part # 1379945, Part # 564896
