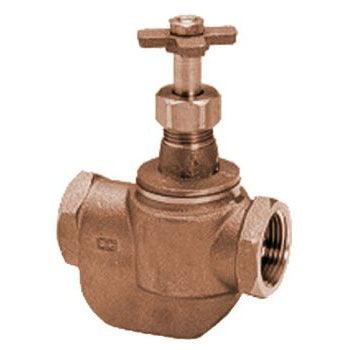

Arrowhead Brass Plumbing CH100RS-075 3/4 in Straight Valve

Product Description

The ARROWHEAD BRASS PLUMBING CH100RS-075 is a 3/4-inch manual straight valve featuring a rising swivel stem design. It controls water flow in a straight-line configuration, making it well suited for inline shutoff applications in residential and light commercial plumbing systems. The rising swivel stem allows the operator to visually confirm valve position as the stem rises when the valve is opened. Licensed plumbers and qualified tradespeople typically install and service this type of valve in potable water supply lines, irrigation laterals, and general shutoff applications.

This valve is designed for use in standard 3/4-inch plumbing installations where a manual straight-pattern shutoff is required. Typical applications include residential water service lines, irrigation supply laterals, and mechanical room distribution piping. The straight-body configuration keeps the flow path direct, minimizing pressure drop through the valve body. It is appropriate for both new construction rough-in and retrofit service work.

Key Features

• 3/4-inch straight valve body for direct inline installation
• Rising swivel stem provides visual open/closed indication
• Manual operation with no actuator or power source required
• Straight-pattern flow path minimizes pressure loss through the valve
• Champion series construction from ARROWHEAD BRASS PLUMBING

Compatibility

Designed as an OEM-style replacement or new-installation straight valve for 3/4-inch plumbing supply lines in residential and light commercial systems.

Installation Notes

Installation should be performed by a licensed plumber in accordance with local plumbing codes and the International Plumbing Code (IPC). Shut off the upstream water supply and relieve system pressure before removing or installing the valve. Ensure the valve body orientation matches the flow direction indicated on the body before making final connections. Do not overtighten threaded connections; use appropriate thread sealant or tape as required by local code.

Technical Specifications

• Connection Size: 3/4 inches
• Valve Type: Manual Straight Valve
• Stem Type: Rising Swivel Stem

Standard Information

• Brand: ARROWHEAD BRASS PLUMBING
• Manufacturer Part Number: CH100RS-075
