Arrowhead Brass & Plumbing 965lf Arrow-Breaker® Garden Valve 1/2” & 3/4” Nested FIP

Product Description

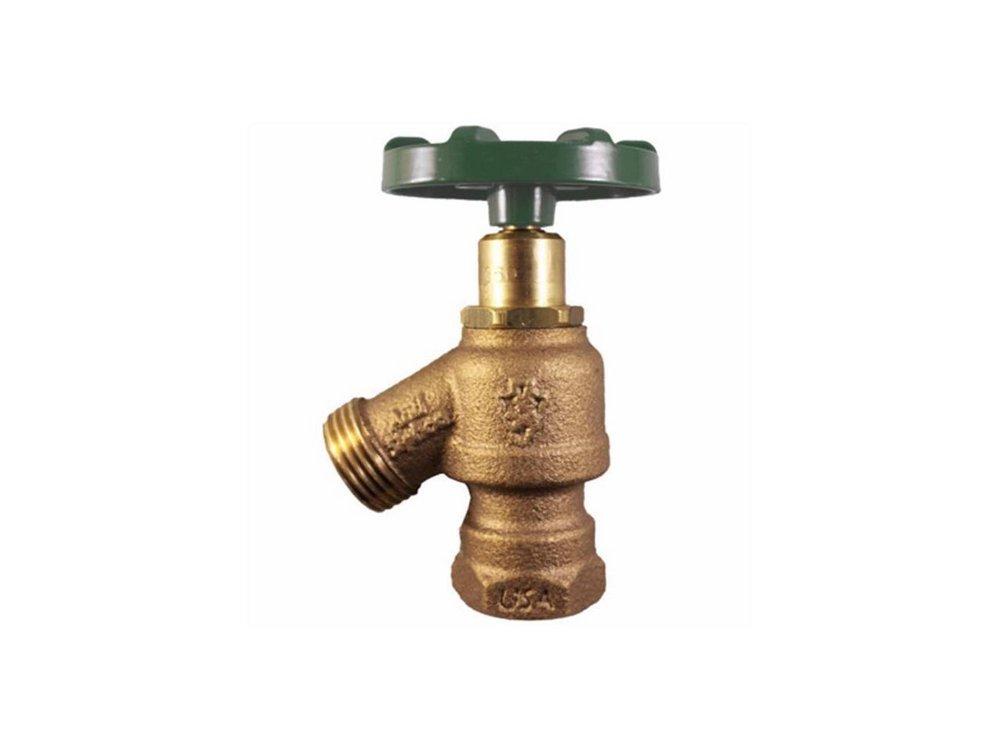

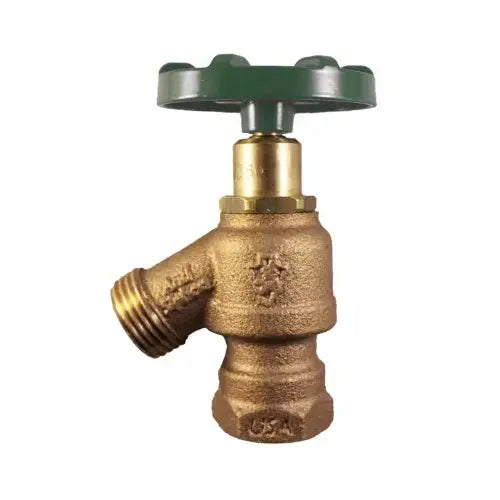

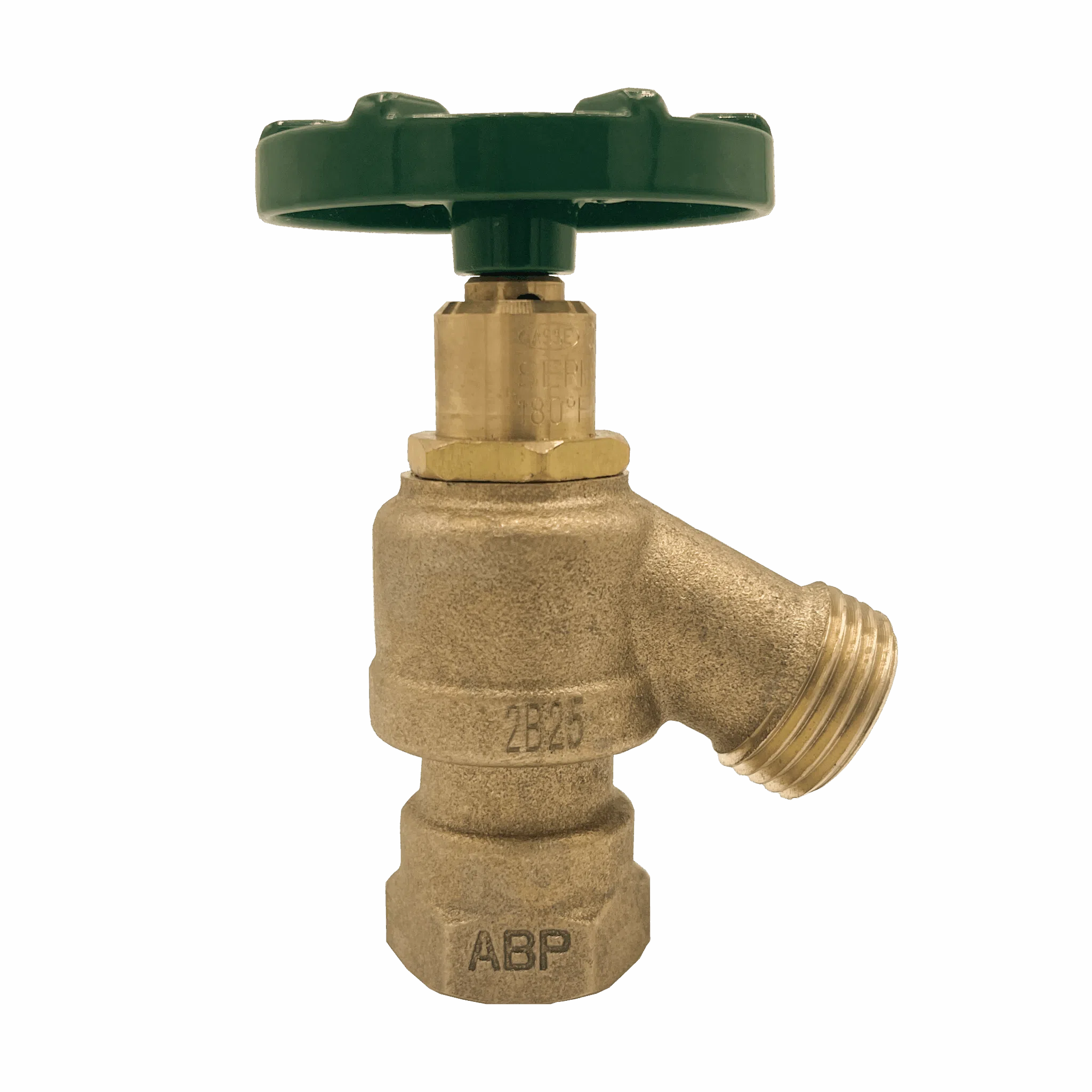

The ARROWHEAD BRASS & PLUMBING 965LF Arrow-Breaker® garden valve features ½” & ¾” nested female iron pipe (FIP) thread connection with built-in anti-siphon vacuum breaker technology. It includes an exclusive O-ring bonnet and stem design and protects your water supply from harmful contaminates. It is lead-free certified to NSF/ANSI 372.

• Made from a heavy-duty, lead-free bronze alloy
• Patented Arrow-Breaker® built-in anti-siphon back-flow preventer that protects your water supply from harmful contaminates
• ASSE 1011 approved, IAPMO certified

Product Highlights

The Arrowhead Brass Arrow-Breaker® 965LF garden valve has a built-in anti-siphon vacuum breaker and O-ring bonnet and stem design.

Product Information

Standard Information

• Brand: ARROWHEAD BRASS & PLUMBING
• Manufacturer Part Number: 965LF
• Country of Origin: China

Technical Specifications

• Inlet Connection: " bd 9d & be 9d female iron pipe (FIP) nested threads
• Outlet Connection: " be 9d male hose thread
• Max pressure: 125 PSI
• Max temperature: 180
• Material: Brass
• Brand: ARROWHEAD BRASS & PLUMBING
• Exterior Finish: Brass
• Inlet Connection Type: Female Pipe Thread
• Outlet Connection Size: 0.75 Inches
• Specification Met: NSF, ASME, UL
• Manufacturer: Standard Plumbing Supply
• Connector Type: Threaded
• Valve Type: Globe Valve
• Size: 0.75 inches
• Material Type: Brass
• End Connection 1: FIPS
• End Connection 2: Threaded
• End Connections: FIPS x Threaded
• Lead Law Compliance Level: Lead Free Not Certified, Approved for Non-Potable Water Applications
• Pressure - Maximum: 125 psi
• Valve Operator: Wheel Handle
• Valve Size: 1/2 in x 3/4 in
• Hazardous Material: No
• MPN: 965LF
