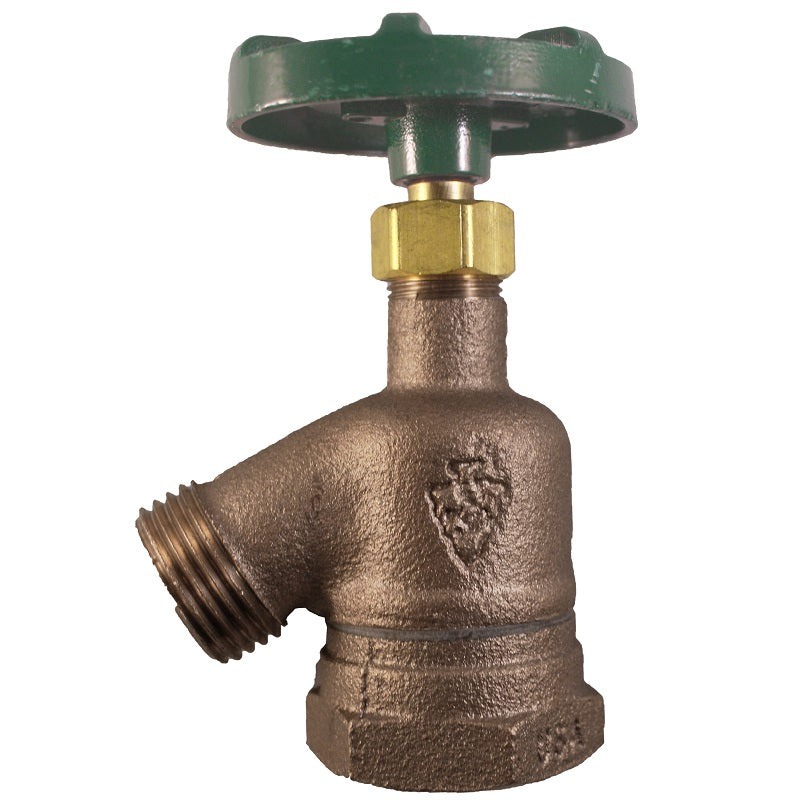

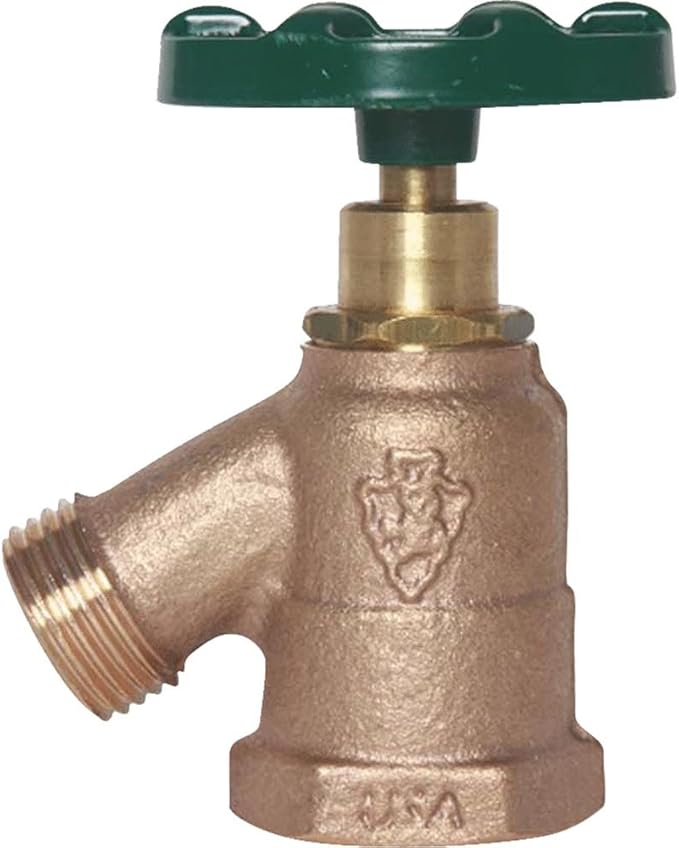

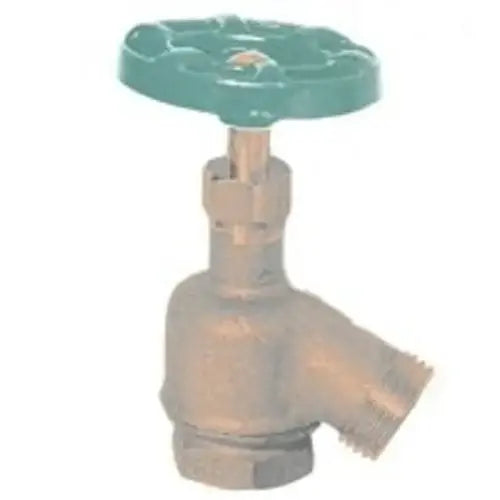

Arrowhead Brass & Plumbing 930LF Garden Valve 1 In. FIP X 3/4 In. HT

Product Description

The Arrowhead Brass & Plumbing 930LF garden valve has a 1 FIP connection. The 930LF includes Arrowhead Brass s exclusive O-ring bonnet and stem design. This garden valve is made from a heavy-duty, lead-free bronze alloy and is lead-free certified to NSF/ANSI 372.

• Made from a heavy-duty, lead-free bronze alloy
• Arrowhead Brass green wheel handle
• Lead-free certified to NSF/ANSI 372 (by IAPMO)

Product Highlights

The Arrowhead Brass & Plumbing 930LF is ideal for gardening and other outdoor applications requiring a reliable and lead-free valve.

Product Information

Standard Information

• Brand: ARROWHEAD BRASS & PLUMBING
• Manufacturer Part Number: 930LF
• Country of Origin: united states

Technical Specifications

• Inlet Connection: 1 female iron pipe (FIP)
• Outlet Connection: male hose thread
• Max pressure: 125 PSI
• Max temperature: 180 F
• Material: Brass
• Exterior Finish: Brass
• Inlet Connection Size: 0.75 Inches
• Inlet Connection Type: FIP
• Outlet Connection Type: FIP
• Number of Ports: 2
• Outlet Connection Size: 0.75 Inches
• Specification Met: NSF/ANSI 372, ASTM
• Thread Type: FIP
• Thread Size: 1 inch
• Valve Type: Garden Valve
• Size: 1 In. FIP X 3/4 In. HT
• End 1 Type: FIP
• Anti-Siphon: No
• Frost-Proof: No
• End 1 Size: 1"
• Handle Type: Round
• End 2 Type: Hose
• Lead Content: Lead-Free
• Maximum Pressure: 125 psi
• Packaging Type: Bulk
• Product Type: Garden Valve
• Velocity: B
• Hazardous Material: No
• Alternative UPC: 690043470757
• Port Size: 1 x 3/4"
• Pressure rating: 125 PSI
• Temperature Rating: 180 deg F
• Nomenclature: 930LF GARDEN VLV HOSE CONCT
• Body Material: Bronze
• Connection Type: FIP x Hose
