Arrowhead Brass & Plumbing 301LF Heavy-Duty Hose Bibb

Product Description

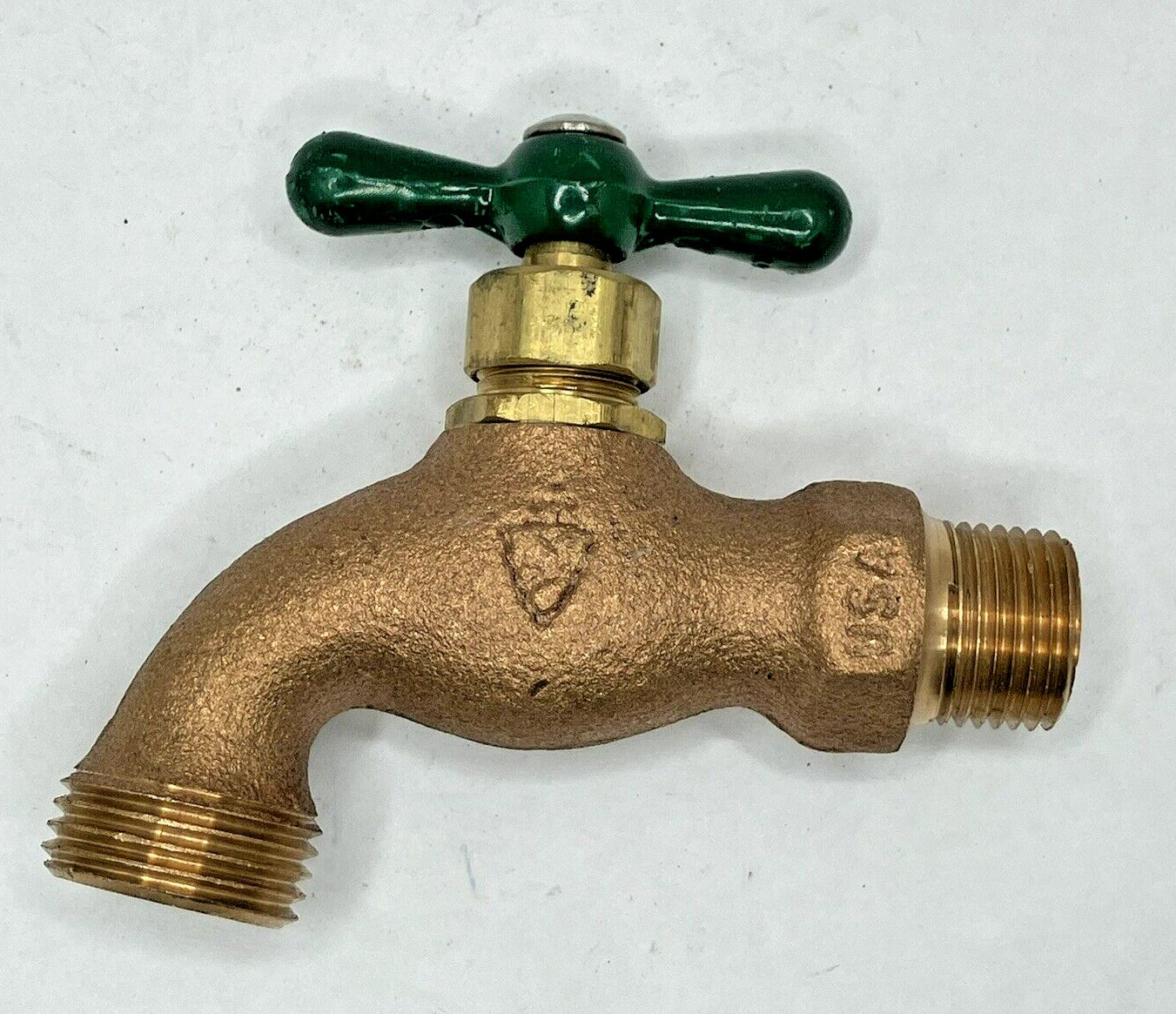

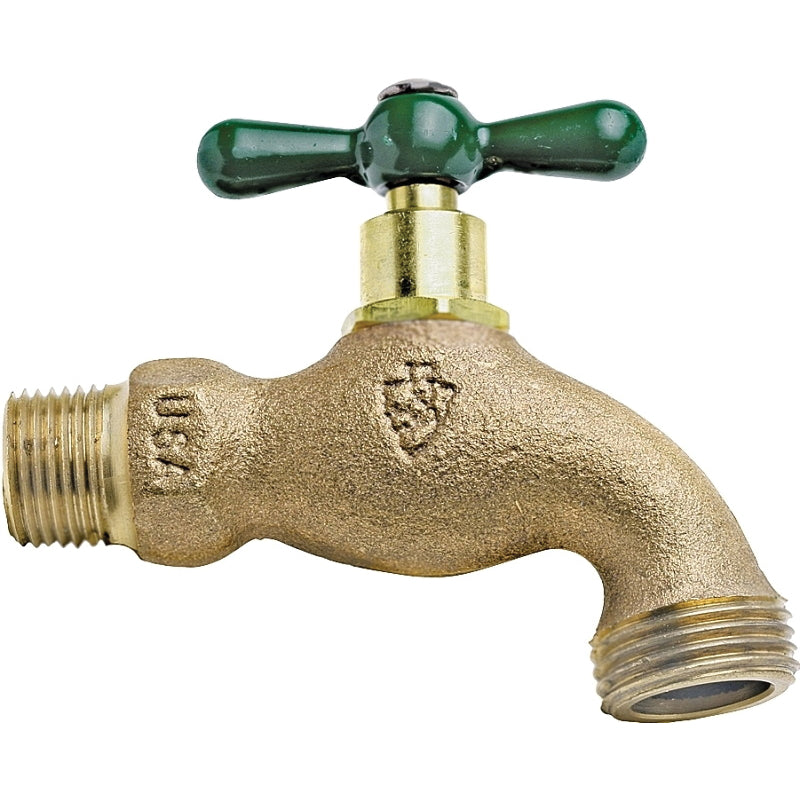

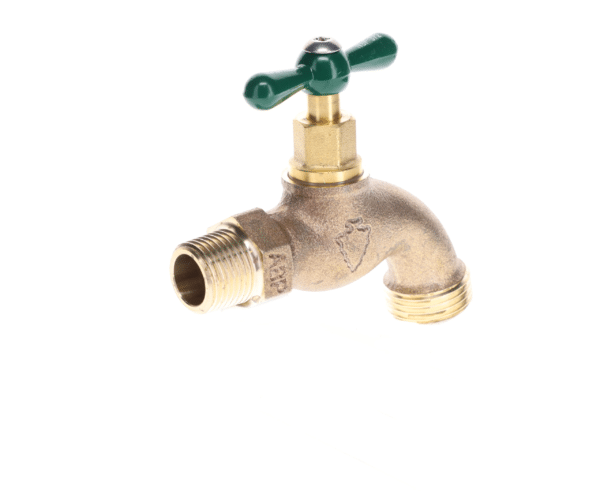

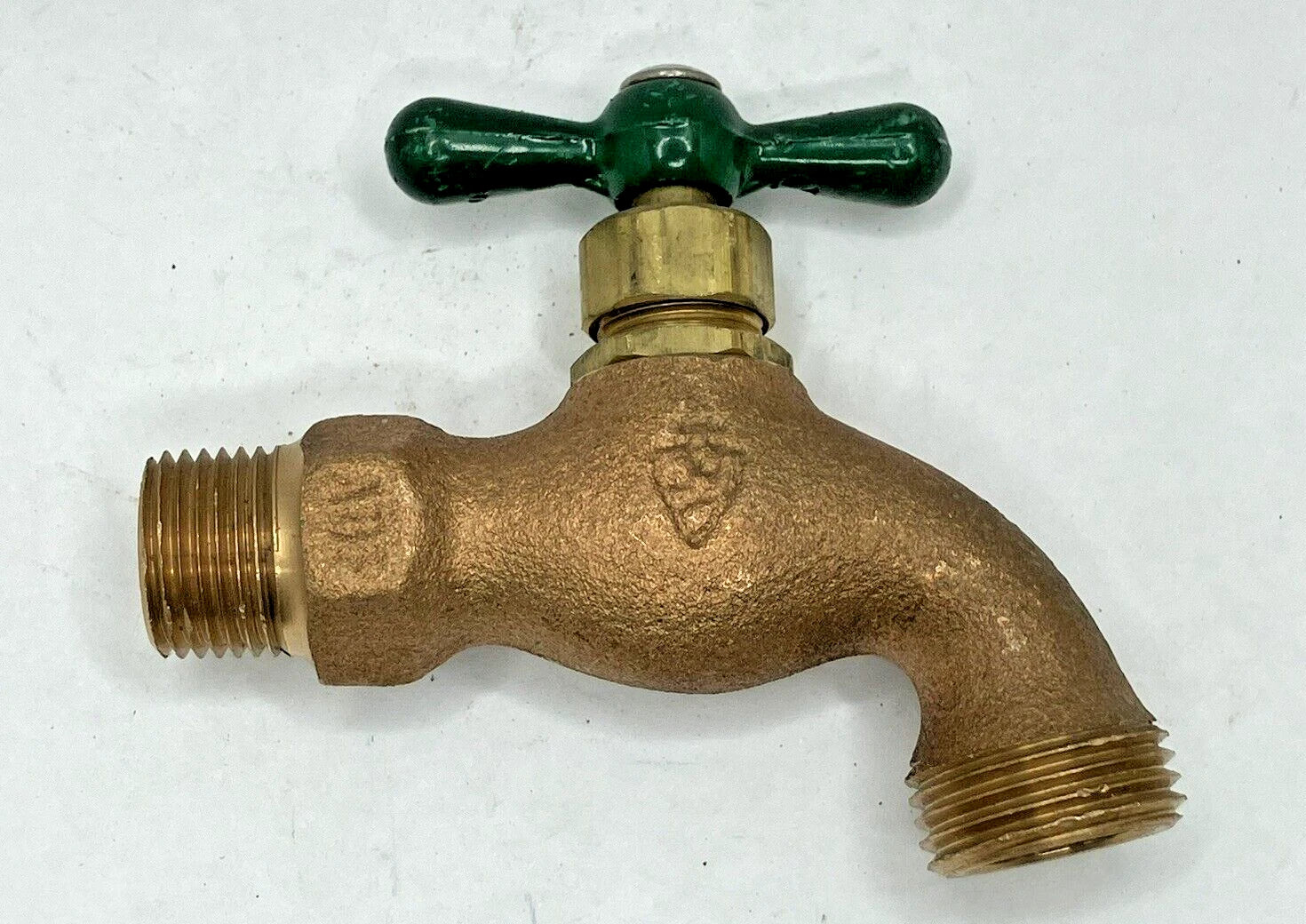

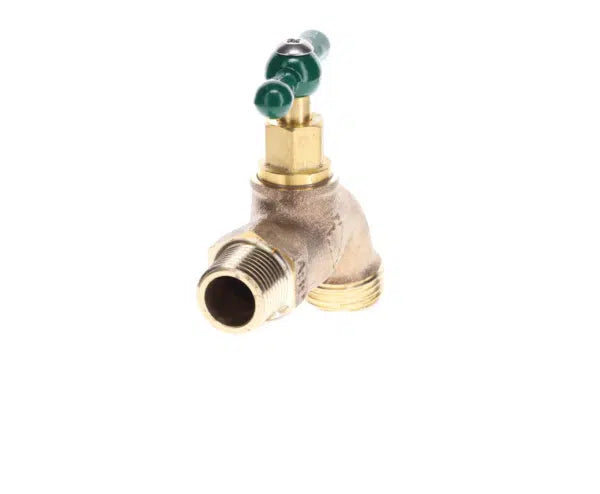

The Arrowhead Brass & Plumbing 301LF is a heavy-duty hose bibb made from lead-free brass. It features a half-inch male iron pipe thread inlet and a three-quarter inch male hose thread outlet. This product has an O-ring bonnet and stem design, ensuring reliable performance. It meets lead-free certification standards outlined in NSF/ANSI 372, allowing for safe use in potable water systems.

• Constructed from lead-free brass.
• O-ring bonnet and stem design for durability.
• Rated for a maximum pressure of 125 PSI.

Product Highlights

This hose bibb is designed for long-lasting use in outdoor plumbing applications.

Product Information

Standard Information

• Brand: Arrowhead Brass & Plumbing
• MPN: 301LF

Technical Specifications

• Inlet Connection: Half inch male iron pipe (MIP) thread
• Outlet Connection: Three-quarter inch male hose thread
• Max Pressure: 125 PSI
• Max Temperature: 180 degrees F
• Body Material: Red Brass
• Actuator Type: T-Handle
• Flow Rate: 8 to 9 gpm
• Dimensions: Three and a half inches high x one and a quarter inches wide x four inches deep
