Product Description

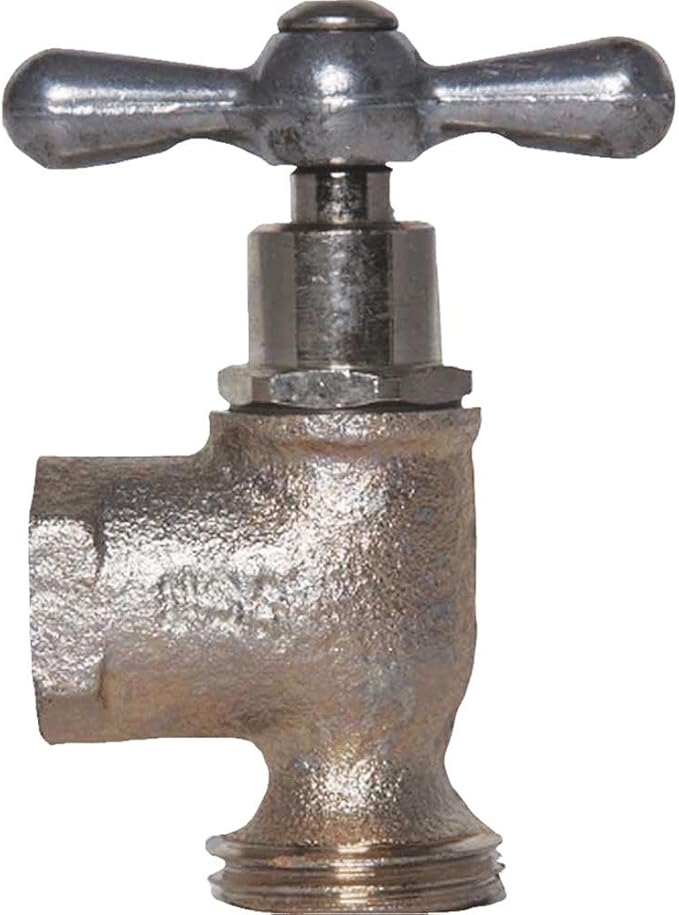

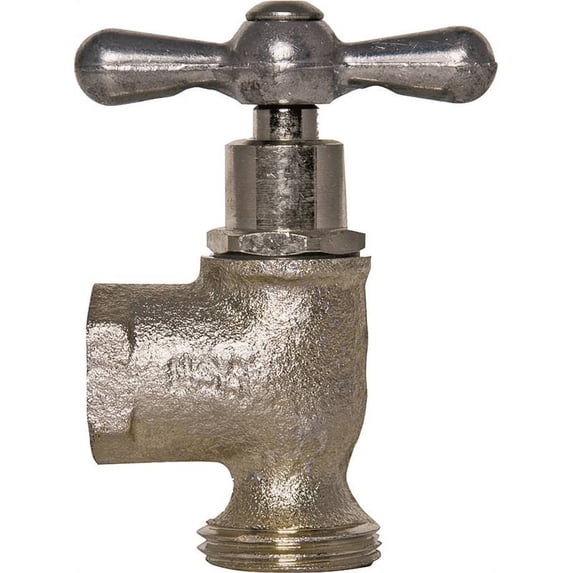

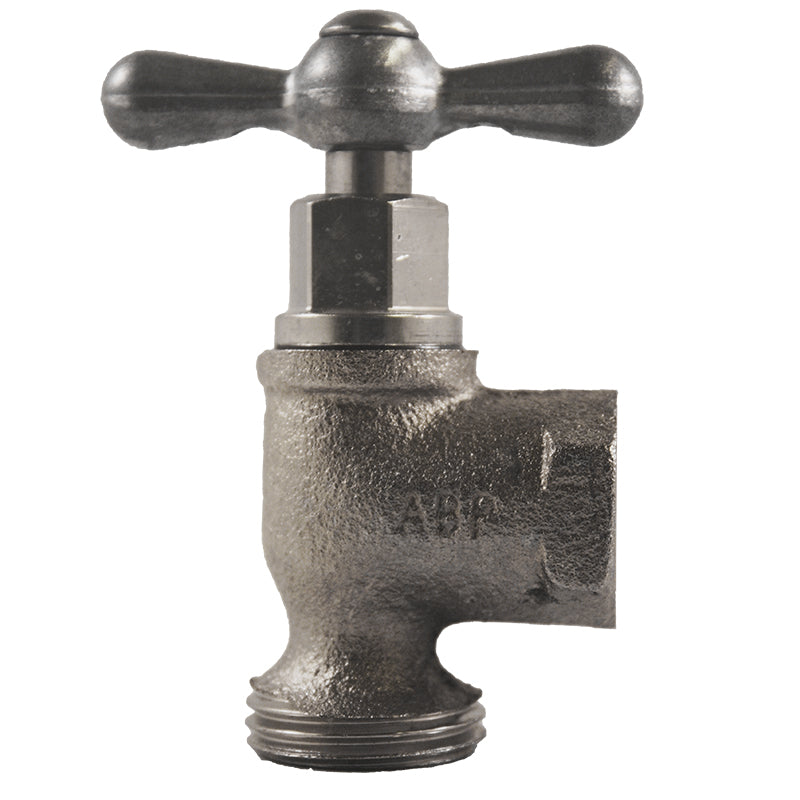

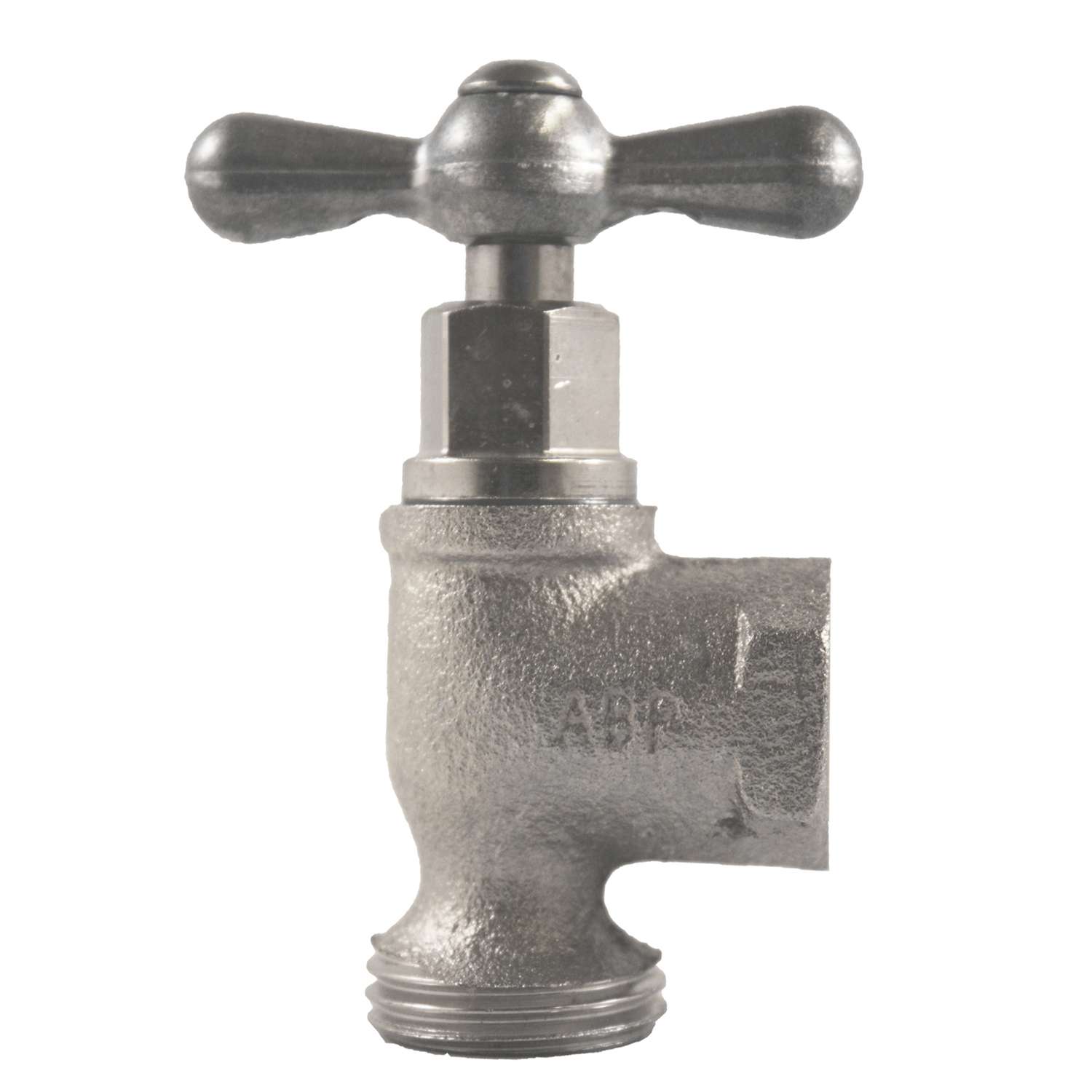

The ARROWHEAD BRASS & PLUMBING 249LF is a 1/2" Female Pipe Thread Inlet, Red Brass, Washing Machine Valve. It features Arrowhead Brass’s exclusive O-ring bonnet and stem design and a front handle. This valve is made from a heavy-duty, lead-free bronze alloy with a nickel-plated finish.
- Made from a heavy-duty, lead-free bronze alloy
- Front-facing handle
- Nickel-plated finish
Product Highlights
This washing machine valve has a ½” FIP connection and a ¾” male hose thread. It is lead-free certified to NSF/ANSI 372.
Product Information
Standard Information
-
Brand: ARROWHEAD BRASS & PLUMBING
-
Manufacturer Part Number: 249LF
-
Country of Origin: US
Technical Specifications
-
Color: Red,Brass
-
Material: Brass
-
Measurement System: Inch
-
Batteries Included?: No
-
Batteries Required?: No
-
Included Components: Pipe-fittings
-
Inlet Connection: 1/2” FIP
-
Outlet Connection: 3/4” male hose thread
-
Max pressure: 125 PSI
-
Max temperature: 180
-
Exterior Finish: Brass
-
Outlet Connection Type: FIP
-
Number of Ports: 2
-
Thread Type: Female
-
Connector Type: Threaded
-
Thread Size: 1/2 inch
-
Valve Type: Globe Valve
-
Outlet Connection Size: 0.75 Inches
-
Specification Met: CSA, NSF, ULC
