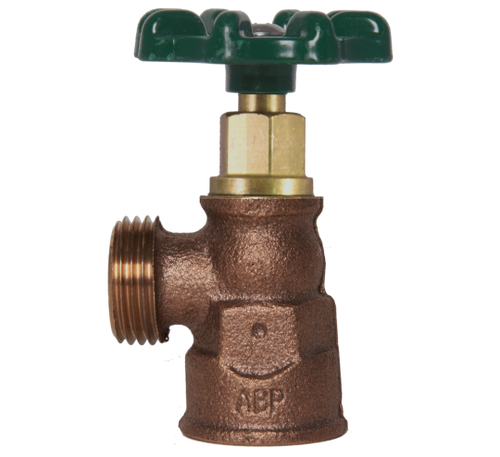

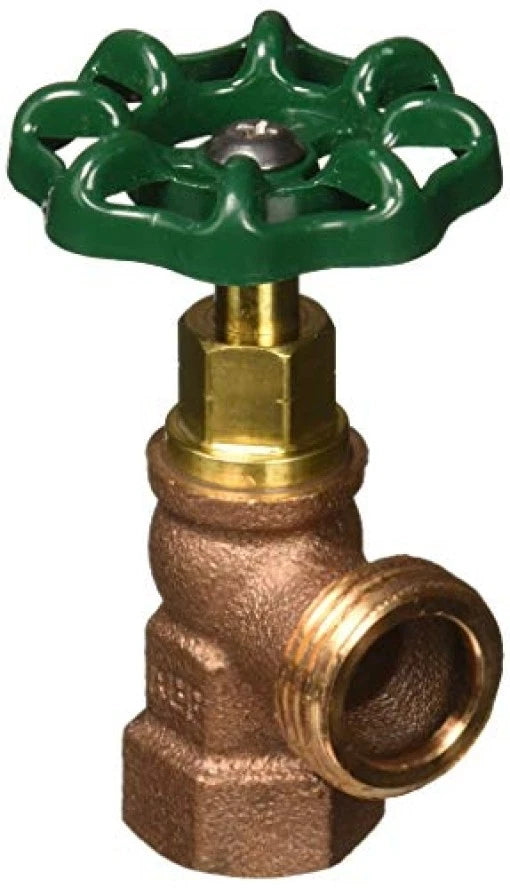

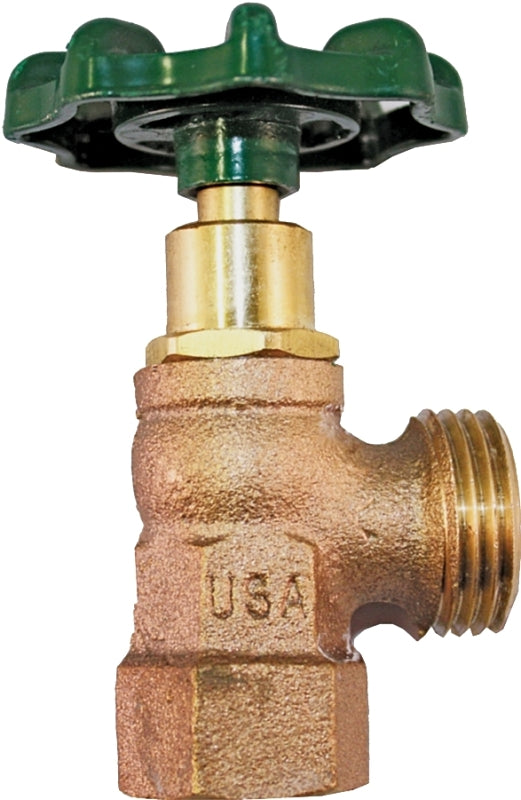

ARROWHEAD BRASS & PLUMBING 222LF Boiler Drain 1/2 FIP x 3/4 MHT

Product Description

The ARROWHEAD BRASS & PLUMBING 222LF is a lead-free bronze boiler drain designed for heavy-duty applications. It has a half-inch female iron pipe (FIP) inlet and a three-quarter-inch male hose thread (MHT) outlet connection. The valve includes an O-ring bonnet design for reliability. This product is certified lead-free to NSF/ANSI 372, making it safe for drinking water.

• Constructed from lead-free bronze alloy
• Pressure rated up to 125 PSI and temperature rated to 180 degrees Fahrenheit
• Includes a green wheel handle for easy operation

Product Highlights

Ideal for residential and commercial use, the boiler drain provides efficient drainage and durability in high-pressure environments.

Product Information

Standard Information

• Brand: ARROWHEAD BRASS & PLUMBING
• MPN: 222LF

Technical Specifications

• Inlet Style: 1/2 FIP
• Outlet Connection: 3/4 MHT
• Body Material: Bronze
• Connection Type: FIP x Hose
• Pressure Rating: 125 psi
• Temperature Rating: 180 degrees Fahrenheit
• Flow Rate: 8 to 9 gallons per minute
• Handle: Green wheel handle
• Dimensions: 2 inches wide x 3-3/8 inches high x 2 inches deep
