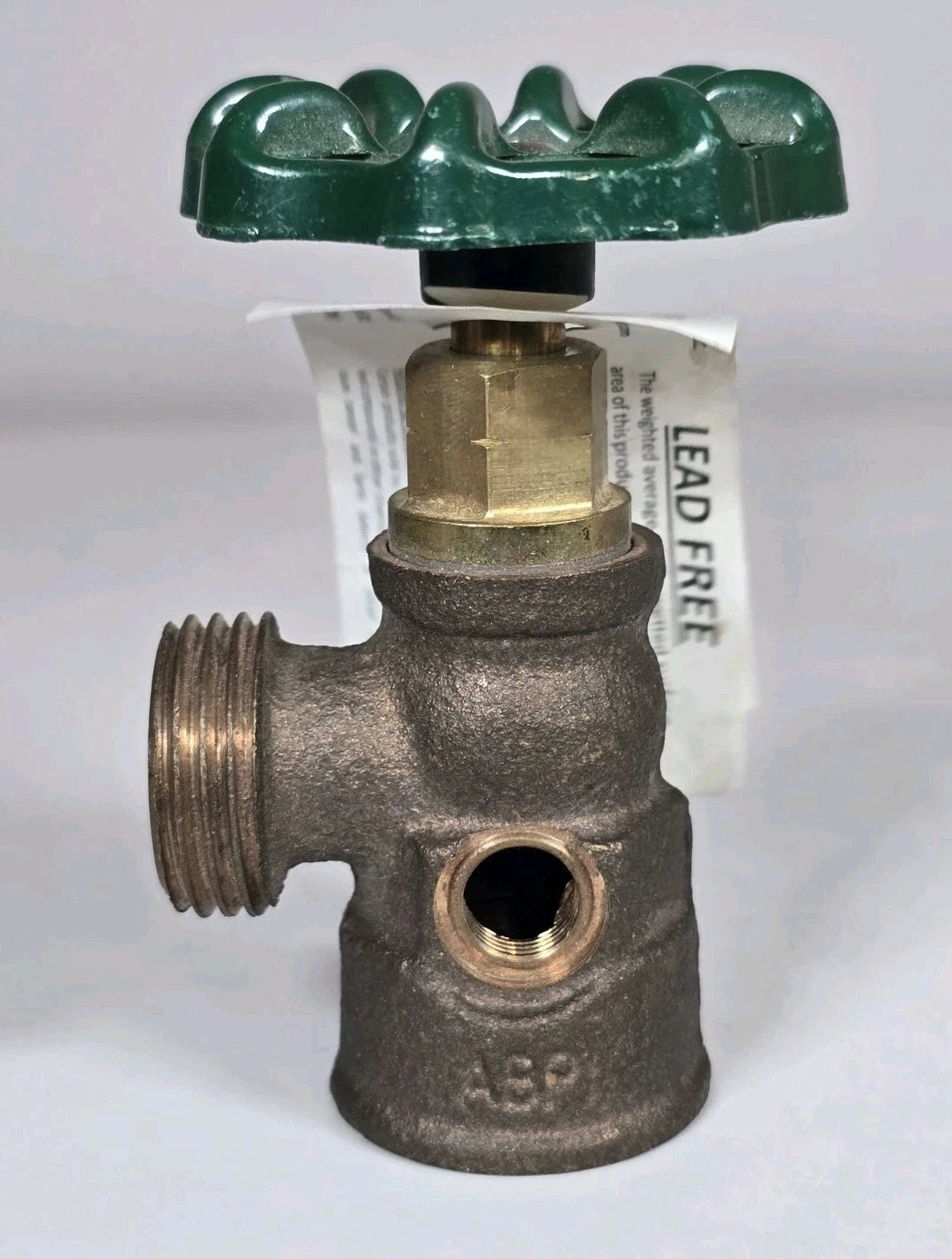

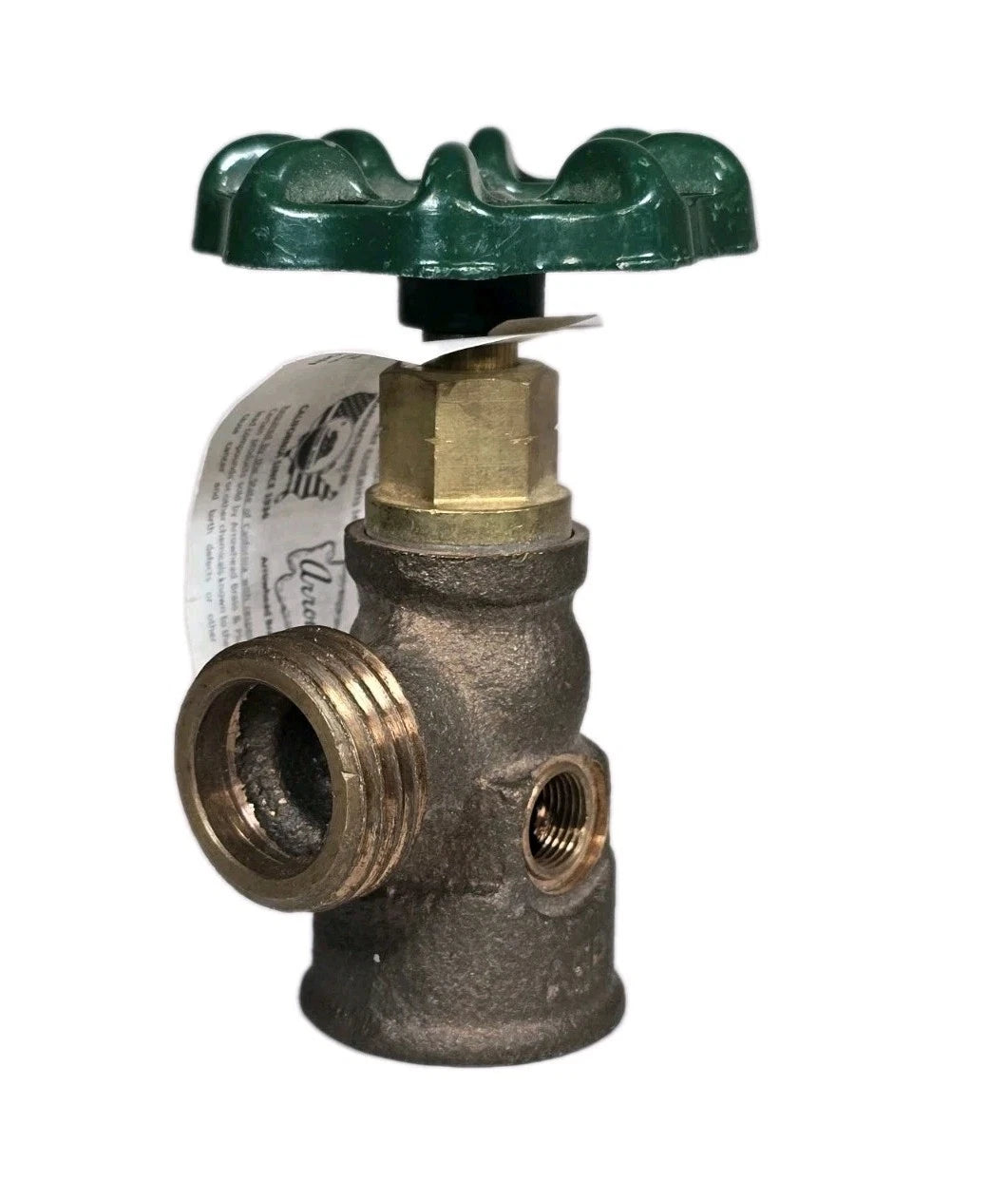

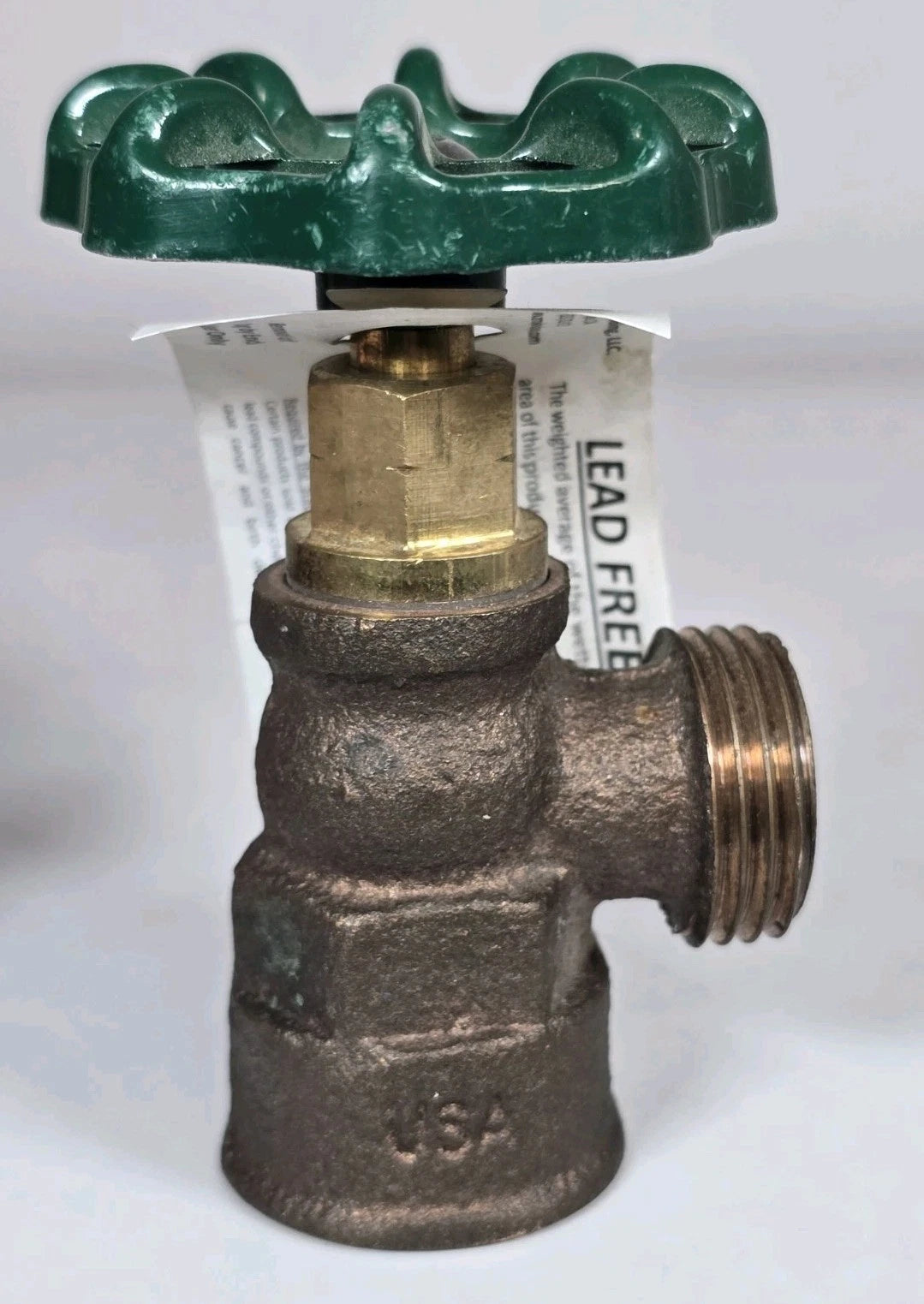

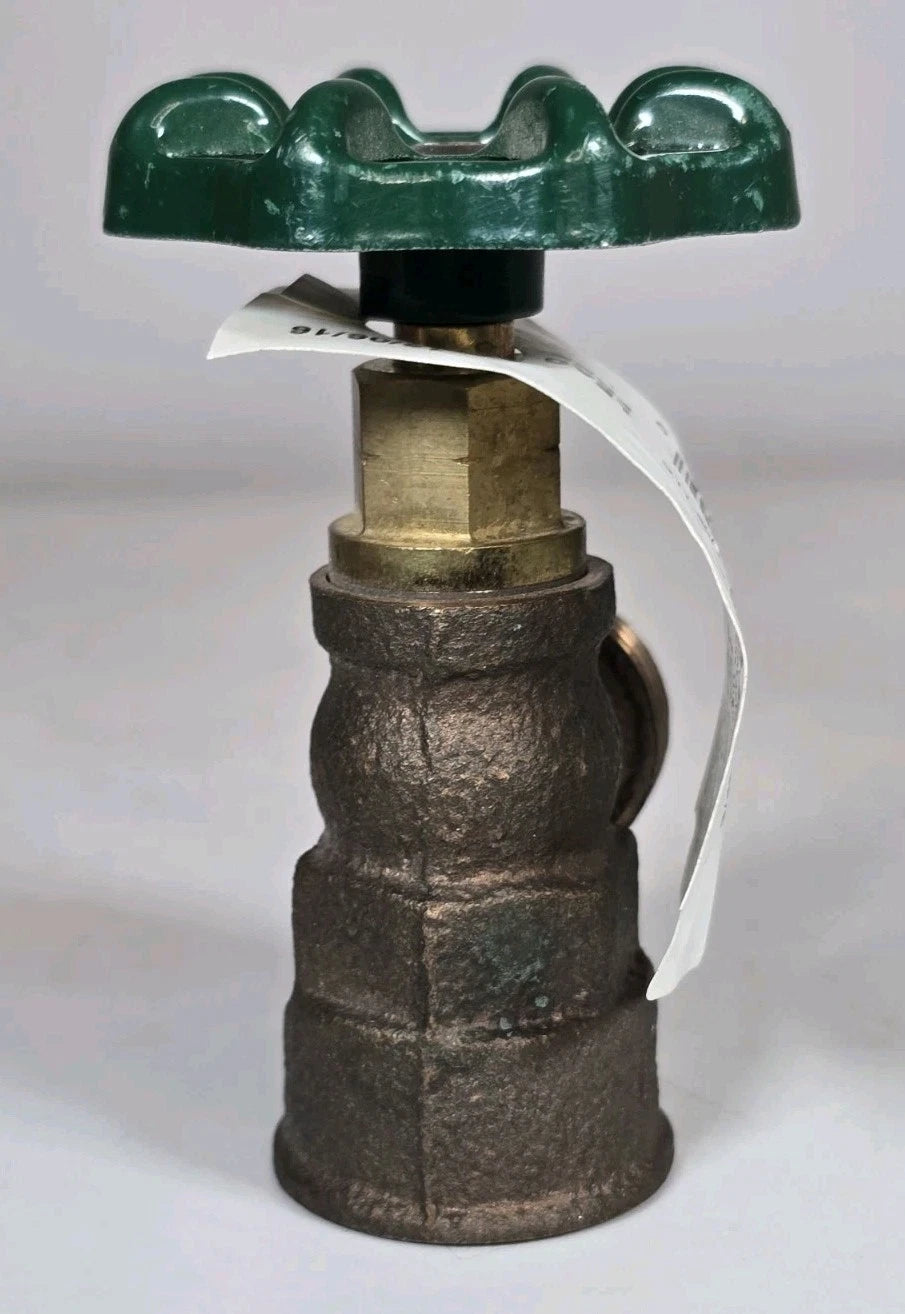

Arrowhead Brass & Plumbing 220LF Boiler Drain

Product Description

The Arrowhead Brass & Plumbing 220LF is designed for efficient boiler drainage. It includes a three-fourth inch female iron pipe connection and features a three-fourth inch male hose thread outlet. This boiler drain is made from lead-free bronze alloy and has an O-ring bonnet with a stem design. It is certified lead-free to NSF/ANSI 372 by IAPMO, making it suitable for various boiler applications.

• Three-fourth inch female iron pipe inlet
• Handles maximum pressure of 125 PSI
• Supports maximum temperature of 180°F

Product Highlights

This drain is built for reliability in high-pressure environments, ensuring consistent performance in boiler systems.

Product Information

Standard Information

• Brand: Arrowhead Brass & Plumbing
• MPN: 220LF

Technical Specifications

• Inlet Connection: 3/4 inch FIP
• Outlet Connection: 3/4 inch male hose thread
• Maximum Pressure: 125 PSI
• Maximum Temperature: 180°F
• Lead-Free Certification: NSF/ANSI 372 (by IAPMO)
• Material: Brass, Red Brass, Aluminum
• Item Dimensions: 3.5 inches x 2 inches x 1.6 inches
• Connector Type: 3/4 inch Female Pipe Thread
• Thread Size: .75
• Thread Type: NPT
• Item Weight: 8 ounces
• Number of Pieces: 1
• Model: 220
• Type: Heavy-Duty
• Series: 220
• Nominal Size: 3/4 in
• End Style: FNPT x Hose
• Pressure Rating: 125 PSI
• Temperature Rating: 180°F
• Flow Rate: 8 to 9 GPM
• Actuator Type: Handwheel
• Dimensions: 2 inches W x 3.375 inches H x 2 inches D
• Suitable For: Boiler
• Item Height: 2 inches
• Item Diameter: 0.5 to 1.0 inches
• Length: 2.25 inches
