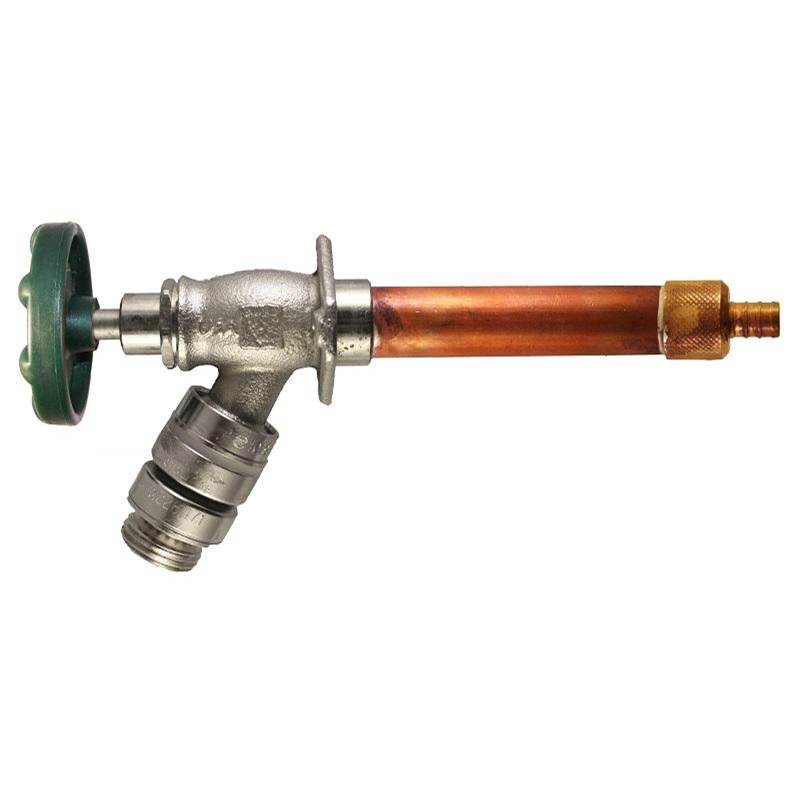

Arrowhead Brass 489-04LF Self-Draining Anti-Siphon Frost-Proof Hydrant 4 inch

Product Description

The Arrowhead Brass 489-04LF series self-draining anti-siphon frost-proof hydrants have a ½” PEX inlet. The 489-04LF series includes Arrowhead Brass’s exclusive O-ring bonnet and stem design and a 3-year limited warranty. Made from a heavy-duty, lead-free brass.

• Factory-installed fine thread self-draining vacuum breaker allows the hydrant to drain when shut off to prevent freezing
• Available in 2”, 4”, 6”, 8”, 10”, 12”, and 14” lengths
• Lead-free certified to NSF/ANSI 372 (by IAPMO)

Product Highlights

This hydrant is self-draining and frost-proof, with a ½” PEX inlet and a ¾” male hose thread outlet. It has a maximum pressure of 125 PSI and a maximum temperature of 180°F.

Product Information

Standard Information

• Brand: ARROWHEAD BRASS
• Manufacturer Part Number: 489-04LF

Technical Specifications

• Inlet Connection: 1/2" PEX
• Outlet Connection: 3/4" Hose Thread.
• Max pressure: 125 PSI
• Max temperature: 180° F
• Made from: Heavy duty lead free bronze alloy; Lead Free certified to NSF/ANSI 372 by IAPMO.
• Factory installed: Fine thread Self-Draining Vacuum Breaker: Allows hydrant to drain when shut off to prevent freezing.
• Includes: Arrowhead's exclusive O-ring bonnet & stem design (no packing nut to tighten).
• Warranty: 3-Year limited warranty.
