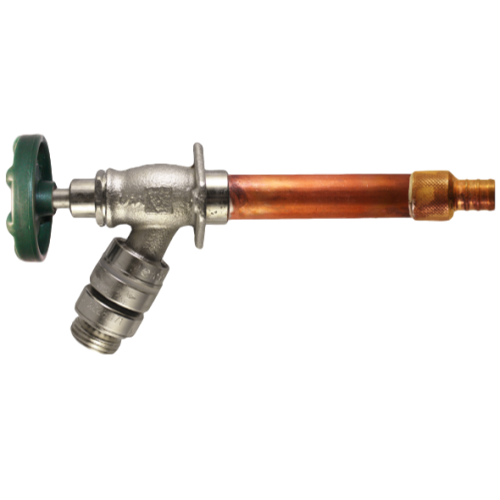

Arrowhead 482-12LF Self-Draining Frost Proof Hydrant 12 inches 1/2 inches Wirsbo PEX

Product Description

The ARROWHEAD BRASS 482-12LF is a 12" self-draining, frost-proof hydrant with a 1/2" Wirsbo PEX connection. Constructed from heavy-duty, lead-free bronze alloy, it is certified to NSF/ANSI 372 by IAPMO. Designed with an O-ring bonnet and stem, it eliminates the need to tighten a packing nut.

• Self-Draining
• Frost Proof
• Equipped with a fine thread self-draining vacuum breaker to prevent freezing

Product Highlights

This hydrant features a lead-free bronze alloy construction, a self-draining design.

Product Information

Standard Information

• Brand: ARROWHEAD BRASS
• Manufacturer Part Number: 482-12LF

Technical Specifications

• Made from: Heavy duty lead free bronze alloy; Lead Free certified to NSF/ANSI 372 by IAPMO.
• Factory installed: Fine thread Self-Draining Vacuum Breaker: Allows hydrant to drain when shut off to prevent freezing.
• Inlet Connection: 1/2" Wirsbo PEX (cold expansion PEX).
• Outlet Connection: 3/4" Garden Hose Thread.
• Includes: Arrowhead's exclusive O-ring bonnet & stem design (no packing nut to tighten).
• Max pressure: 125 PSI.
