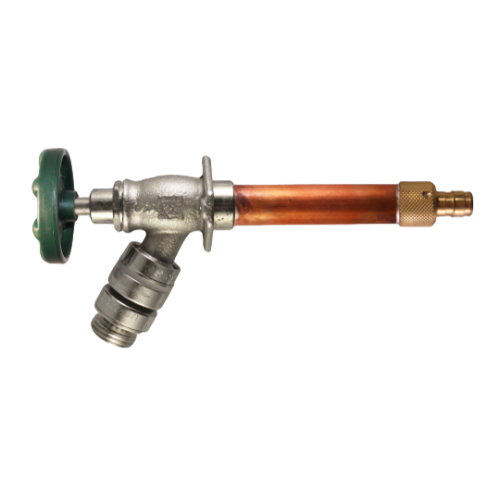

Arrowhead 482-02LF Self-Draining Frost Proof Hydrant 2 inch 1/2 inch Wirsbo PEX

Product Description

The ARROWHEAD BRASS 482-02LF is a 2" self-draining, frost-proof hydrant with a 1/2" Wirsbo PEX inlet connection. It features a fine thread self-draining vacuum breaker that allows the hydrant to drain when shut off to prevent freezing. The hydrant is made from heavy-duty lead-free bronze alloy and is Lead Free certified to NSF/ANSI 372 by IAPMO.

• Self-Draining
• Frost Proof
• Features Arrowhead's exclusive O-ring bonnet & stem design (no packing nut to tighten)

Product Highlights

This hydrant is ideal for use in areas where freezing temperatures are a concern. It has a maximum pressure of 125 PSI and a maximum temperature of 180° F.

Product Information

Standard Information

• Brand: ARROWHEAD BRASS
• Manufacturer Part Number: 482-02LF

Technical Specifications

• Made from: heavy duty lead free bronze alloy; Lead Free certified to NSF/ANSI 372 by IAPMO.
• Factory installed: fine thread Self-Draining Vacuum Breaker: Allows hydrant to drain when shut off to prevent freezing.
• Inlet Connection: 1/2" Wirsbo PEX (cold expansion PEX).
• Outlet Connection: 3/4" Garden Hose Thread.
• Includes: Arrowhead's exclusive O-ring bonnet & stem design (no packing nut to tighten).
• Max pressure: 125 PSI.
• Max temperature: 180 F.
