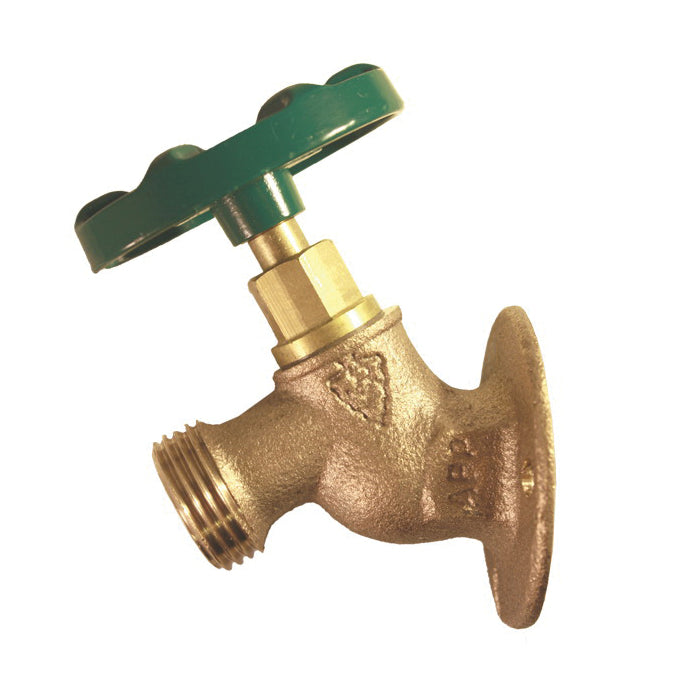

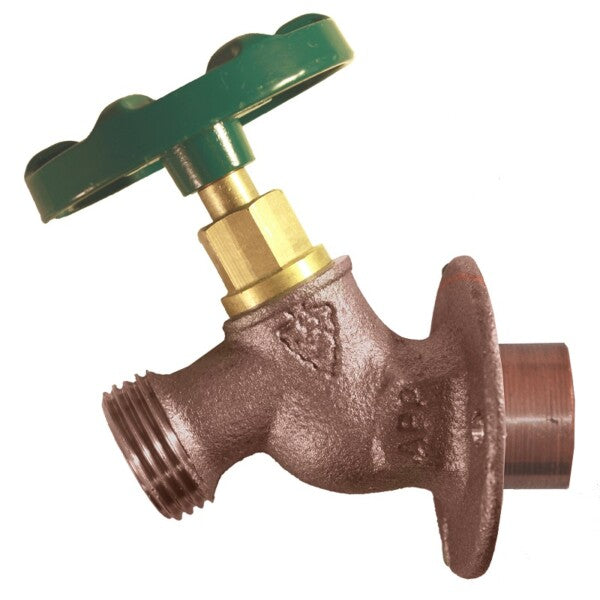

ARROWHEAD 355SWLF Solid Flange Sillcock

Product Description

The ARROWHEAD 355SWLF is a solid flange sillcock suitable for heavy-duty applications. It includes a one-quarter inch copper sweat inlet connection and a one-quarter inch male hose thread outlet. The design features an O-ring bonnet and stem, which removes the need for a packing nut. The body is made from red brass and has a T-handle actuator for easy operation.

• Inlet connection: one-quarter inch copper sweat
• Outlet connection: one-quarter inch male hose thread
• Pressure rated up to 125 psi

Product Highlights

This sillcock is ideal for installations where a robust connection is required. Suitable for various plumbing applications.

Product Information

Standard Information

• Body Material: Red Brass
• Actuator Type: T-Handle

Technical Specifications

• Inlet Connection: one-quarter inch copper sweat
• Outlet Connection: one-quarter inch male hose thread
• Pressure Rating: 125 psi
• Temperature Rating: 180 degrees Fahrenheit
• Dimensions: three and one-half inches height x one and one-quarter inches width x three and one-half inches depth
• End Style: FNPT x Hose
• Flow Rate: 8 to 9 gpm
• Nominal Size: one-half x three-quarter inch
• Series: 355
• Type: Heavy Duty
