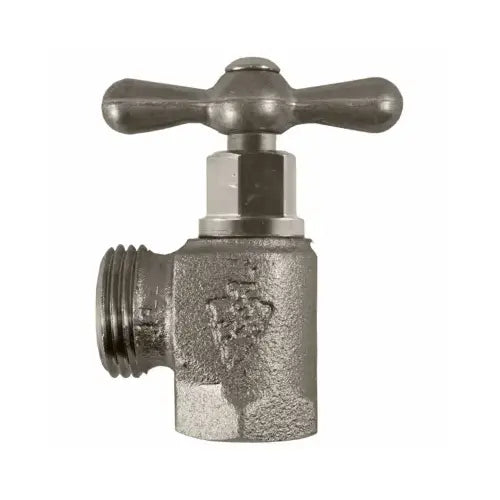

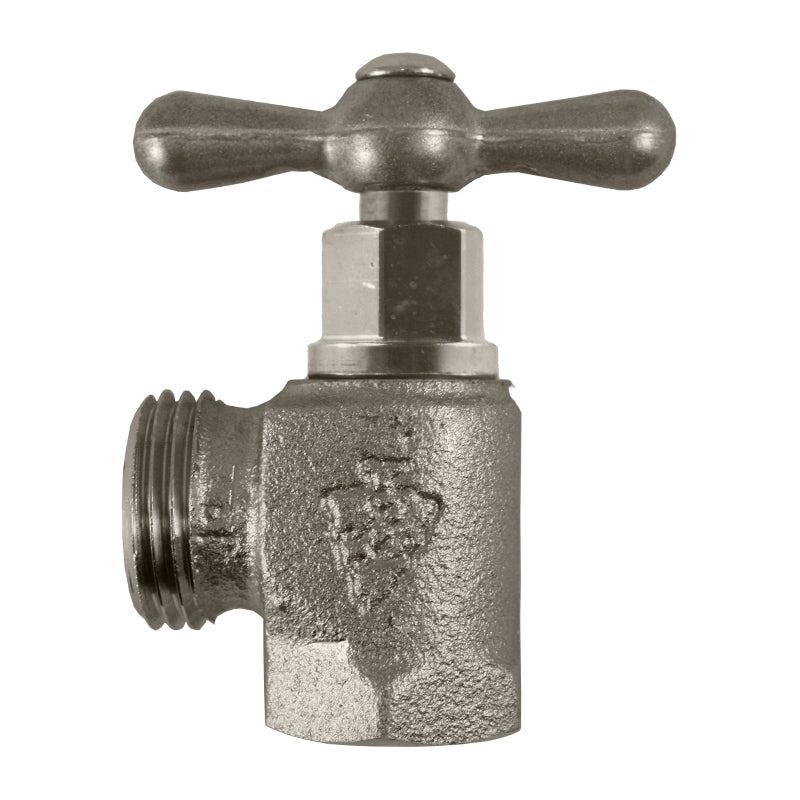

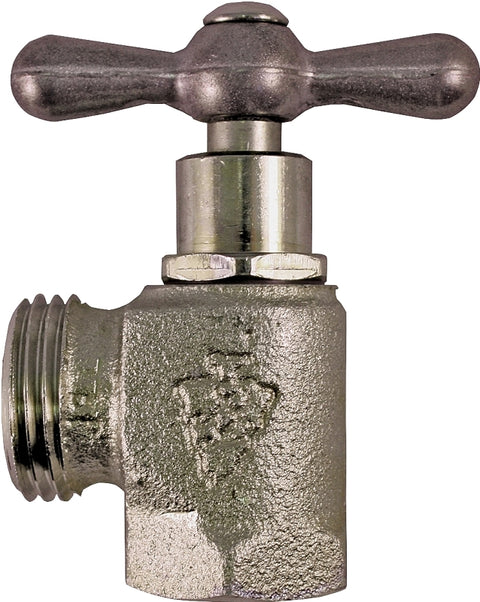

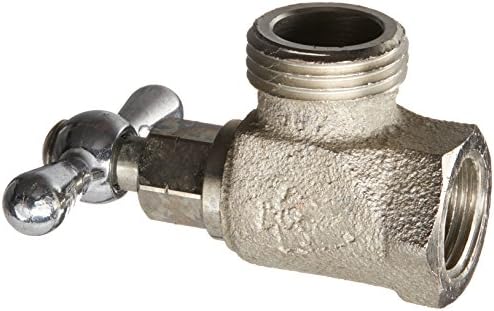

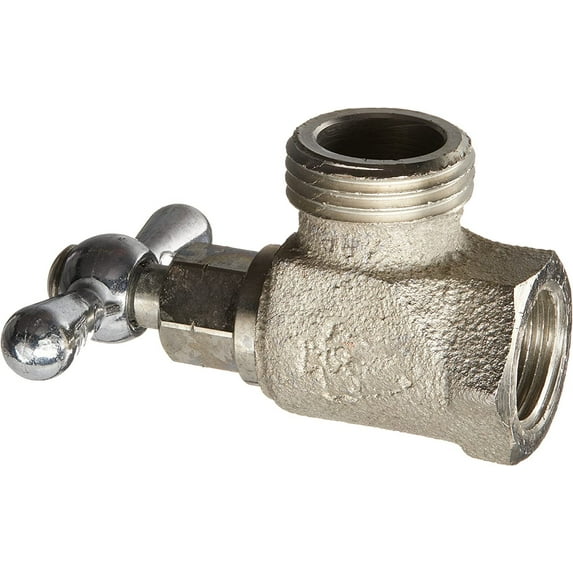

Arrowhead 247LF Washing Machine Valve 1/2 inches FIP x 3/4 inches HT

Product Description

The ARROWHEAD 247LF washing machine valve is nickel-plated and has a ½” FIP connection. The 247LF includes Arrowhead Brass’s exclusive O-ring bonnet and stem design. Designed for reliable performance and easy installation in your laundry room.

• Made from a heavy-duty, lead-free bronze alloy
• Exclusive O-ring bonnet and stem design (no packaging nut to tighten)
• Easy installation and easy handling

Product Highlights

The ARROWHEAD 247LF washing machine valve features a durable construction and plated finish, making it ideal for connecting washing machine hoses to your plumbing system.

Product Information

Standard Information

• Brand: ARROWHEAD
• Manufacturer Part Number: 247LF
• Country of Origin: United States

Technical Specifications

• Inlet Connection: 1/2” female iron pipe
• Outlet Connection: 3/4” male hose thread
• Finish: Nickel-plated
• Lead-free certification: NSF/ANSI 372 (by IAPMO)
• Max pressure: 125 PSI
• Max temperature: 180 °F
• Size: 1/2 In. FIP x 3/4 In. HT
• Material: Brass
• Manufacturer Part Number: 247LF
• Inlet Style: 1/2" FIP
• Model: 247
• Actuator Type: T-Handle
• Body Material: Bronze Alloy
• Connection Size: 1/2 x 3/4 in
• Connection Type: FIP x Male Hose Threaded
• Pressure Rating: 125 psi
• Temperature Rating: 180 deg F
• Brand: Arrowhead Brass
• Handle Type: T-Handle
• Maximum Temperature: 180 °F
• End 2 Type: MHT
• Lead Content: Lead-Free
• Maximum Pressure: 125 psi
• Packaging Type: Carded
• End 2 Size: 3/4"
• Product Type: Washing Machine Valve
• End 1 Type: FIP
• End 1 Size: 1/2"
• Hazardous Material: No
• Temperature: Either Hot or Cold
• Category: Business & Industrial
• Country of Origin: China
