ARROW HART CR15B Duplex Straight Blade Receptacle 125 VAC 15 A

Product Description

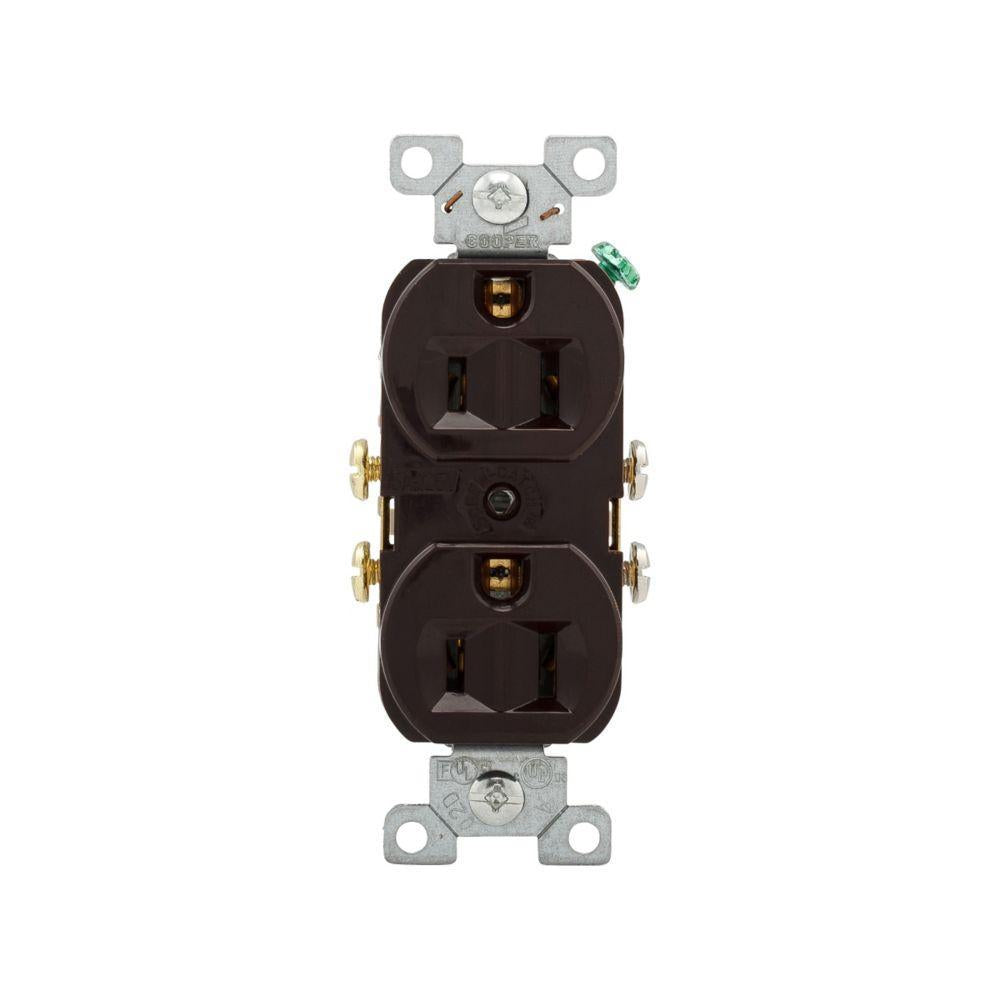

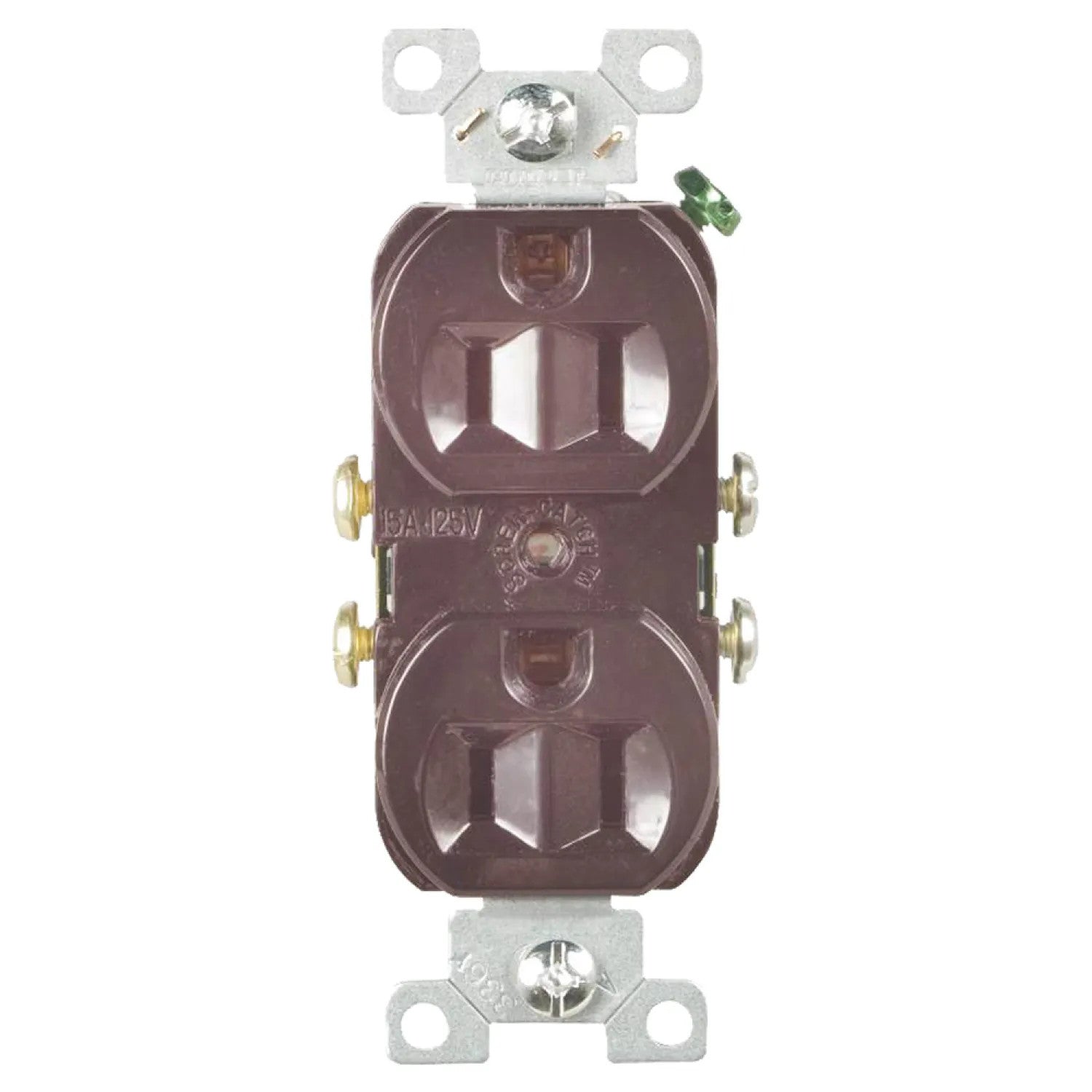

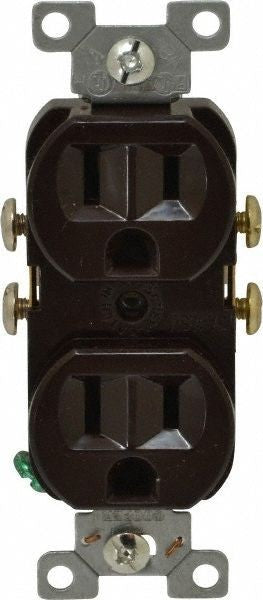

The ARROW HART CR15B is a commercial specification grade straight blade duplex receptacle, rated for 125 VAC and 15 A. This receptacle is known for reliable performance and safety. It is UL 498 and Federal Specification WC-596 listed, ensuring durability in various applications. Designed for easy installation, this receptacle helps complete jobs on time.

• Features a galvanized steel wrap-around yoke for secure assembly.
• Includes an automatic grounding system, eliminating the need for a bonding jumper.
• Meets NEC Article 406.12 for tamper-resistant receptacles in dwelling units.

Product Highlights

This receptacle is ideal for commercial applications and enhances safety standards.

Product Information

Standard Information

• Grade: Commercial
• Material: PVC

Technical Specifications

• NEMA Rating: NEMA 5-15R
• Number of Poles: 2
• Number of Wires: 3
• Amperage Rating: 15 A
• Voltage Rating: 125 VAC
• Temperature Rating: -4 to 158 degrees F
• Terminal Type: Screw/Side Wired
• Standard & Approvals: cULus Listed, CSA Certified, NOM Certified, UL Listed, RoHS Compliant
