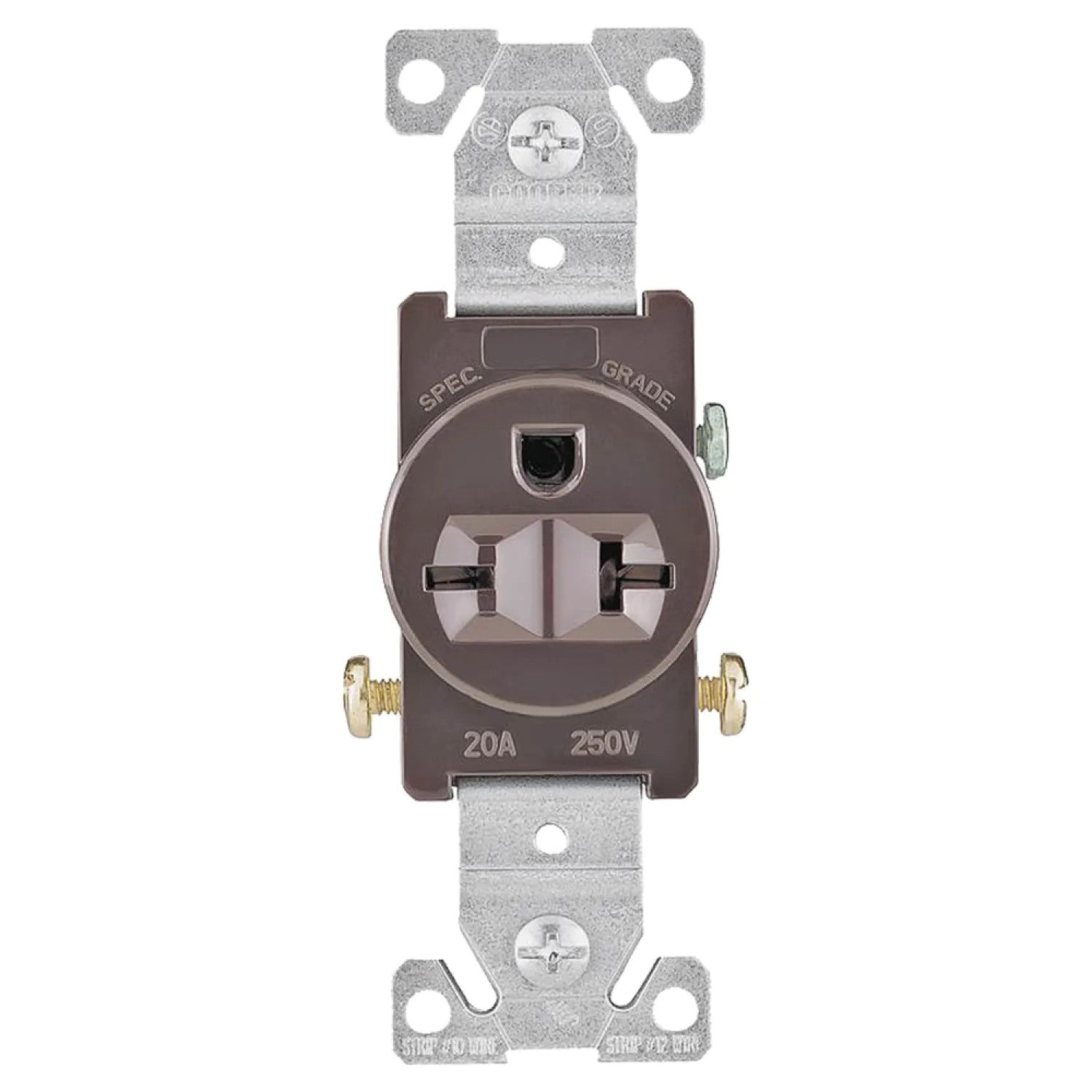

ARROW HART 1876B-BOX Straight Blade Single Receptacle 250 VAC 20 A

Product Description

The ARROW HART 1876B-BOX is a straight blade single receptacle designed for commercial use. It operates at 250 VAC with a current rating of 20 A. This receptacle meets UL 498 and Federal Specification WC-596 standards, ensuring safety and reliability.

• NEMA 6-20R rating for compatibility with specific plugs
• Automatic grounding system for enhanced safety
• Tamper-resistant design meets 2014 NEC Article 406.12 requirements

Product Highlights

This receptacle is ideal for various commercial applications where durability and compliance are necessary.

Product Information

Standard Information

• Grade: Commercial
• Material: Nylon

Technical Specifications

• Number Of Poles: 2
• Number of Wires: 3
• Voltage Rating: 250 VAC
• Amperage Rating: 20 A
• Dimensions: 4.19 inches H x 1.3 inches W x 0.83 inches D
• Standard & Approvals: UL Listed, RoHS Compliant, CSA
• Terminal Type: Side Wired
• NEMA Rating: NEMA 6-20R
