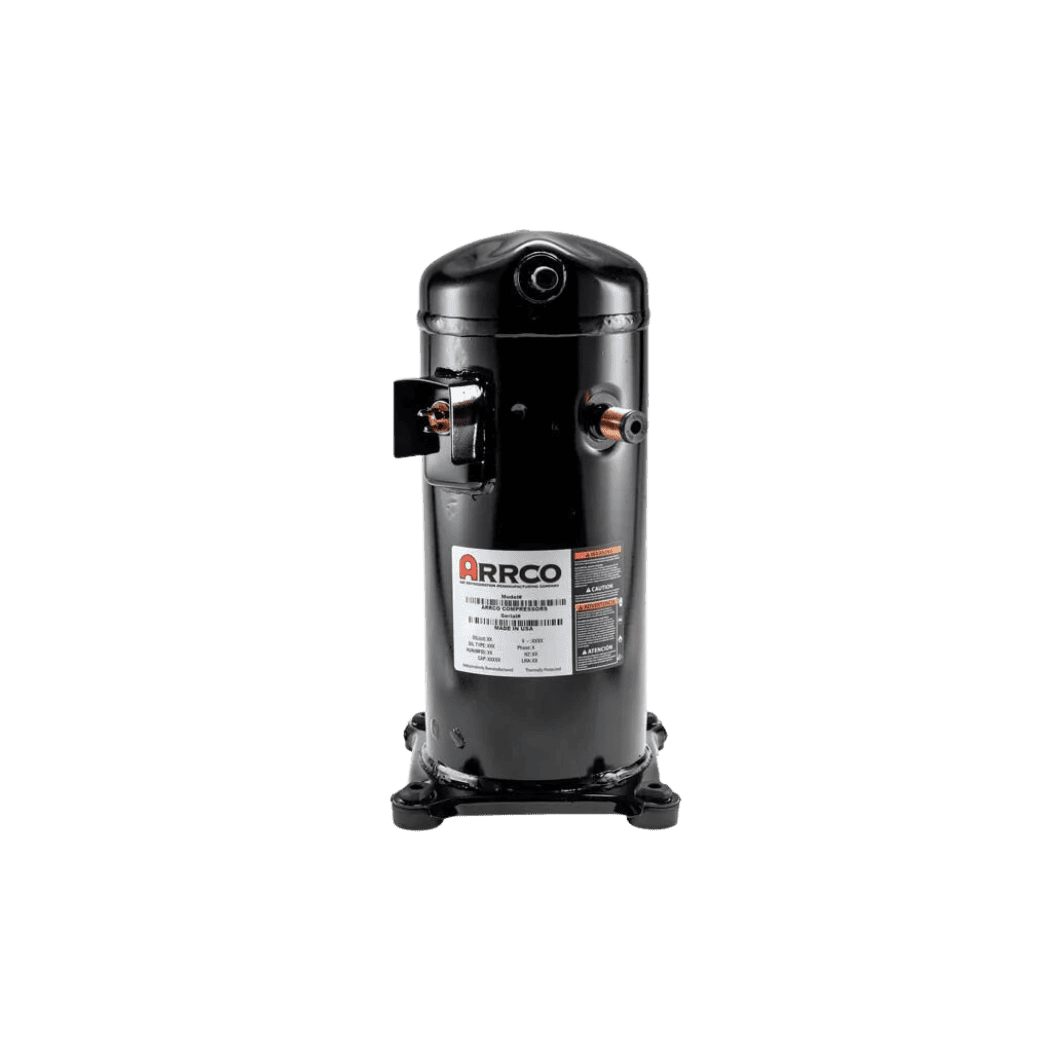

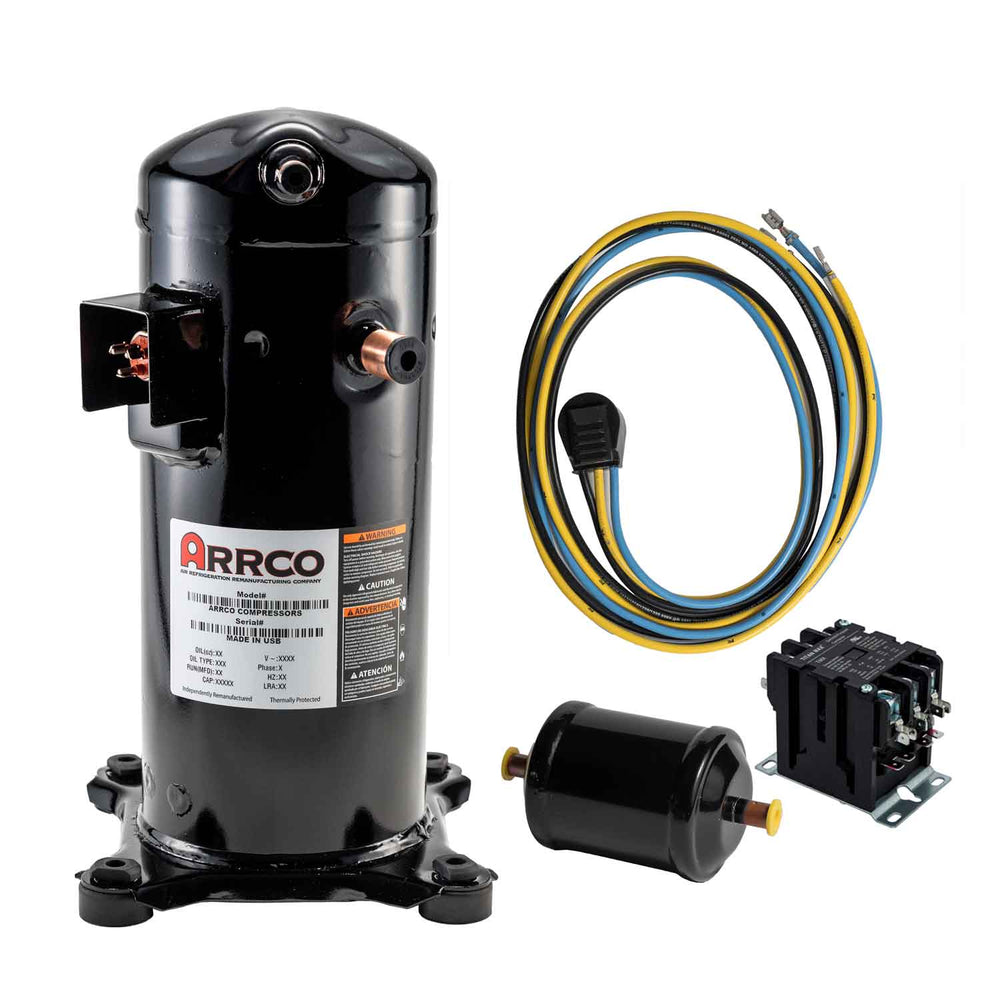

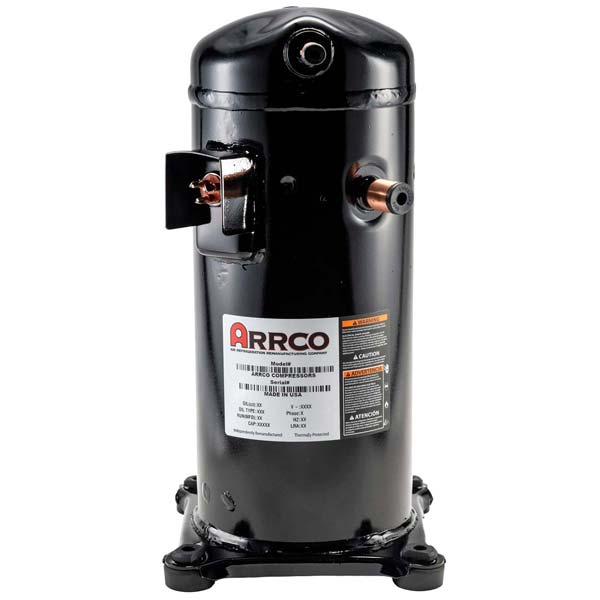

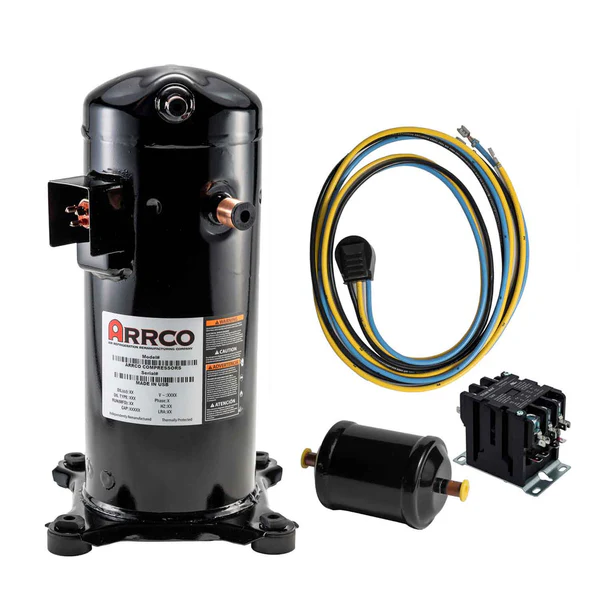

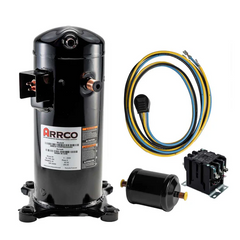

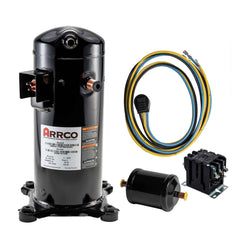

ARRCO AR54KP-HF5 Compressor 54,000 BTU/hr Replacement MPN

Product Description

The ARRCO AR54KP-HF5 is a compressor designed for air conditioning and HVAC systems. It operates on 200/230 voltage with a frequency of 60 Hz and features a three-phase power supply. The unit includes a 1/2 inch discharge fitting and a 7/8 inch suction fitting. It is compatible with R-22, R-407C, and R410A refrigerants while using POE oil for lubrication. The compressor has a cooling capacity of 54,000 BTU per hour.

• Nominal cooling capacity of 54,000 BTU/hr.
• Operates on 200/230 VAC, 60 Hz, three-phase power.
• Features 1/2 inch discharge and 7/8 inch suction fittings.

Product Highlights

This compressor is suitable for various HVAC applications, ensuring efficient cooling performance. Ideal for both residential and commercial systems.

Product Information

Standard Information

• Brand: ARRCO
• MPN: AR54KP-HF5

Technical Specifications

• Application: Air Conditioning, HVAC System
• BTUs: 54,000
• Cooling Capacity: 54,000 BTU/h (5 tons)
• Refrigerant: R22, R407C, R410A
• Hertz: 60
• Phase: 3
• Voltage: 200/230
• Oil: POE oil
• Discharge Fitting: 1/2 inch
• Suction Fitting: 7/8 inch
• Overall Length: 9.56 inches
• Overall Height: 16.94 inches
• Net Weight: 71.6 lbs
• LRA (Locked Rotor Amps): 110
