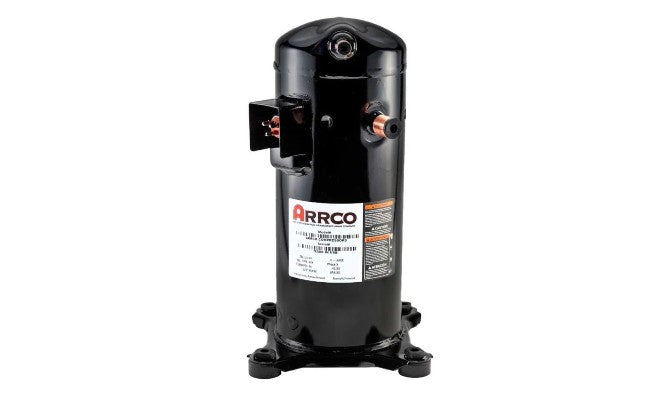

Arrco AR42KP-BFV Remanufactured Compressor with Kit 42,000 BTU/hr REPLACES Copeland ZR42KC-PFV ZR42K5-PFV ZR42K3-PFV

Product Description

The ARRCO AR42KP-BFV is a remanufactured compressor with kit, designed for R22/R407c refrigerants. It features a capacity of 42,000 BTU/hr and operates at 208-230V, 60 Hz. The compressor includes a 1/2" discharge fitting and a 7/8" suction fitting. It comes with poe oil, a capacitor, a filter drier, and a 5' long wiring harness. This compressor is suitable for air conditioning applications.

• Remanufactured compressor
• Includes installation kit
• Suitable for R22/R407c refrigerants

Product Highlights

This remanufactured compressor kit is designed as a drop-in replacement for Copeland ZR42KC-PFV, ZR42K5-PFV, ZR42K3-PFV models and includes all necessary components for installation.

Product Information

Standard Information

• Brand: ARRCO
• Manufacturer Part Number: AR42KP-BFV

Technical Specifications

• Refrigerant: R22/R407c etc.
• BTU/hr: 42,000
• Voltage: 208-230-1
• Frequency: 60 Hz
• Discharge Fitting: 1/2"
• Suction Fitting: 7/8"
• Includes: poe oil, capacitor, filter drier, and 5' long wiring harness
• Tons: 3 1/2
• Phase: Single
• Height: 16.50 in
• Weight: 72 Lbs
• Copeland: ZR42K_E-PFV
• Refrigerant Type: R-407C R-22
• Application: Air Conditioning
• Product Type: Compressor
• Capacity (BTU): 42000
• Volts: 208-230
• Length: 7.5"
• Width: 9.56"
• BTUs: 42000
• Oil: POE
• Discharge/Suction Temperature: 45/100 45/130
• RG./Liq (Fahrenheit): 65/85 65/115
• BTUs per hour: 48700 40400
• Watts: 2520 3750
• Current/Amps: 12.5 17.6
• Mounting Length/Width (in): 7.5
• Mounting Height (in): 16.5
• Overall Length/Width (in): 9.69
• Overall Height (in): 16.25
• Net Weight (Lbs): 75
• LRA (Locked Rotor Amps): 109
• MCC (Amps): 28.6
• Max Operating Current: 23.9
• Run Load Amps Contactor: 20.4
• Run Load Amps Breaker & Wire: 18.3
• Run Capacitor (MFD): 60
• Run Capacitor Voltage: 370
• Start Capacitor (MFD): 88
• Start Capacitor Voltage: 330
• Oil Charge: 42
• Oil Recharge: 38
• Discharge (in): 1/2 STUB
• Suction (in): 3/4 STUB
