Arrco AA57KP-HF5 Compressor 57000 BTU Air Conditioning ZP57K3E-TF5-130

Product Description

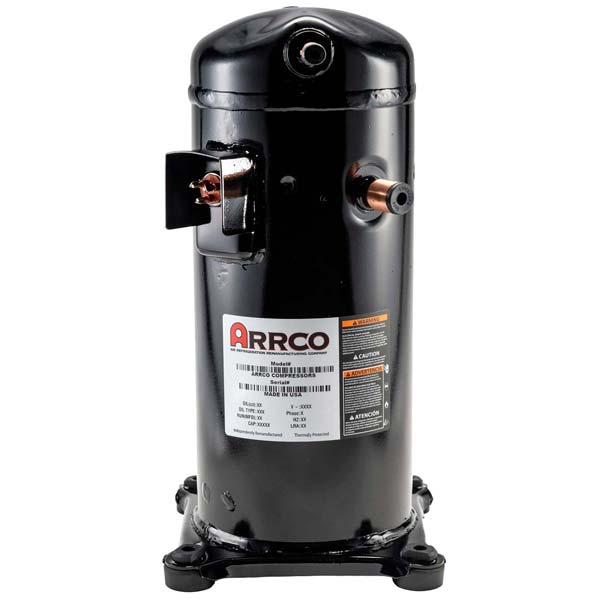

The ARRCO AA57KP-HF5 compressor is designed for air conditioning applications. It features a thermally protected motor and is made in the USA. This scroll compressor has a nominal capacity of 57000 BTU/Hour and utilizes R-410A refrigerant. It is designed to improve compressor durability.

• Improved compressor durability with electric hermetic motor.
• Tested by a certified Baker Motor Tester.
• Equipped with a filter drier for moisture and acid removal.

Product Highlights

The ARRCO AA57KP-HF5 compressor is ideal for air conditioning systems, ensuring efficient and reliable performance.

Product Information

Standard Information

• Brand: ARRCO
• Manufacturer Part Number: AA57KP-HF5
• Country of Origin: USA

Technical Specifications

• BTUs: 57000
• Refrigerant Type: R-410A
• Hertz: 60
• Phase: 3
• Voltage: 200/230
• Oil: POE
• Application: AIR CONDITIONING
• High Discharge/Suction Temperature: 45/130
• High - RG./Liq (Fahrenheit): 65/115
• High - BTUs per hour: 58000
• High - Watts: 5500
• High - Current/Amps: 16.6
• Low Discharge/Suction Temperature: 45/100
• Low - RG./Liq (Fahrenheit): 65/85
• Low - BTUs per hour: 71500
• Low - Watts: 3680
• Low - Current/Amps: 12.6
• Mounting Length/Width (in): 7.5
• Mounting Height (in): 18.16
• Overall Length/Width (in): 9.69
• Overall Height (in): 17.91
• Oil Charge: 56
• Oil Recharge: 52
• Discharge (in): 1/2 STUB
• Suction (in): 7/8 STUB
• LRA (Locked Rotor Amps): 155
• MCC (Amps): 32
• Max Operating Current: 25
• Run Load Amps Contactor: 17.85714286
• Run Load Amps Breaker & Wire: 16.02564103
• Run Capacitor (MFD): 0
• Run Capacitor Voltage: 0
• Start Capacitor (MFD): 0
• Start Capacitor Voltage: 0
• Brand: ARRCO
• Item: Scroll Compressor
• Nominal Capacity: 57000 BTU/Hour
• Voltage Rating: 208/230 Volt AC 60 Hertz 3-Phase
• Fitting Size: 7/8 Inch (Suction), 1/2 Inch (Discharge)
• Refrigerant: 410A
• Motor Type: Thermally Protected
